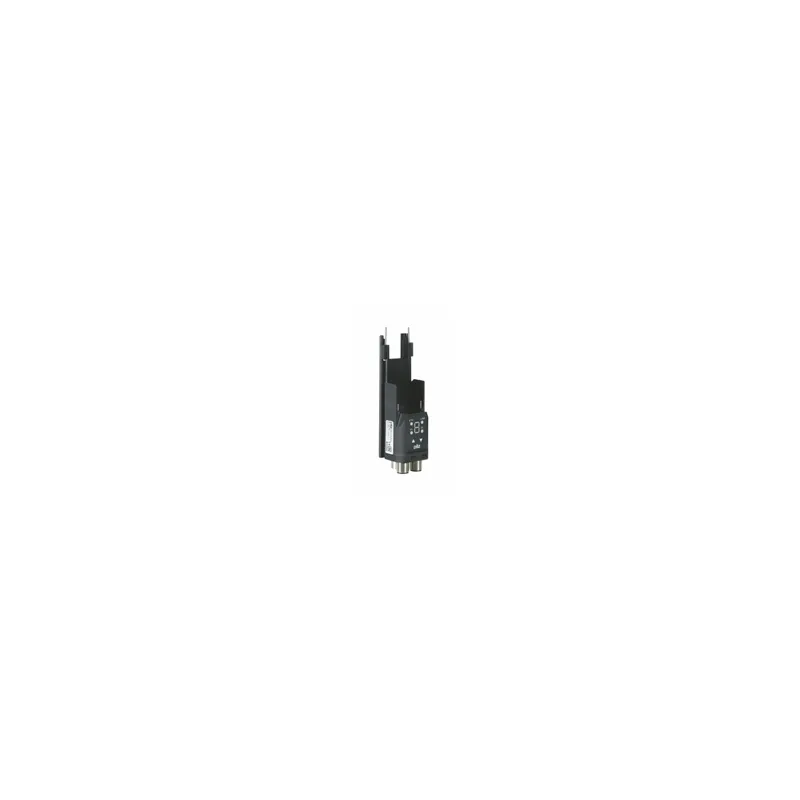

Pilz 631070
PSEN op Advanced Programming Adapter
- MPN
- 631070
- EAN
- 4046548077117
- Category
- Accessories PSENopt
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 631070?
Programming adapter for the PSEN opXX-A series. Using the PC Software all the functions (muting, blanking, cascading) of the light guards of the Advanced series can be set. The dongle can also be used to save configurations in the light guard and to transfer it to other light guards. 3x M12 connector adapter: 12- pin, muting: 5-pin, connection configuration: 4-pin Ethernet. Connection cables are not supplied with the device.
Specifications
General data
| Product ID (Pilz order number) | 631070 |
| Approval | C-TICK, CE |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
Environmental data
| Ambient temperature | 0 … 55 °C |
| Humidity rating | 95 % r. h. at 50 °C |
| Condensation permitted? | Not permitted |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 10g |
| Protection type standard | EN 60529 |
| Protection type, housing | IP65 |
Mechanical data
| Connector type 1 | 12-pin M12 male connector |
| Connector type 2 | 5-pin M12 male connector |
| Connector type 3 | 4-pin M12 ETH female connector |
| Housing material | NANYA PBT 1400 G3 |
| Height dimension | 40.7 mm |
| Width dimension | 35 mm |
| Depth dimension | 130.9 mm |
| Net weight | 93 g |
| Gross weight | 157 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272791 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548077117 |
| Volume | 0 dm3 |
| Harmonized System Code | 85235190 |
| Quantity per packaging unit | 1 |
