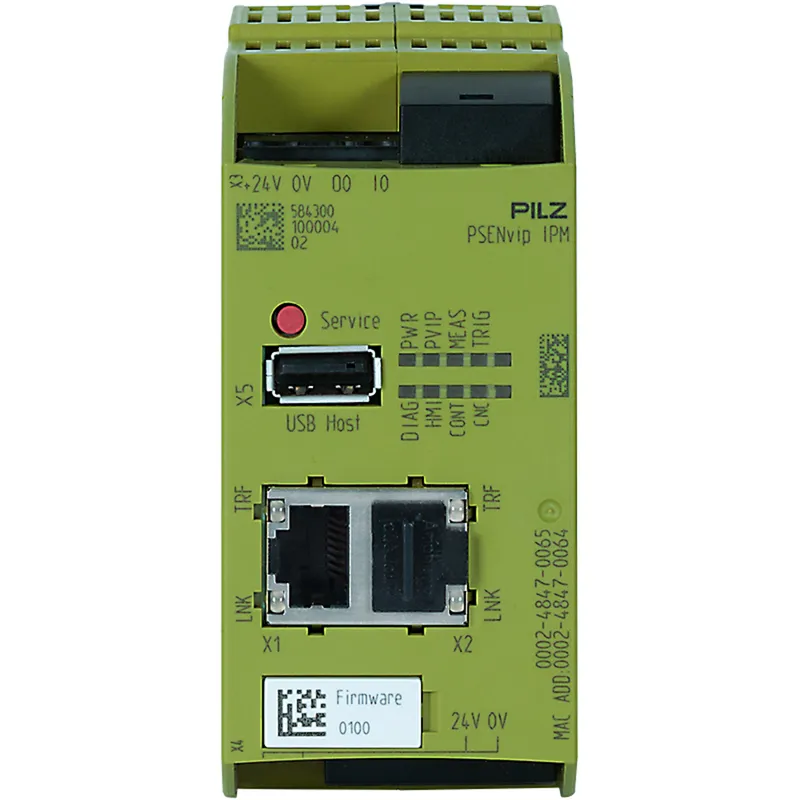

Pilz 584300
PSENvip IPM
- MPN
- 584300
- EAN
- 4046548089844
- Category
- PSENvip
Price and lead time confirmed within 1 business day
Discontinued by Pilz — we can still source the original 584300 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 584300?
Add-on module for bending angle measurement for PSENvip2 systems, consisting of receiver (PSENvip R, PSENvip LR), transmitter (PSENvip E) and special module PSSu K FAU P
Specifications
General data
| Product ID (Pilz order number) | 584300 |
| Approval | CE, UKCA, cULus Listed |
| Application range | Standard |
| Lifecycle | End of life (Pilz is phasing this product out) |
Electrical data
| Purpose of U1 | Module supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 5.5 |
| Purpose of U2 | Periphery supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
Inputs
| Number of digital inputs | 1 |
| DC voltage at input | 24 V DC |
| Input type to EN 61131-2 | 3 |
Semiconductor outputs
| Number of semicond. outputs | 1 |
| Utilisation cat. to EN 60947-1 | DC-12 |
USB interface
| Number of USB host interfaces | 1 |
Ethernet interface
| Ethernet IP addr. factory set | 192.168.0.13 |
| Connector type ETHERNET int. | RJ45 |
| Ethernet transmission rate | 10 MBit/s, 100 MBit/s |
| Number of Ethernet interfaces | 2 |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2, EN 61000-4-4, EN 61000-4-5, EN 61000-6-4, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 (not evaluated by UL) |
Potential separation
| Potential isolation 1 between | Periphery and module supply |
| Type of potential isolation 1 | Basic insulation |
Mechanical data
| Mounting position | vertical |
| DIN-rail dimensions | 35 x 7.5 EN 50022 |
| Housing material lower section | PC |
| Housing material front plate | PC |
| Connection terminal | Screw terminal, Spring-loaded terminal |
| Terminal style | plug-in |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 96 mm |
| Width dimension | 45 mm |
| Depth dimension | 111.5 mm |
| Net weight | 170 g |
| Gross weight | 180 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27319090 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC004672 |
| GTIN | 4046548089844 |
| Volume | 0.617 dm3 |
| Harmonized System Code | 85176200 |
| Quantity per packaging unit | 1 |
