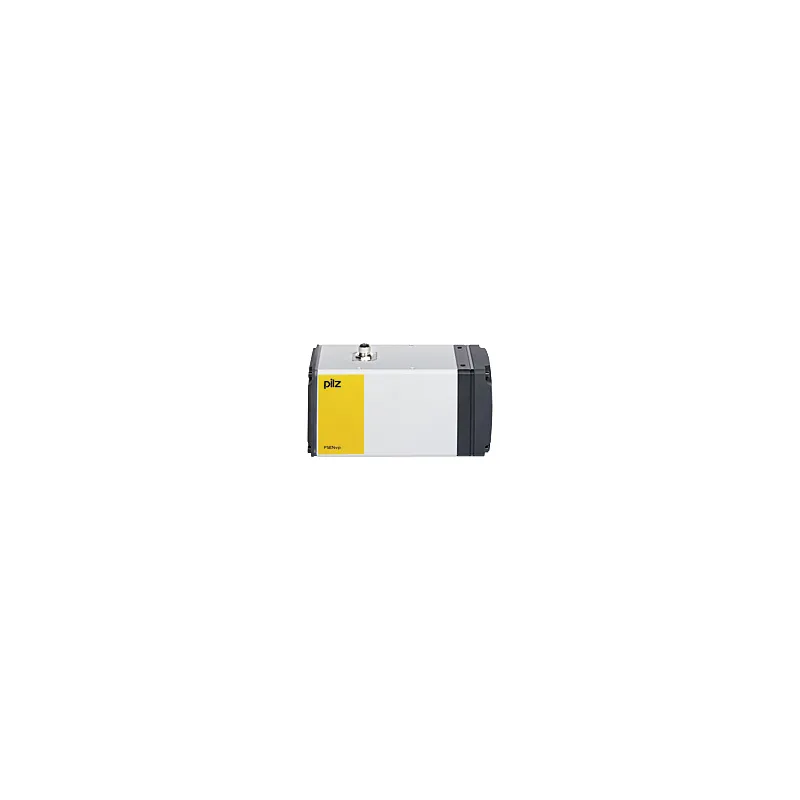

Pilz 584100
PSENvip R
- MPN
- 584100
- EAN
- 4046548078534
- Category
- PSENvip
Price and lead time confirmed within 1 business day
Discontinued by Pilz — we can still source the original 584100 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 584100?
PSENvip receiver.
Specifications
General data
| Product ID (Pilz order number) | 584100 |
| Approval | UL Listed, CE, UKCA, TIIS, TÜV |
| ESPE type | 4 |
| Sensor principle | optical |
| Max. width of the detect. zone | 44 mm |
| Resolution protection type | Finger |
| Operating range (m) | 0.1 m |
| Lifecycle | End of life (Pilz is phasing this product out) |
Electrical data
| Supply voltage (V) | 5 V |
| Type of supply voltage U1 | DC |
| Power consumption DC | 0.8 W |
Optical data
| Used wavelength range | 510 - 550 nm |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 61496-1, EN 61000-6-4 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 10g |
| Protection type standard | EN 60529 |
| Protection type, housing | IP54 |
| UL enclosure type | 1 |
Times
| Reaction time | 4.65 ms |
Mechanical data
| Connection type | M12 4-pin |
| Cable lines | Cable sets |
| Max. cable length | 20 m |
| Housing material upper part | Aluminium |
| Height dimension | 90 mm |
| Width dimension | 95 mm |
| Depth dimension | 192 mm |
| Net weight | 2410 g |
| Gross weight | 2680 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1% |
| CAS No. | 7439-92-1, 1317-36-8 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27310101 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC004672 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548078534 |
| Volume | 12.150 dm3 |
| Harmonized System Code | 85258900 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
584100: frequently asked questions
Can I still buy the 584100 now that it is discontinued?
Yes. Pilz has discontinued the 584100, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 584100 be shipped?
584100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 584100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 584100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 584100, subject to availability and destination.
