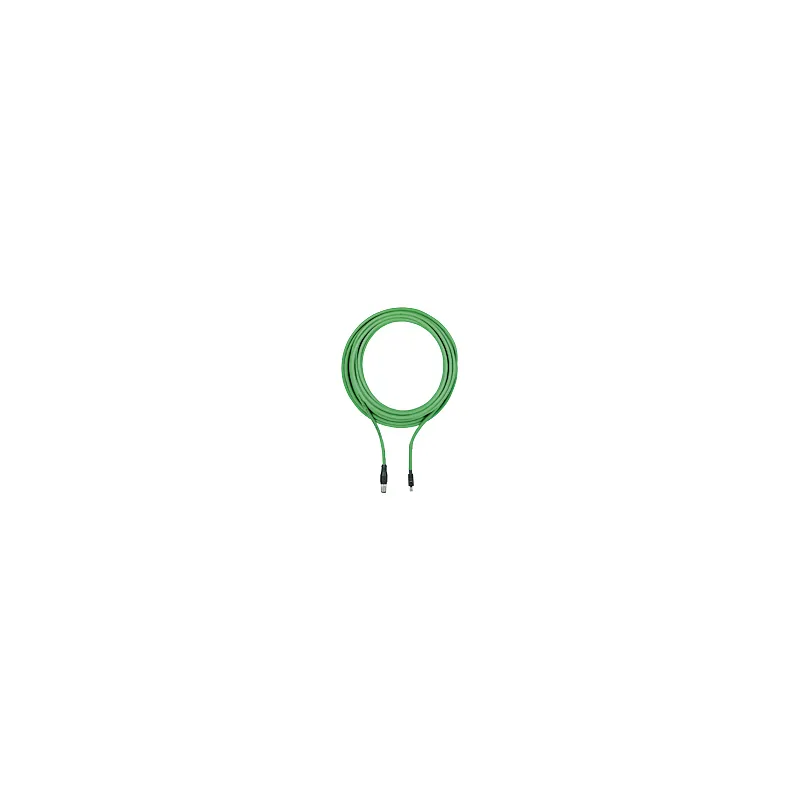

Pilz 584571
PSEN cable M12-4sm MIOsm MOVE, 15m
- MPN
- 584571
- EAN
- 4046548081350
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 584571?
Connection cable, PUR, green RAL6018, Ethernet Cat5e, shielded, suitable for drag chains, 4-pin, connector straight M12 D-coded, onconnector straight Industrial Mini I/O, cable length: 15m
Specifications
General data
| Product ID (Pilz order number) | 584571 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 0.5 |
| Typ. conductor resistance K1 | 120 Ohm/km |
| Typ. characteristic imped. K1 | 100 Ohm |
| Specific conductor capacity K1 | 52pF/m |
Environmental data
| Ambient temperature | -20 … 60 °C |
Mechanical data
| Connector type 1 | 4-pin M12 male connector |
| Shape of connector type 1 | straight |
| Connector type 2 | 8-pin Mini-IO male connector |
| Shape of connector type 2 | straight |
| Matl threaded ring conn 1 | CuZn nickel-plated |
| Contact surfaces material 1 | CuZn, gold-plated |
| Contact surfaces material 2 | Au |
| Cable material K1 | Cu |
| Insulation material cable K1 | PE |
| Length cable | 15 |
| Material shield surface K1 | Sn |
| Category of cable K1 | Cat5 |
| Colour cable insulation 1 | Green, similar to RAL6018 |
| Material of cable insulation 1 | PUR |
| Trailing capability of cable 1 | yes |
| Conductor cross section | 0.34 |
| Cable cross section AWG K1 | 22 |
| Stranding K1 | Star quad |
| Shielding K1 | yes |
| Type of shielding K1 | Wire mesh |
| Number of conductors | 4 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | UL-Style 20549, UL 758, FT1 |
| Net weight | 950 g |
| Gross weight | 970 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | 0 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060311 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000054 |
| ETIM Reference Feature | EC003599 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548081350 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
584571: frequently asked questions
When can 584571 be shipped?
584571 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 584571 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 584571 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 584571, subject to availability and destination.
