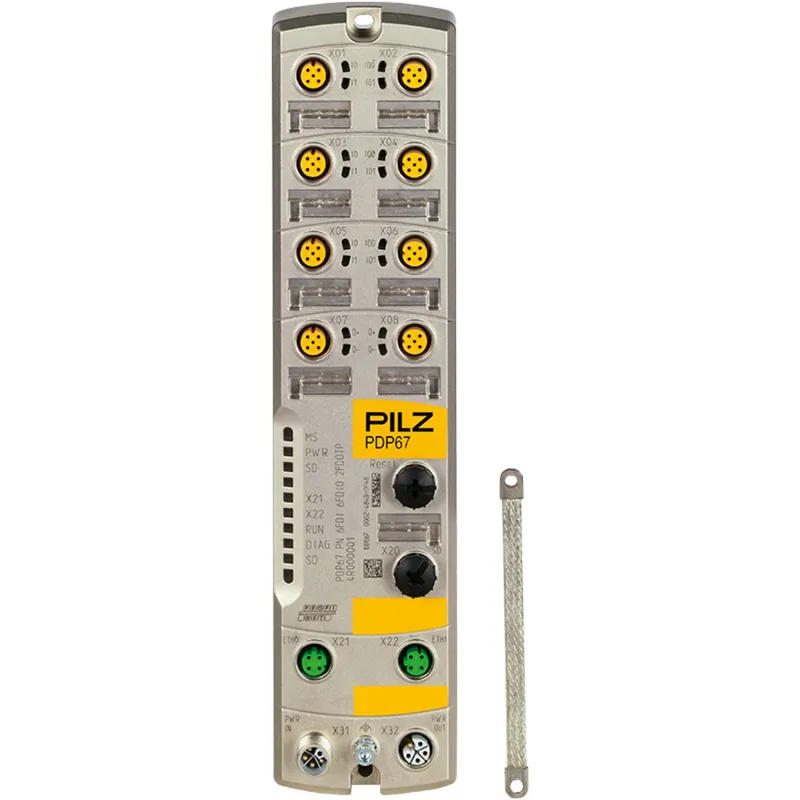

Pilz 4R000001
PDP67 PN 6FDI 6FDIO 2FDOTP
- MPN
- 4R000001
- EAN
- 4046548088083
- Category
- Profinet / Profisafe modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pilz 4R000001?
PDP67, device, protection type IP67, control system I/O, failsafe and standard, 2 M12 ports, PROFINET IO DEVICE with PROFIsafe, Conformance Class C (CC-C), PROFIenergy, IRT/RT, data set I&M 0 and 1-4, digital inputs and outputs, 6/12 inputs, test pulse outputs with 24 V DC 0.25 A, 6/0 outputs, semiconductor, 0.5 A, single-pole, positive-switching, short circuit proof, protected against overload, 2 outputs,semiconductor, 2 A, dual-pole, switches to 24 V (O0+) And 0 V (O0-), short circuit proof, protectedagainst overload, supply voltage, infeed device supply 24 V DC 16 A, infeed load supply 24 V DC 16 A, potential isolation, connection functionalearth.
Specifications
General data
| Product ID (Pilz order number) | 4R000001 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Application range | Failsafe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Device supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 480 |
| Potential isolation U1 | Yes |
| Purpose of U2 | Load supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
| Potential isolation U2 | Yes |
Inputs
| Number of digital inputs | 6, 12 |
| Signal level at input at 0 | -3 - +5 VDC |
| DC voltage at input | 24 V DC |
| Input type to EN 61131-2 | 1, 3 |
| Software filter time | 0 ms ... 10 ms |
| Potential isolation input | Yes |
| Voltage supply to inputs | Device Supply |
Semiconductor outputs
| Supply to 1pole outputs | Device Supply |
| Potential isolation of S/C O | Yes |
| S/C output short circuit proof | Yes |
| Perm. load 1pole Output | Resistive, Inductive, Capacitive |
Semiconductor outputs 2-pole
| Number 2-pin SC outputs | 2 |
| Supply to 2pole outputs | Load supply |
| SC outp. 2p. short circ.-proof | YES |
Test clock outputs
| Number of test pulse outputs | 12 |
PROFINET interface
| PROFINET IO specification | V2.33 |
| PROFINET conformance classes | C |
| PROFIsafe version | V2.6 |
| Settable trans.rate PROFINET | 100 MBit/s |
| Trans. rate setting PROFINET | Automatic |
| PROFINET certification | PNO |
| PROFINET manufacturer ID | 092Fh |
| Connector type PROFINET i/f | M12 |
| PROFINET type | IO device |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -30 … 70 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Briefly |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 61131-2 (Zone B) |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 200 m/s² |
| Clearance & creepage dist. to | EN 61131-2, UL/IEC 61010-2-201 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP67 |
| UL enclosure type | type 1 |
Potential separation
| Potential isolation 1 between | Load supply and device supply |
| Type of potential isolation 1 | Functional insulation |
| Potential isolation 2 between | Ethernet and device supply |
| Type of potential isolation 2 | Functional insulation |
| Potential isolation 3 between | Ethernet and load supply |
| Type of potential isolation 3 | Functional insulation |
Mechanical data
| Housing material | GD-ZnAl4Cu1 |
| Connection terminal | M12 |
| Terminal style | screw interlocked |
| Height dimension | 257.8 mm |
| Width dimension | 61.3 mm |
| Depth dimension | 34.5 mm |
| Net weight | 980 g |
| Gross weight | 1000 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| REACh included substances | Lead |
| CAS No. | 7439-92-1 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242604 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001599 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548088083 |
| Volume | 0.658 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
No matching specifications
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (8)
- Certificate (UL) UL-CA-2203254-2
- Certificate (PNO) Z20272
- Self Declaration (CQC) CCC_Declaration-of-exemption
- Certificate (EAC) RU-C-DE-HB-B-03001-23
- Certificate (PNO) Z12939
- Type examination certificate (TÜV) M6A-020132-0299-R00
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
