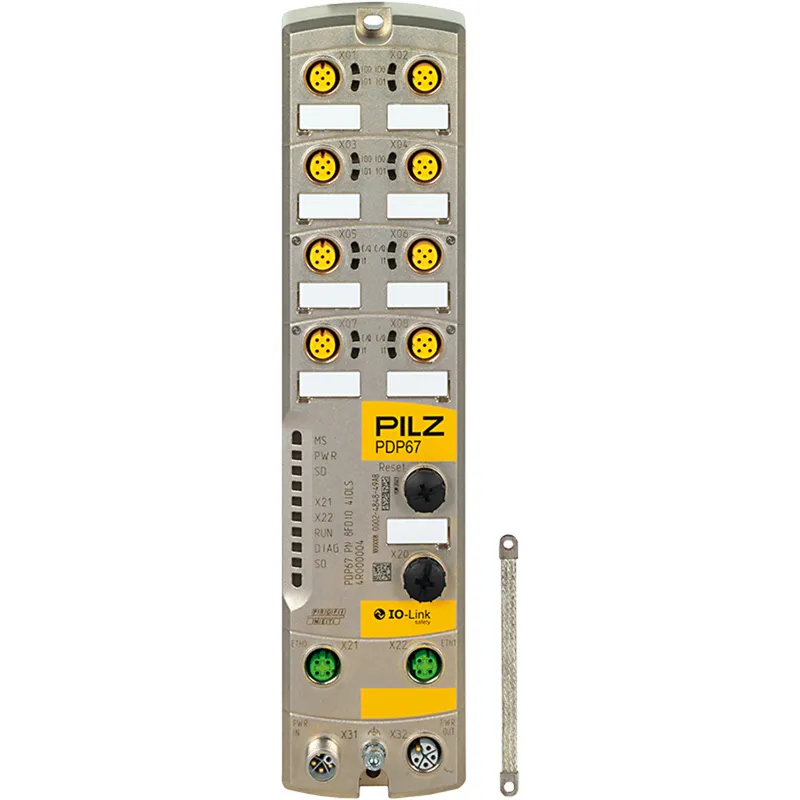

Pilz 4R000004
PDP67 PN 8FDIO 4IOLS
- MPN
- 4R000004
- EAN
- 4046548104806
- Category
- Profinet / Profisafe modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pilz 4R000004?
Decentralised field device for failsafe and standard applications, protection type IP67/IP69K, M12 female connector, PROFINET IO DEVICE with PROFIsafe, Conformance Class C (CC-C), PROFIenergy, IRT/RT, data set I&M 0 and 1-4, Shared Device, MRP, IO-Link Safety Master with 4 ports (V1.1.3), max. 8 configurable safe digital inputs/outputs, test pulse outputs with 24 VDC 0.25 A, semiconductor output 0.5 A, single- pole, positive-switching, short circuit-proof, overload-proof, feed Device Supply 24 VDC 16 A, feed Load Supply 24 VDC 16A, potential isolation, functional earth connection
Specifications
General data
| Product ID (Pilz order number) | 4R000004 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Application range | Fail-safe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Device Supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 480 |
| Purpose of U2 | Load Supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
IO-Link-Port (C/Q)
| IOL port of ClassB possible? | nein |
| Pot. isol. bw. port & port | nein |
| IO-Link revision | V1.1.5 |
| IOL port communication speed | COM1/COM2/COM3 |
| Input current in DI mode | 2,5 mA/5 mA (umschaltbar) |
| O in DO mode short circ. proof | ja |
| L+ short circuit proof | ja |
Inputs
| Number of digital inputs | 8 |
| Signal level at input at 0 | -3 - +5 V DC |
| DC voltage at input | 24 V DC |
| Input type to EN 61131-2 | 1, 3 |
| Software filter time | 0 ms ... 10 ms |
| Voltage supply to inputs | Device Supply |
Semiconductor outputs
| Supply to 1pole outputs | Device Supply |
| S/C output short circuit proof | ja |
| Perm. load 1pole Output | ohmsch, induktiv, kapazitiv |
Test clock outputs
| Number of test pulse outputs | 8 |
PROFINET interface
| PROFINET conformance classes | C |
| PROFIsafe version | V2.6 |
| Settable trans.rate PROFINET | 100 MBit/s |
| Trans. rate setting PROFINET | automatisch |
| PROFINET certification | PNO |
| PROFINET manufacturer ID | 092Fh |
| Connector type PROFINET i/f | M12 |
| PROFINET type | IO-Device |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -30 °C |
| Ambient temp. with UL | -30 - 50 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | P_FEUCHTE_WERT_93 % r. F. bei 40 °C |
| Condensation permitted? | kurzzeitig |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 61131-2 (Zone B) |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 200 m/s² |
| Clearance & creepage dist. to | EN 61131-2, UL/IEC 61010-2-201 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP67 (not evaluated by UL), IP69K (not evaluated by UL) |
Potential separation
| Potential isolation 1 between | Load Supply und Device Supply |
| Type of potential isolation 1 | Funktionsisolierung |
| Potential isolation 2 between | Ethernet und Device Supply |
| Type of potential isolation 2 | Funktionsisolierung |
| Potential isolation 3 between | Ethernet und Load Supply |
| Type of potential isolation 3 | Funktionsisolierung |
Mechanical data
| Housing material | GD-ZnAl4Cu1 |
| Connection terminal | M12 |
| Terminal style | schraubverriegelt |
| Height dimension | 257.8 mm |
| Width dimension | 61.3 mm |
| Depth dimension | 34.5 mm |
| Net weight | 988 g |
| Gross weight | 1003 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242204 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001419 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548104806 |
| Volume | 0.658 dm3 |
| Harmonized System Code | 85389091 |
No matching specifications
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (9)
- Certificate (PNO) Z20380
- Self Declaration (CQC) CCC_Declaration-of-exemption
- Certificate (EAC) RU-C-DE-HB-B-03001-23
- Type examination certificate (TÜV) M6A-020132-0299-R00
- Certificate (UL) UL-CA-2203254-2
- Certificate (PNO) Z13982
- UK Declaration of Conformity (UKCA)
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- Manufacturer declaration (IO-Link declaration)
