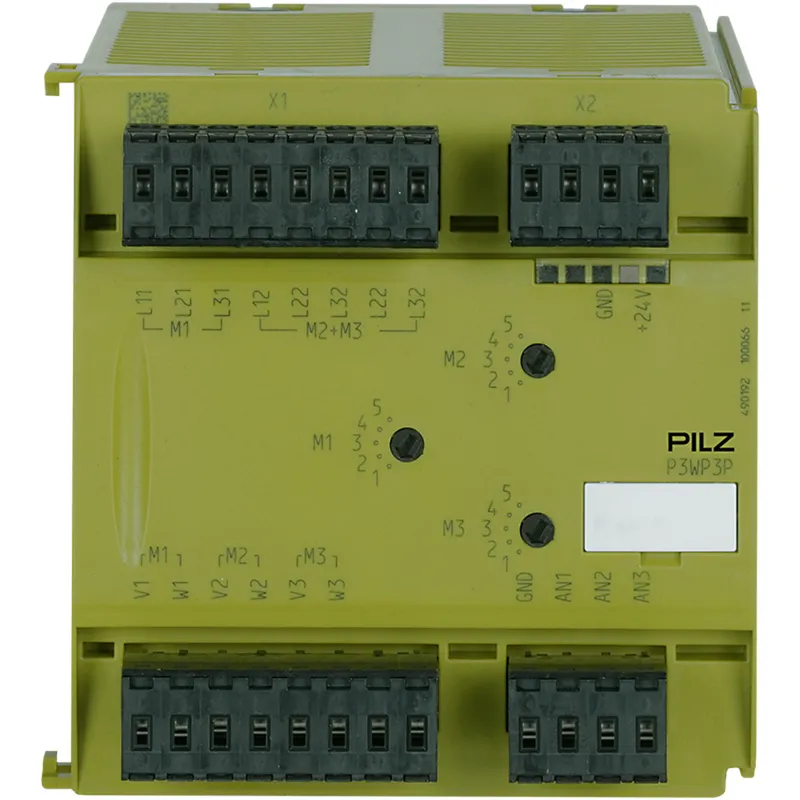

Pilz 490192
P3WP3P C/10A/230VAC
- MPN
- 490192
- EAN
- 4046548064230
- Category
- PMDsrange
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 490192?
True power converter, measuring equipment for rated & absorbed true power, up to 3 motors/generators, measuring voltage 230 V AC, UB = 24 V DC, width 90 mm.
Specifications
General data
| Product ID (Pilz order number) | 490192 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
| Power consumption DC | 2.5 W |
| Max. device circuit breaker | Max. conductor cross section |
Measuring circuit
| U meas. range analogue input | 230 V |
| I meas. range analogue input | 0 … 10 A |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature | 0 … 60 °C |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 61000-6-2, EN 61000-6-4 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Protection type, housing | IP20 |
Mechanical data
| Mounting position | any |
| Housing material lower section | PPO UL 94 V0 |
| Housing material front plate | ABS UL 94 V0 |
| Connection terminal | Spring-loaded terminal |
| Terminal style | plug-in |
| Flex. cond. c/s AWG info | 22 - 12 AWG |
| Height dimension | 90 mm |
| Width dimension | 94 mm |
| Depth dimension | 121 mm |
| Net weight | 410 g |
| Gross weight | 465 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371806 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001443 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548064230 |
| Volume | 1.296 dm3 |
| Harmonized System Code | 90303370 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
490192: frequently asked questions
When can 490192 be shipped?
490192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 490192 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 490192 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 490192, subject to availability and destination.
