Pilz 380304

PSEN opt M12 Transmitter adapter

MPN
380304
EAN
4046548055351
Category
Adapter
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 380304?

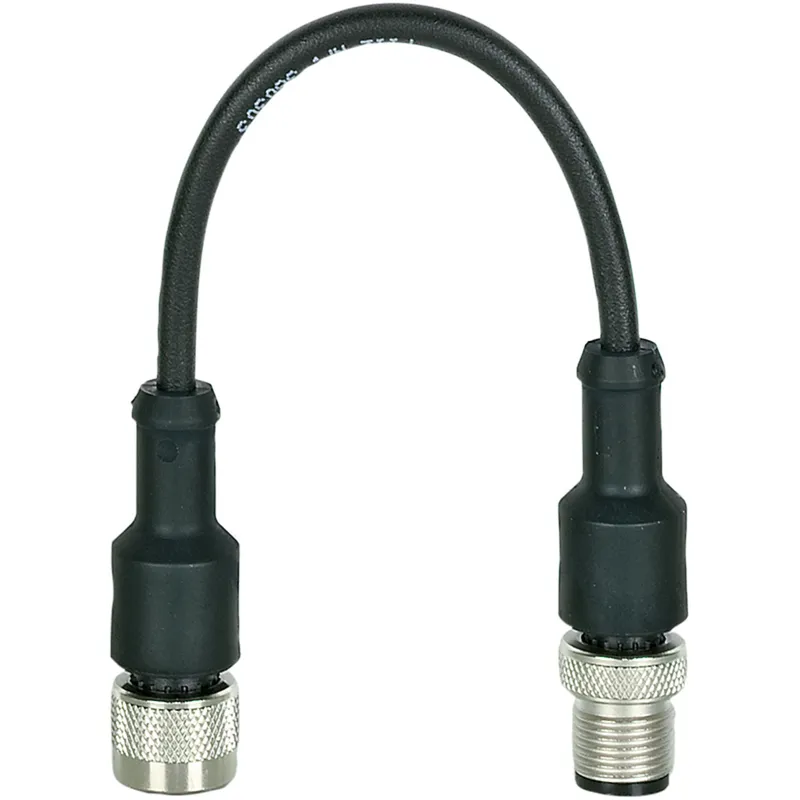

Cable, adapter, IP68, M12 female connector, black, straight, 4-pin, A- coded on M12 male connector, black, angled, 5-pin, A-coded, PUR, 0.1 m, 3× 0.34 mm², black, to connect a PSENopt M12 transmitter (light curtains) to PSS67 and PDP67.

Specifications

General data

Product ID (Pilz order number)380304
ApprovalCE, UKCA
LifecycleActive (current Pilz product)

Electrical data

Rated current4
Typ. conductor resistance K155 Ohm/km
Specific contact resistance K1>= 1E+14 Ohm*cm

Environmental data

Ambient temperature-5 … 70 °C
Pollution degree clear.&creep.3
Protection type, housingIP68

Mechanical data

Connector type 14-pin M12 female connector
Shape of connector type 1straight
Coding of M12 connector 1A coded
Connector type 25-pin M12 male connector
Shape of connector type 2straight
Coding of M12 connector 2A coded
Contact surfaces material 1Au
Contact surfaces material 2Au
Material of pinsCuZn
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PVC
Cable type K1LifY-11Y
Length cable0.1
Colour cable insulation 1Black
Housing colourBlack
Material of cable insulation 1PUR
Trailing capability of cable 1no
Max. outside diameter cable K14.7
Conductor cross section0.34
Cable cross section AWG K122
Shielding K1no
Number of conductors3
Halogen-freeyes
Oil resistanceresistant
Housing materialPUR
Net weight24 g
Gross weight39 g

Environment

WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27060313
ETIM VersionETIM-9.0
ETIM Reference GroupEG000026
ETIM Reference FeatureEC001855
UNSPSC 2526121603
GTIN4046548055351
Volume0 dm3
Harmonized System Code85444290
Quantity per packaging unit1
