Pilz 380301

PSEN cs adapter

MPN
380301
EAN
4046548055320
Category
Adapter
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 380301?

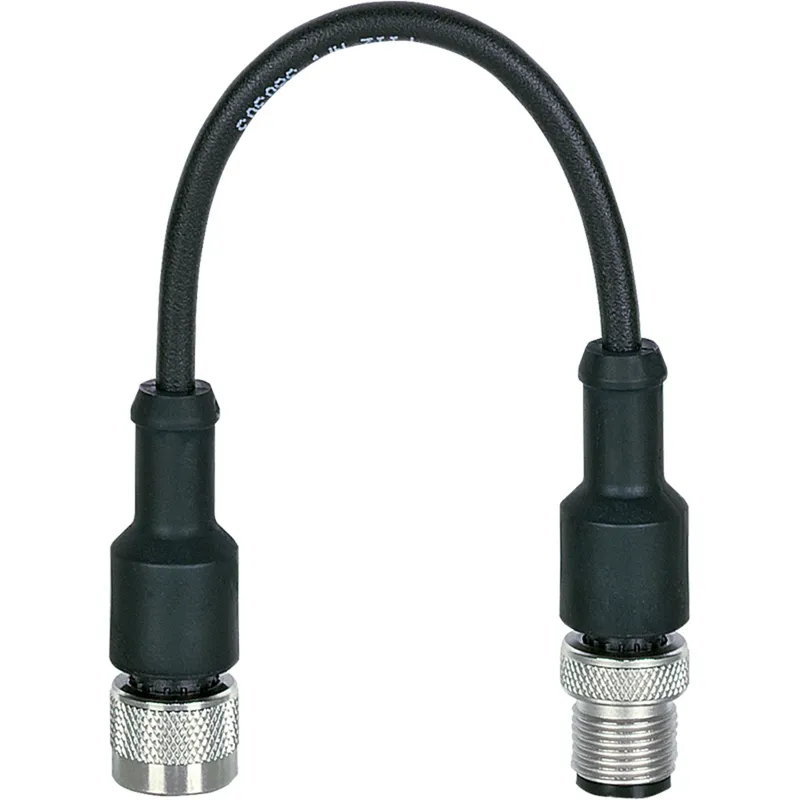

Cable, adapter, IP68, M12 female connector, black, straight, 8-pin, A- coded on M12 male connector, black, angled, 5-pin, A-coded, PUR, 0.1 m, 5× 0.25 mm², black, with shielding (wire mesh), to connect a PSENcode sensor (coded safety switch) to PSS67 and PDP67.

Specifications

General data

Product ID (Pilz order number)380301
ApprovalCE, UKCA
LifecycleActive (current Pilz product)

Electrical data

Rated current2

Environmental data

Ambient temperature-25 … 60 °C
Pollution degree clear.&creep.3
Protection type, housingIP68

Mechanical data

Connector type 18-pin M12 female connector
Shape of connector type 1straight
Coding of M12 connector 1A coded
Connector type 25-pin M12 male connector
Shape of connector type 2straight
Coding of M12 connector 2A coded
Contact surfaces material 1Au
Contact surfaces material 2Au
Material of pinsCuZn
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Length cable0.1
Material shield surface K1Sn
Colour cable insulation 1Black
Housing colourBlack
Material of cable insulation 1TPU 11YH1, PUR
Trailing capability of cable 1yes
Bend radius (when laying) K15 x Ø
Max. outside diameter cable K15.9
Conductor cross section0.25
Cable cross section AWG K124
Shielding K1yes
Type of shielding K1Wire mesh
Number of conductors7
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL FT2
Housing materialPUR
Net weight30 g
Gross weight39 g

Environment

WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27274192
ETIM VersionETIM-9.0
ETIM Reference GroupEG000026
ETIM Reference FeatureEC002594
UNSPSC 2539122205
GTIN4046548055320
Volume0 dm3
Harmonized System Code85444290
Quantity per packaging unit1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

380301: frequently asked questions

When can 380301 be shipped?

380301 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 380301 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 380301 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 380301, subject to availability and destination.
