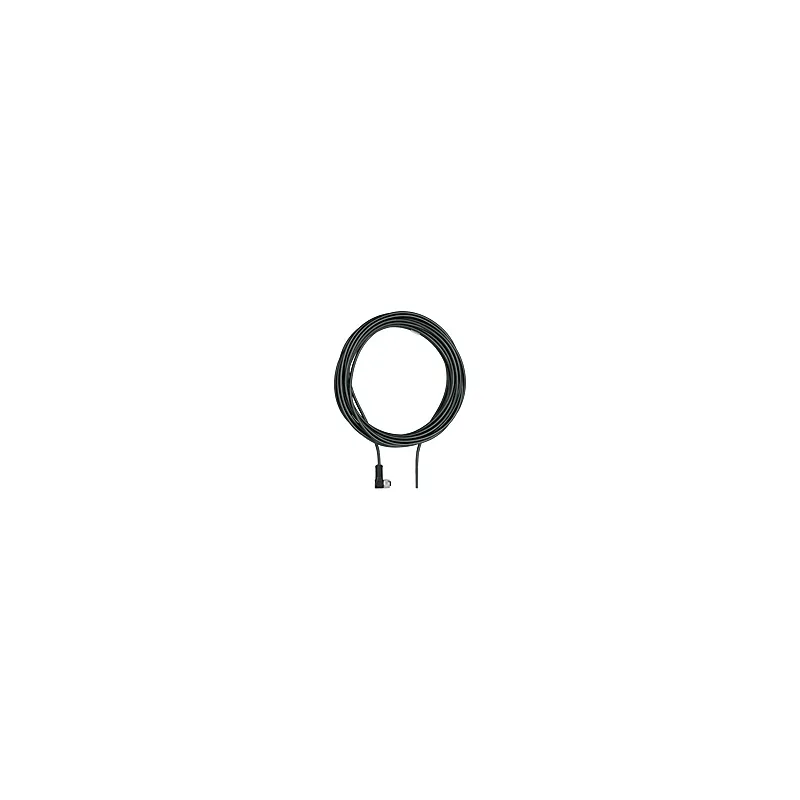

Pilz 380261
PSS67 Supply Cable IN af, B, 10m
- MPN
- 380261
- EAN
- 4046548054590
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 380261?
Connection cable, PUR, black RAL9005, suitable for drag chains, 5-pin, socket angled M12, on open line end, B-coded, cable length: 10m
Specifications
General data
| Product ID (Pilz order number) | 380261 |
| Approval | CE, UKCA, cULus Listed |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 4 |
| Specific contact resistance K1 | >= 1E+14 Ohm*cm |
| Specific conductor capacity K1 | 105pF/m |
Environmental data
| Ambient temperature | -5 … 70 °C |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP68 |
Mechanical data
| Connector type 1 | 5-pin M12 female connector |
| Shape of connector type 1 | angled |
| Contact surfaces material 1 | Au |
| Material of sockets | CuSn |
| Cable material K1 | Cu |
| Insulation material cable K1 | PVC |
| Cable type K1 | LiYY11Y |
| Length cable | 10 |
| Colour cable insulation 1 | Black, similar to RAL9005 |
| Housing colour | Black |
| Material of cable insulation 1 | PUR |
| Trailing capability of cable 1 | no |
| Max. outside diameter cable K1 | 5.9 |
| Conductor cross section | 0.5 |
| Cable cross section AWG K1 | 20 |
| Stranding K1 | 5 cores round PP splice yarn |
| Shielding K1 | no |
| Number of conductors | 5 |
| Approvals for connector 1 | UL94 V-0 |
| Housing material | PUR |
| Net weight | 541 g |
| Gross weight | 551 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060411 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000037 |
| ETIM Reference Feature | EC002599 |
| UNSPSC 25 | 26121636 |
| GTIN | 4046548054590 |
| Volume | 2.188 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
