Pepperl Fuchs VBA-4E3A-G20-ZEL/M1L-P6 – ASi Motor Roller Module
MPN: VBA-4E3A-G20-ZEL/M1L-P6 · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VBA-4E3A-G20-ZEL/M1L-P6 be shipped?
VBA-4E3A-G20-ZEL/M1L-P6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VBA-4E3A-G20-ZEL/M1L-P6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VBA-4E3A-G20-ZEL/M1L-P6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VBA-4E3A-G20-ZEL/M1L-P6, subject to availability and destination.
• A/B node with extended addressing possibility for up to 62 nodes
• Inputs for 3-wire sensors
• Outputs for DC roller motors (drum motors)
• Connection of motors and sensors via M8 connectors
• Configurable start/stop ramps
• Communication monitoring
• Power supply of the inputs and outputs from the external auxiliary voltage
• Function display for bus, external auxiliary voltage, in- and outputs
• Cable piercing method with gold plated contact pins

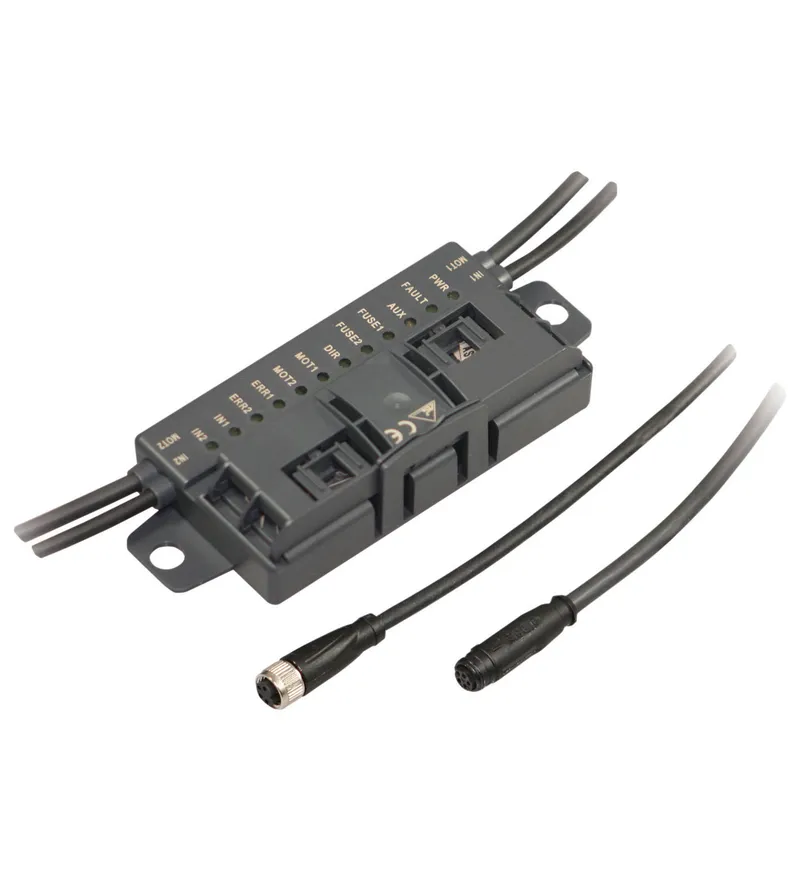

G20 MDR module with AS-Interface for 4 digital inputs and 2 connections for MDRs
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70135193 |
| Node type | A/B node |
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-7.A.E |
| IO code | 7 |
| ID code | A |
| ID1 code | 6 |
| ID2 code | E |
| UL File Number | E223772 "For use in NFPA 79 Applications only" |
| MTBF | 98 a |
| Compatible roller motors | Interroll EC310 Interroll EC5000 24 V AI (20 W / 35 W / 50 W) Rulmeca BL3 Itoh Denki PM500XK Itoh Denki PM500XC PULSEROLLER Senergy-IDC MTA MRD50 (A interface, 24 V to 40 W) WWL R-*-H + CE23XX Conveline RM50 Mambaroll Built-In Drive Roller 50 UniDrive ONE |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED FAULT | error display; LED red red: communication error or address is 0 red flashing: overload of sensor supply or external auxiliary voltage UAUX missing |
| LED ERR | Motor fault: 2 LED yellow |
| LED PWR | AS-Interface voltage; green LED green: voltage OK green flashing: address 0 or sensor supply overload or external auxiliary voltage UAUX missing |
| LED AUX | ext. auxiliary voltage UAUX; dual LED green/red green: voltage OK red: reverse voltage |
| LED IN | switching state (input); 2 LED yellow |
| LED FUSE | Motor power supply; 2 green LEDs |
| LED DIR | Motor rotation direction; yellow LED |
| LED MOT | Motor active; 2 yellow LEDs |
Electrical specifications
| Auxiliary voltage (output) | 18 ... 30 VDC PELV UAUX |
| Rated operating voltage | 26.5 ... 31.6 V from AS-Interface Ue |
| Rated operating current | ≤ 35 mA Ie |
Input
| Number/Type | 2 Inputs for 3-wire sensors (PNP), DC |
| Supply | from external auxiliary voltage UAUX |
| Current loading capacity | 500 mA , overload and short-circuit protected |
| Input current | ≤ 8 mA (limited internally) |
| Switching point | according to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA 1 (damped) ≥ 2.0 mA |
| Signal delay | < 1 ms (input/AS-Interface) |
| Input filter | 2 ms |
Output
| Number/Type | 2 outputs for DC roller motors (MOT1, MOT2) |
| Supply | from external auxiliary voltage UAUX |
| Current | 3.5 A continuous current , 5 A (<2 s) , max. 7.5 A (<0,3 s) per motor |
| Overload protection | Fuse 5 A, I2t = 53.7 A2s per motor |
| Velocity signal | 1.4 … 13 V at no-load Ri = 5.6 kΩ, RLOAD ≥ 35 kΩ Control via parameter P2:0 US |
| Rotation direction signal | Off / ≥ (UAUX - 1.0 V) at no-load Ri = 5.6 kΩ, RLOAD ≥ 5 kΩ AS-Interface data bit D2 = 0: UD = Off UD |
| Motor fault | Digital input NPN, U0 = 3.3 V, Ri = 52 kΩ 0 (no error) ≥ 40 µA 1 (error) ≤ 30 µA |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 62026-2:2013 |
Standard conformity
| Degree of protection | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -30 ... 85 °C (-22 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP67 according to EN 60529 |
| Connection | AS-Interface, AUX: Insulation piercing technology Yellow flat cable/black flat cable Inputs/outputs: M8 round plug connector in accordance with EN 61076-2-104 Inputs: LF004-GS1-A (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM004-Gx1-A or similar Outputs: NF005-SS1-B (5-pin, bushing contacts, snap lock, B-coded). Matching connector: NM005-Sx1-B or similar |
| Mass | 220 g |

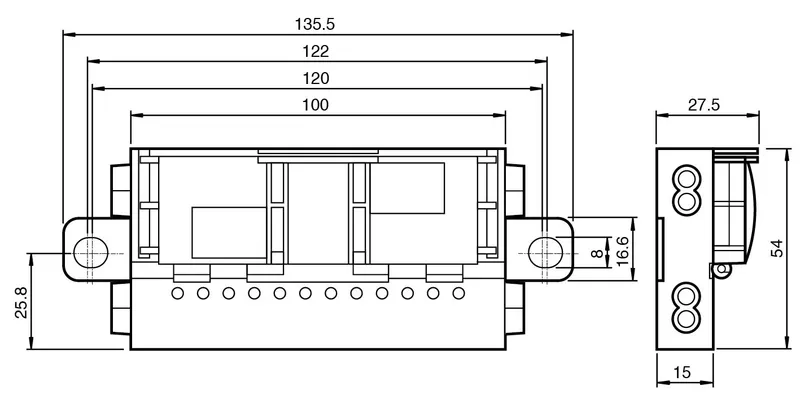

| Dimensions: Height | 27.5 mm |
| Dimensions: Width | 135.5 mm |
| Dimensions: Length | 54 mm |
| Mounting | 2 clips with ∅ 8 mm drill hole |
| Cable length | 0.35 m |
| Note | The flat cable routing is designed for 100 actuation cycles |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VBA-4E3A-G20-ZEL/M1L-P6 | |
| Manual VBA-4E3A-G20-ZEL/M1L-P2 and VBA-4E3A-G20-ZEL/M1L-P6 | PDF · 966 kB |
| Commissioning Instructions | PDF · 229 kB |
CAD & dimension drawings
| 3-D model (STEP) VBA-4E3A-G20-ZEL/M1L-P2 | STP · 1.7 MB |
| EPLAN macro VBA-4E3A-G20-ZEL/M1L-P6 | EDZ · 41 kB |
Certificates (3)
| CA US UL (CoC UL-US-L223772-13-82803102-1) | PDF · 179 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 112 kB |
| Worldwide AS-International Association AS-Interface (96402) | PDF · 126 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

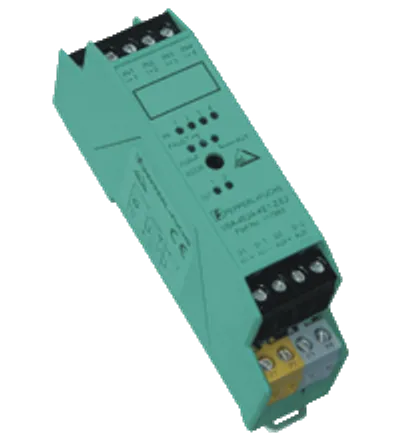

Available on requestAS-Interface sensor/actuator module VBA-4E2A-KE1-Z/E2MPN: VBA-4E2A-KE1-Z/E2 · Pepperl Fuchs
Price on request
Request a quote

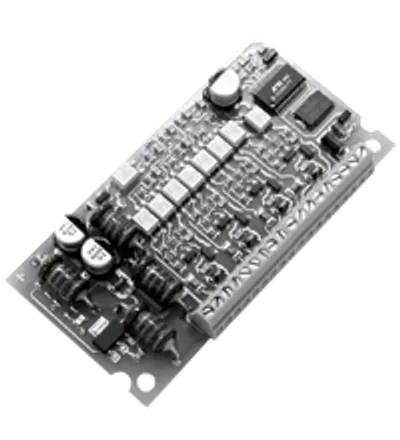

Available on requestAS-Interface printed circuit board VBA-4E3A-CB-E/E2-SMPN: VBA-4E3A-CB-E/E2-S · Pepperl Fuchs
Price on request
Request a quote
Available on requestAS-Interface sensor/actuator module VBA-4E3A-G12-ZAJ/EA2LMPN: VBA-4E3A-G12-ZAJ/EA2L · Pepperl Fuchs
Price on request
Request a quote

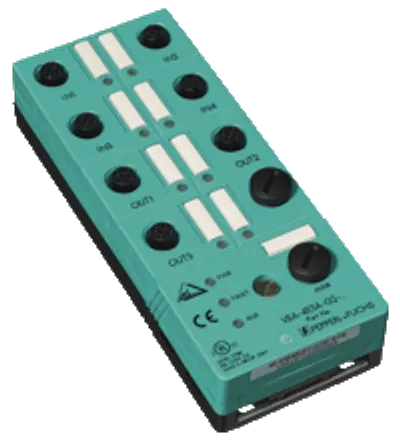

Available on requestAS-Interface sensor/actuator module VBA-4E3A-G2-ZA/EA2MPN: VBA-4E3A-G2-ZA/EA2 · Pepperl Fuchs
Price on request
Request a quote

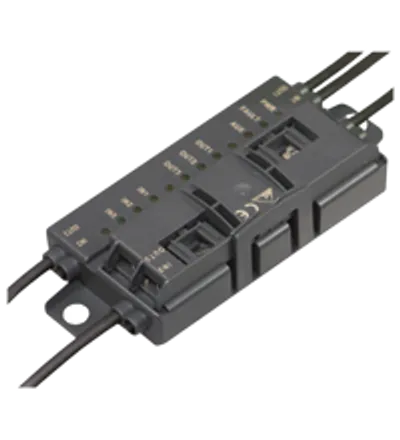

Available on requestASi I/O Module VBA-4E3A-G20-ZEL/E2L-P11MPN: VBA-4E3A-G20-ZEL/E2L-P11 · Pepperl Fuchs
