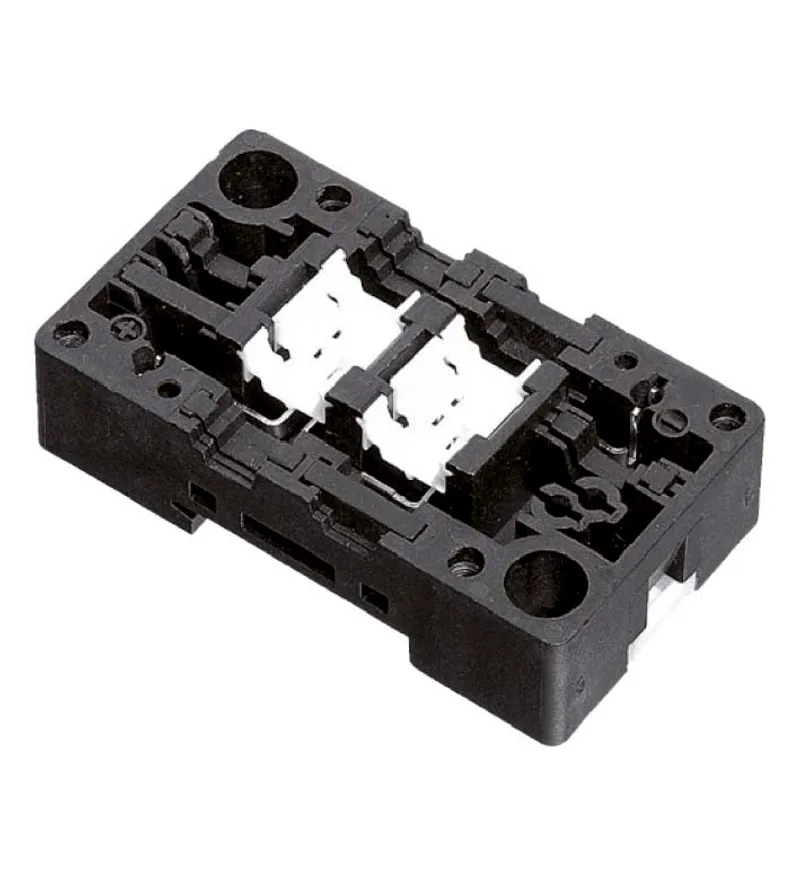

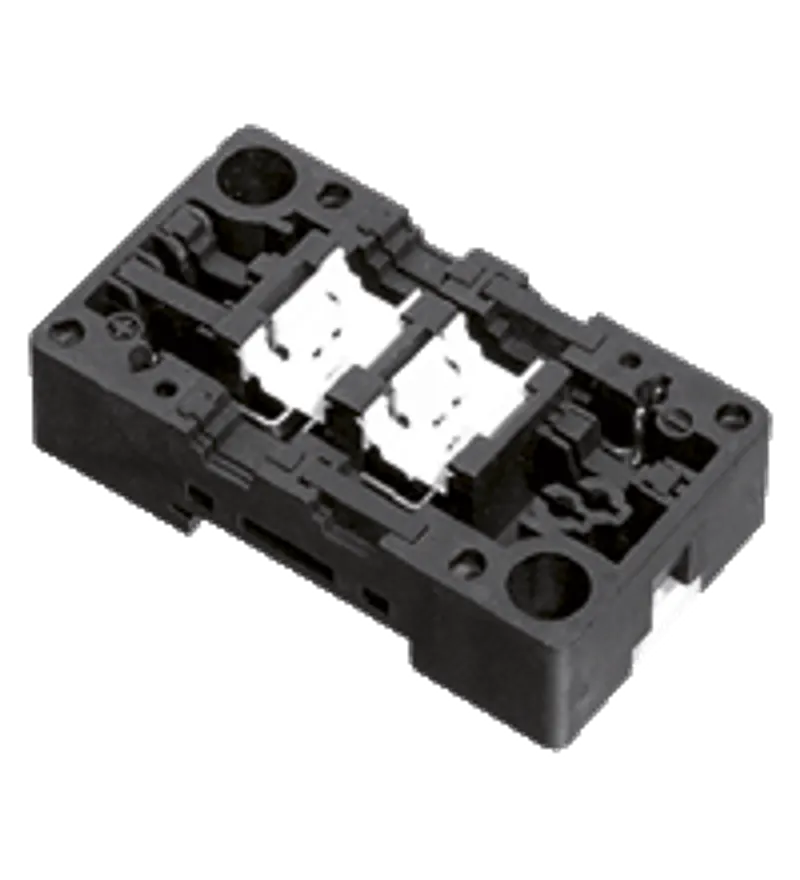

Pepperl Fuchs U-G1F
AS-Interface module mounting base
- MPN
- U-G1F
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs U-G1F?
AS-Interface module mounting base for connection to flat cable (AS-Interface)
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 099334 |
| UL File Number | E223772 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Current loading capacity | ≤ 2 A for max. 40 V |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP67 according to EN 60529 (only in connection with module or cover) |

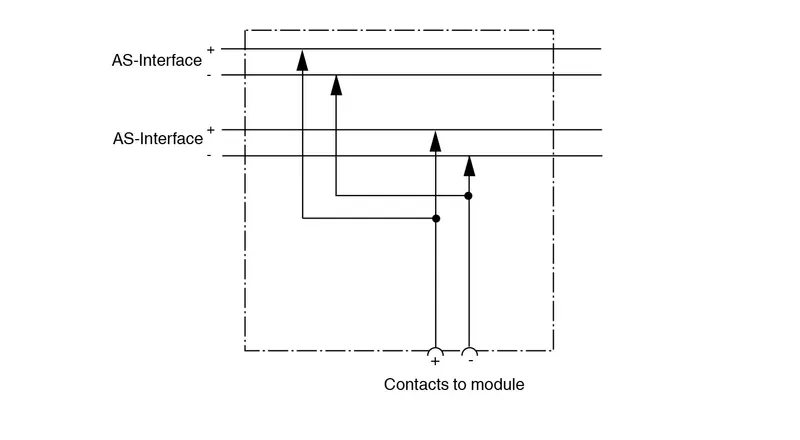

| Connection | 2 AS-Interface flat cables |
| Material: Housing | PBT |

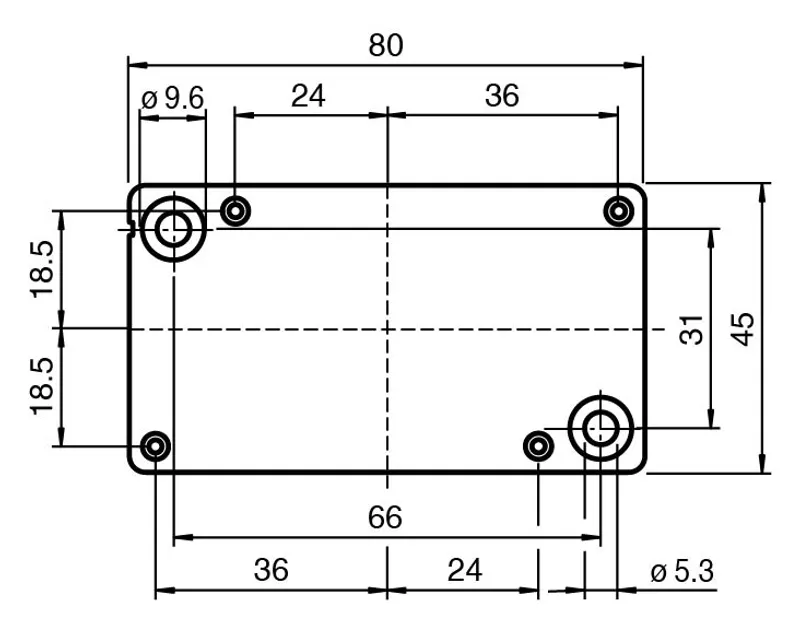

| Dimensions | about 80, 45, 20 mm (L, W, H) |
| Mounting | DIN rail or screw mounting |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
