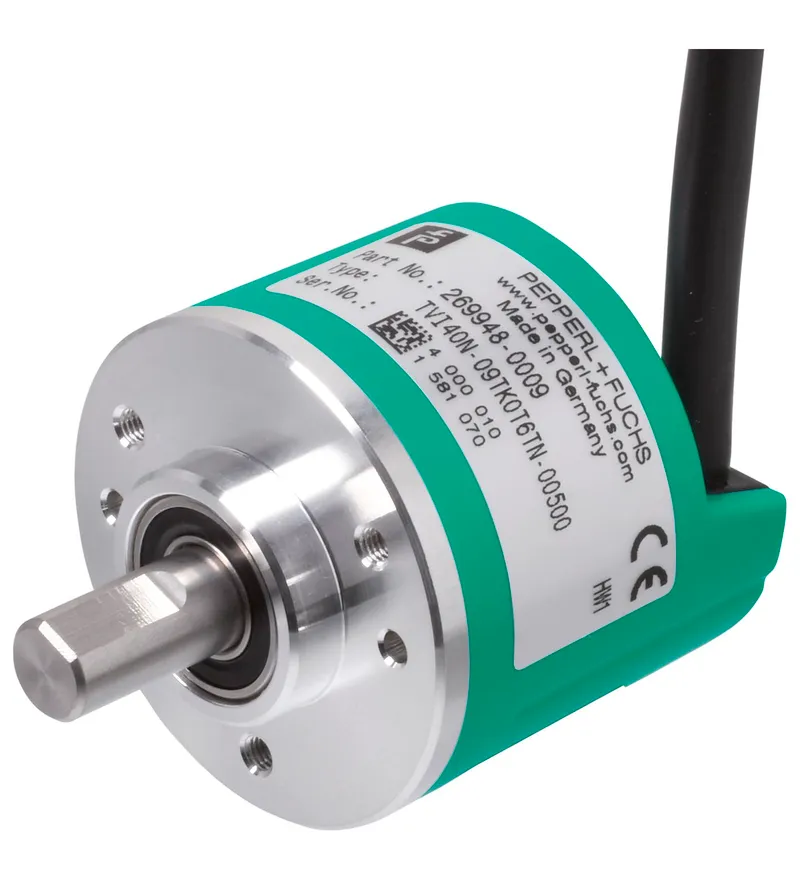

Pepperl Fuchs TVI40N
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Incremental Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can TVI40N be shipped?
TVI40N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TVI40N in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TVI40N and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TVI40N, subject to availability and destination.
Incremental rotary encoder. Compact design, Up to 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, RS 422 functionality at 5 V operation, Tangential cable outlet, Enclosure type: 40 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental or RS-422, incremental, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS-422, incremental. Detection type: photoelectric sampling. Pulse count: max. 1024. MTTFd: 140 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operating voltage: 4.75 ... 30 V DC 5 V DC for RS-422. No-load supply current: max. 55 mA. Output type: push-pull, incremental or RS-422, incremental. Voltage drop: ≤ 2.5 V (< 2.5 V). Load current: max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof). Output frequency: max. 100 kHz (max. 100 kHz). Rise time: 980 ns (225 ns). De-energized delay: 980 ns (225 ns). Cable: ∅6 mm, 8 x 0,128 mm2 connection with plug M12, 8-pin, L = 0.2 m. Degree of protection: DIN EN 60529, IP54. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source. Maximum permissible ambient temperaturemax. 60 °C (max. 140 °F): . Maximum permissible ambient temperature: max. 60 °C (max. 140 °F). Operating temperature: -10 ... 70 °C (14 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Material: . HousingPolycarbonateFlange3.1645 aluminumShaftStainless steel 1.4305 / AISI 303: . Housing: Polycarbonate. Flange: 3.1645 aluminum. Shaft: Stainless steel 1.4305 / AISI 303. Mass: approx. 180 g. Rotational speed: max. 6000 min -1. Moment of inertia: ≤ 4.3 gcm2. Starting torque: ≤ 0.2 Ncm. Shaft load: . Axialmax. 20 NRadialmax. 30 N: . Axial: max. 20 N. Radial: max. 30 N. Dimensions: . Length42 mmDiameter40 mm: . Length: 42 mm. Diameter: 40 mm. Life span: ≥ 2 x 109 revolutions (max. shaft loading)
Specifications
General specifications
| Detection type | photoelectric sampling |
| Pulse count | max. 1024 |
Functional safety related parameters
| MTTFd | 140 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC 5 V DC for RS-422 UB |
| No-load supply current | max. 55 mA I0 |
Output
| Output type | push-pull, incremental or RS-422, incremental |
| Voltage drop | ≤ 2.5 V (< 2.5 V) Ud |
| Load current | max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof) |
| Output frequency | max. 100 kHz (max. 100 kHz) |
| Rise time | 980 ns (225 ns) |
| De-energized delay | 980 ns (225 ns) toff |
Connection
| Cable | ∅6 mm, 8 x 0,128 mm2 connection with plug M12, 8-pin, L = 0.2 m |
Standard conformity
| Degree of protection | DIN EN 60529, IP54 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| Maximum permissible ambient temperaturemax. 60 °C (max. 140 °F) | Maximum permissible ambient temperature |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) |
Ambient conditions
| Operating temperature | -10 ... 70 °C (14 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Material | |
| HousingPolycarbonateFlange3.1645 aluminumShaftStainless steel 1.4305 / AISI 303 | Housing |
| Housing | Polycarbonate |
| Flange | 3.1645 aluminum |
| Shaft | Stainless steel 1.4305 / AISI 303 |
| Mass | approx. 180 g |
| Rotational speed | max. 6000 min -1 |
| Moment of inertia | ≤ 4.3 gcm2 |
| Starting torque | ≤ 0.2 Ncm |
| Shaft load | |
| Axialmax. 20 NRadialmax. 30 N | Axial |
| Axial | max. 20 N |
| Radial | max. 30 N |

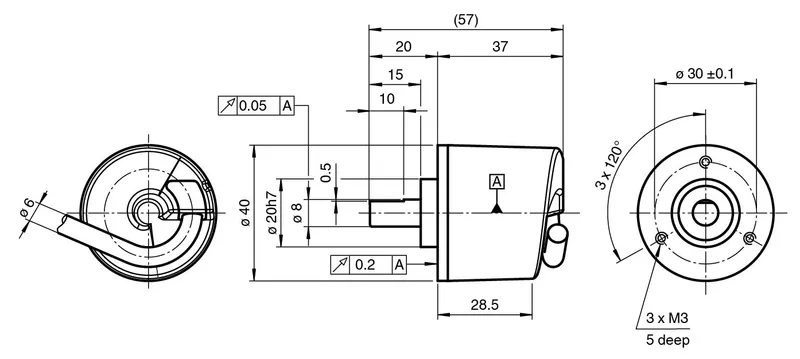

| Dimensions | |
| Length42 mmDiameter40 mm | Length |
| Length | 42 mm |
| Diameter | 40 mm |
| Life span | ≥ 2 x 109 revolutions (max. shaft loading) |
