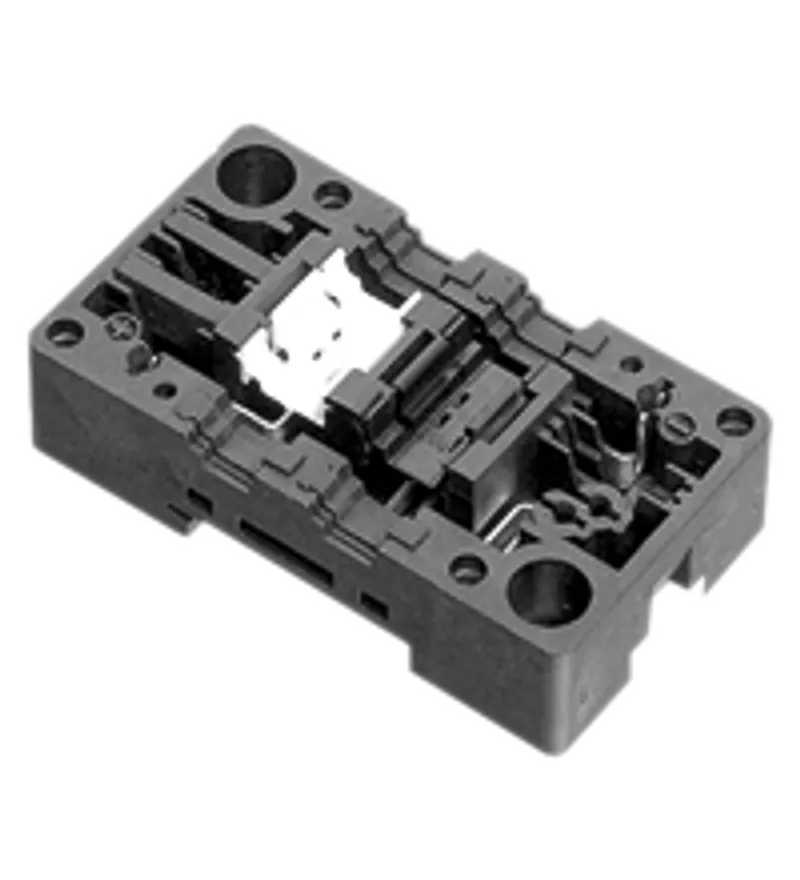

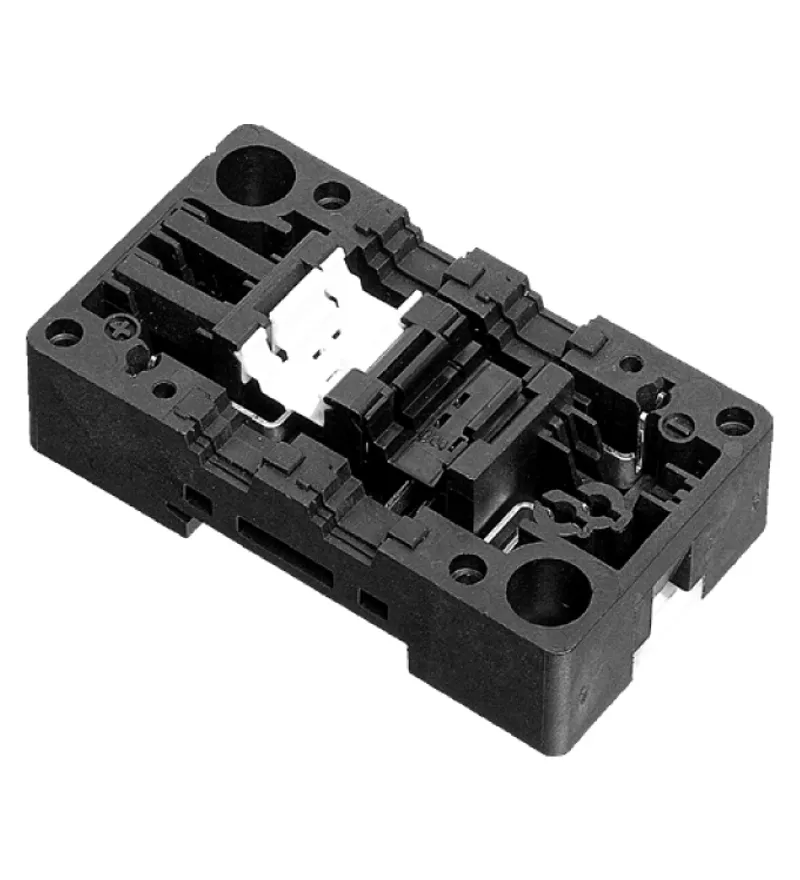

Pepperl Fuchs U-G1FFA
AS-Interface module mounting base
- MPN
- U-G1FFA
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs U-G1FFA?
AS-Interface module mounting base with adressing jack for connection to flat cable (AS-Interface and external auxiliary power)
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 098455 |
| UL File Number | E223772 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Current loading capacity | ≤ 2 A for max. 40 V |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP67 according to EN 60529 (only in connection with module or cover) |
| Connection | Flat cable for AS-Interface and external power supply |
| Material: Housing | PBT |

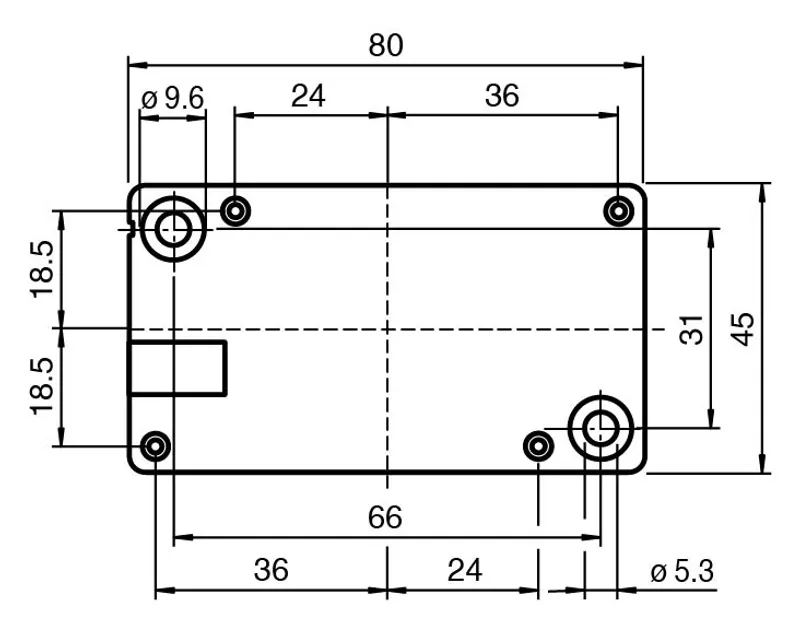

| Dimensions | about 80, 45, 20 mm (L, W, H) |
| Mounting | DIN rail or screw mounting |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
U-G1FFA: frequently asked questions
When can U-G1FFA be shipped?
U-G1FFA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U-G1FFA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U-G1FFA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U-G1FFA, subject to availability and destination.
