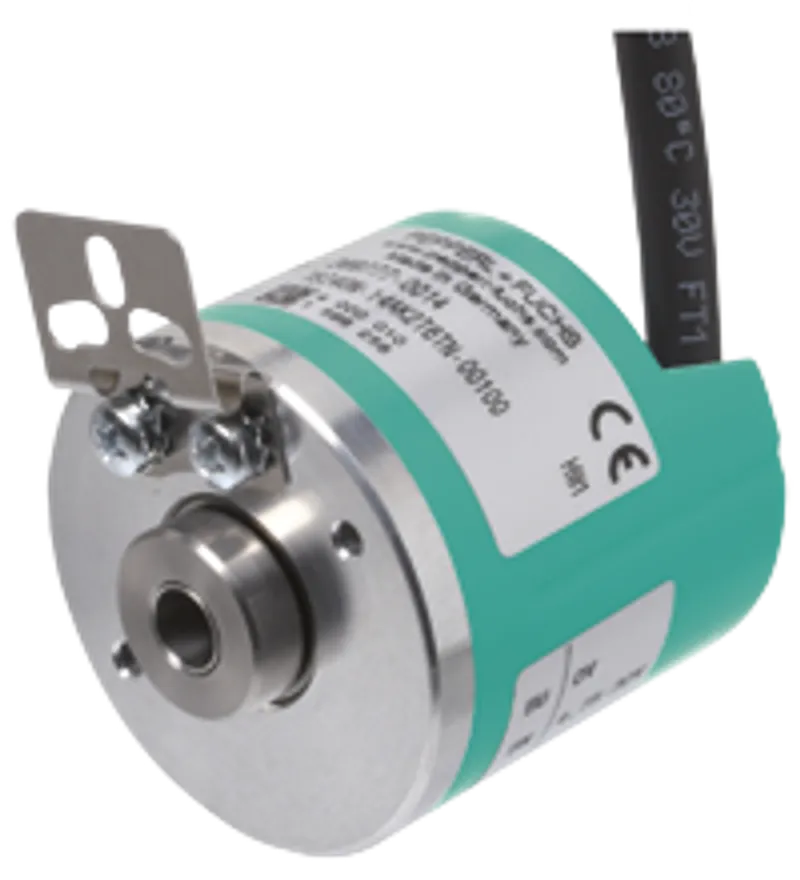

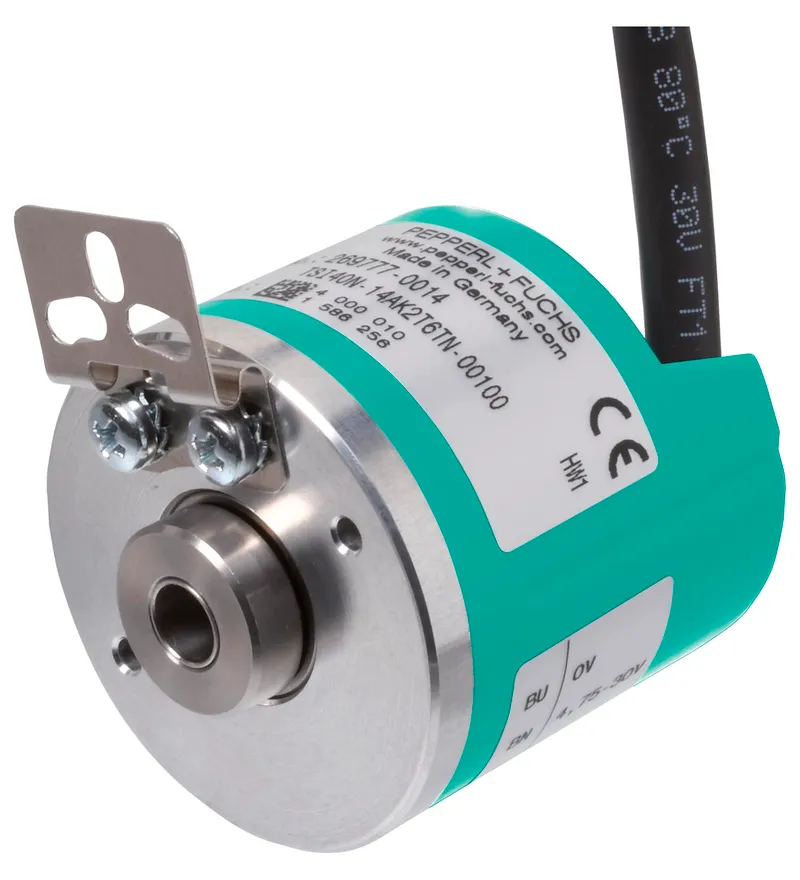

Pepperl Fuchs TSI40N – Incremental rotary encoder
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Incremental Rotary Encoders |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can TSI40N be shipped?
TSI40N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSI40N in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSI40N and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSI40N, subject to availability and destination.
• Compact design
• Up to 1024 ppr
• 4.75 V ... 30 V with short-circuit proof push-pull output
• RS 422 functionality at 5 V operation
• Tangential cable outlet
Compact design, Up to 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, RS 422 functionality at 5 V operation, Tangential cable outlet, Enclosure type: 40 mm, Type of shaft: Recessed hollow shaft, Interface: push-pull, incremental or RS-422, incremental, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS-422, incremental
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T30768 |
| Detection type | photoelectric sampling |
| Pulse count | max. 1024 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC , Reverse polarity protection 5 V DC for RS-422 , Reverse polarity protection UB |
| No-load supply current | max. 55 mA I0 |
Output
| Output type | push-pull, incremental or RS-422, incremental |
| Voltage drop | ≤ 2.5 V (< 2.5 V) Ud |
| Load current | max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof) |
| Output frequency | max. 100 kHz (max. 100 kHz) |
| Rise time | 980 ns (225 ns) |
| De-energized delay | 980 ns (225 ns) toff |
Connection

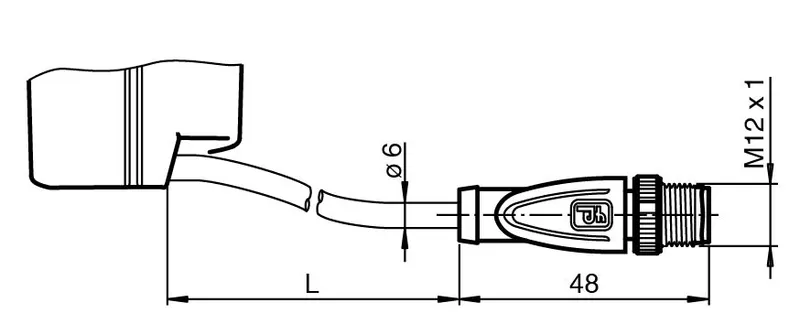

| Cable | ∅6 mm, 8 x 0,128 mm2 connection with plug M12, 8-pin, L = 0.2 m |
Standard conformity
| Degree of protection | DIN EN 60529, IP54 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) |
Ambient conditions
| Operating temperature | -10 ... 70 °C (14 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |

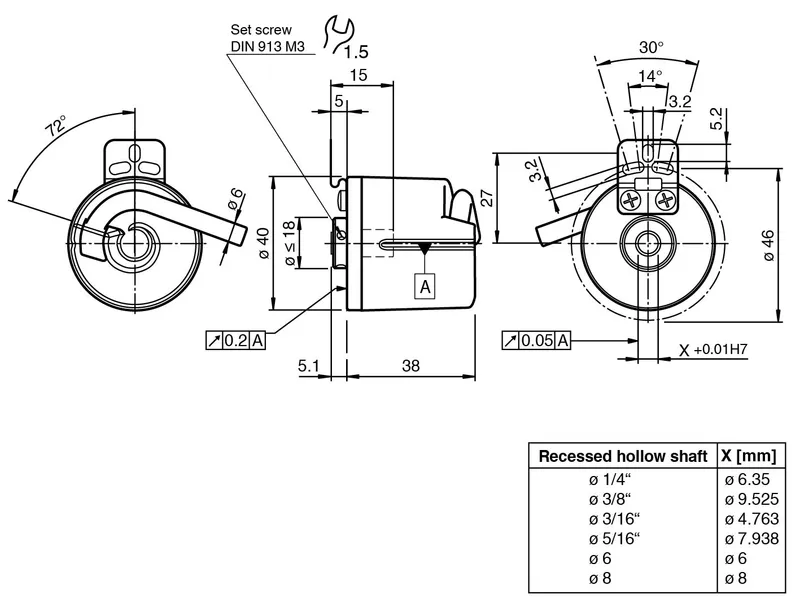

Mechanical specifications
| Material: Housing | Polycarbonate |
| Material: Flange | 3.1645 aluminum |
| Material: Shaft | Stainless steel 1.4305 / AISI 303 |
| Mass | approx. 180 g |
| Rotational speed | max. 6000 min -1 |
| Moment of inertia | ≤ 4.3 gcm2 |
| Starting torque | ≤ 0.2 Ncm |
| Shaft load: Angle offset | 1 ° |
| Shaft load: Axial offset | max. 1 mm |
| Dimensions: Length | 43 mm |
| Dimensions: Diameter | 40 mm |
| Life span | ≥ 2 x 109 revolutions (max. shaft loading) |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Commissioning Instructions | PDF · 581 kB |
CAD & dimension drawings
| 3-D model (STEP) TSI40N | STP · 906 kB |
Certificates (2)
| Canada, USA UL General Purpose (CoC E223176 RepRef E223176-20050829) | PDF · 418 kB |
| Canada, USA UL General Purpose (UL-US-2233187-0 / UL-CA-2232331-0) | PDF · 505 kB |
More Pepperl Fuchs parts

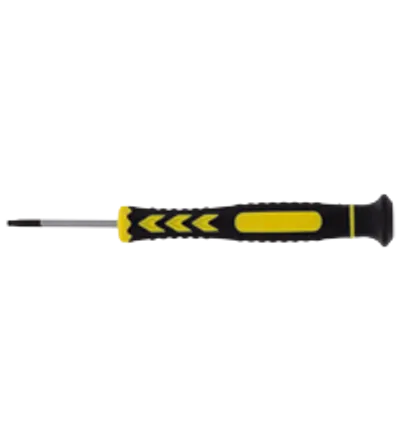

Available on requestScrewdriver TORX T8 SCREWDRIVER
Available on requestT-Connector TP-CON.3.BU

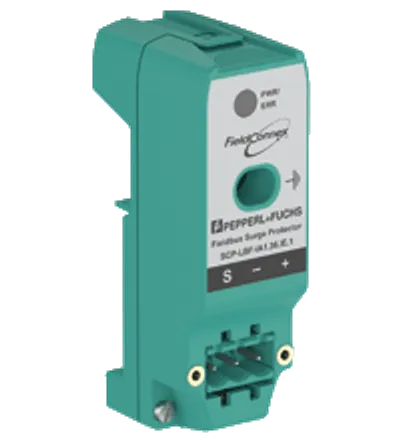

Available on requestSurge Protector TPH-LBF-IA1.36.DE*

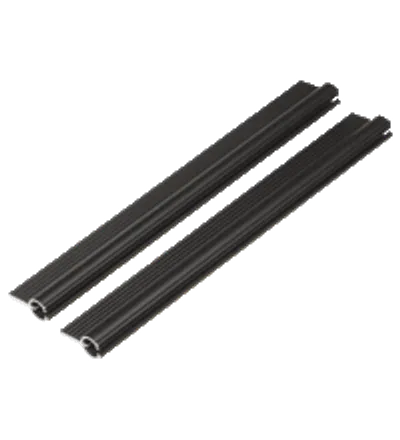

Available on requestMounting aid Safety TR 14/30/50/60

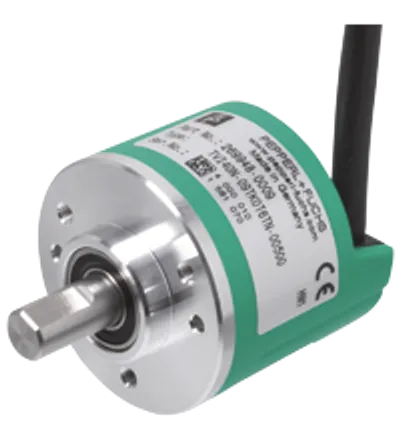

Available on requestIncremental rotary encoder TVI40N

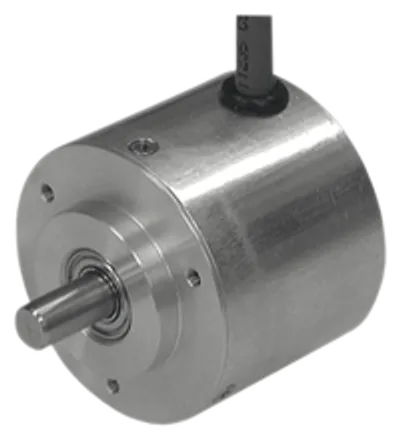

Available on requestIncremental rotary encoder TVI50N-09BK0**T

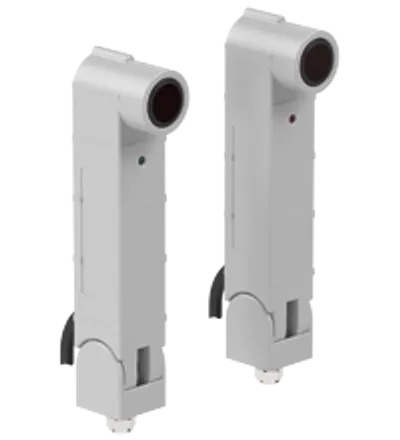

Available on requestSafety thru-beam sensor TWIN-PRO-20M-OSE-13m-SETAvailable on requestSafety thru-beam sensor TWIN-SAFE-20M-AR-13m-SET
