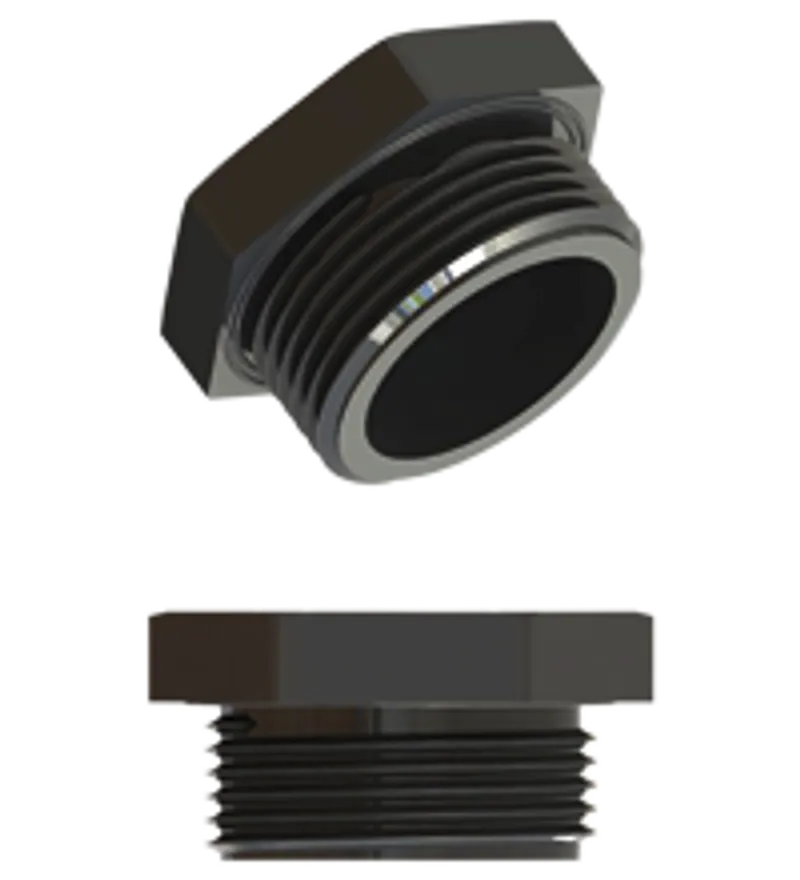

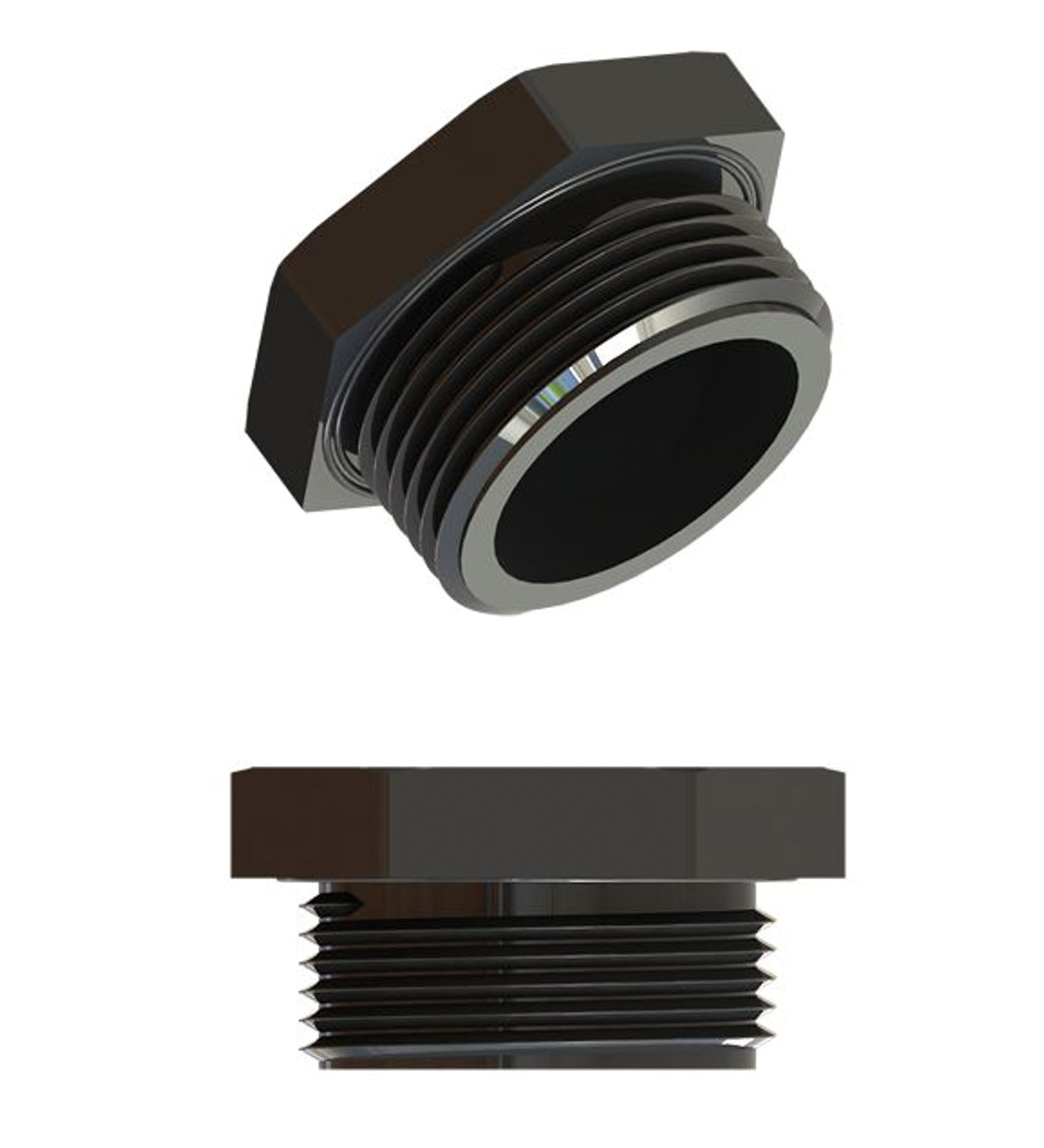

Pepperl Fuchs SP.PE.*.PA.C – Stopping Plugs, Plastic
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable Glands and Accessories (Ex d, Ex e, Ex i) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SP.PE.*.PA.C be shipped?
SP.PE.*.PA.C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SP.PE.*.PA.C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SP.PE.*.PA.C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SP.PE.*.PA.C, subject to availability and destination.
• Stopping plug for unused cable entries
• High impact-resistant polyamide material
• Ex eb and Ex tb certified
• Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
• Full impact resistance of 7 J according to IEC/EN 60079-0 for the full range without limitations
Stopping plug for unused cable entries, High impact-resistant polyamide material, Ex eb and Ex tb certified, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Full impact resistance of 7 J according to IEC/EN 60079-0 for the full range without limitations, Ambient temperature: chloroprene seal: -40 ... 70 °C (-40 ... 158 °F) , silicone seal: -60 ... 70 °C (-76 ... 158 °F), Thread size (TD): see data table, Stopping plug: high impact-resistant polyamide
Specifications
Mechanical specifications
| Order code (Pepperl+Fuchs part number) | T174123 |
| Thread type | metric ISO pitch 1.5 mm |
| Thread size (TD) | see data table |
| Degree of protection | IP66 / IP68 |
| Material: Finish | inherent color black |
| Material: Washer gasket | flat chloroprene gasket |
| Material: Stopping plug | high impact-resistant polyamide |
| Mass | see data table |

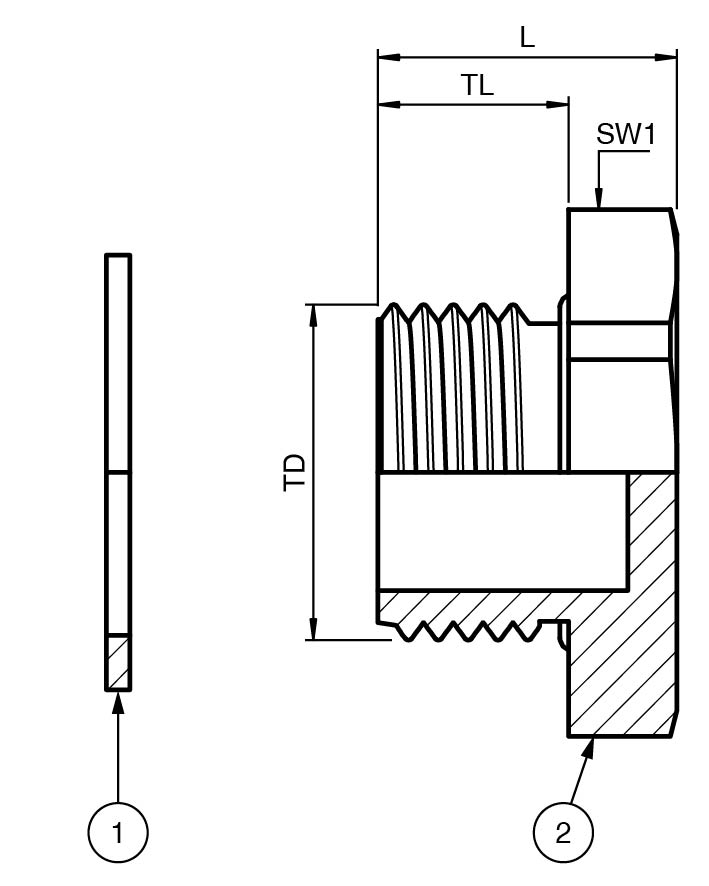

| Dimensions | see data table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | chloroprene seal: -40 ... 70 °C (-40 ... 158 °F) silicone seal: -60 ... 70 °C (-76 ... 158 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | IMQ 15 ATEX 006X |
| Marking | II 2 GD Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx IMQ 15.0001X |
| UKCA approval | CML 22 UKEX 31379X |
| INMETRO approval | DNV 20.0032 X |
| CCC approval | 2021312313000455 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
General information
| Scope of delivery | Knn - packing unit with multiple components: Stopping Plugs , Brief instructions (1 copy) |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Brief Instructions - Cable Glands CG.P*DS1.* / Stopping Plugs SP.PE.* / Sealing Plugs BP.* | PDF · 447 kB |
| Instruction Manual | PDF · 159 kB |
Certificates (6)
| South Africa MASC (MASC S/25-8100X) | PDF · 1.3 MB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 159 kB |
| Europe IMQ Ex eb Ex tb (IMQ 15 ATEX 006 X) | PDF · 1.2 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 454 kB |
| CCC Ex Certificate (2021312313000455 (Bimed Teknik)) | PDF · 1.1 MB |
| UK-Type Examination Certificate (CML 21UKEX31379X) | PDF · 139 kB |
