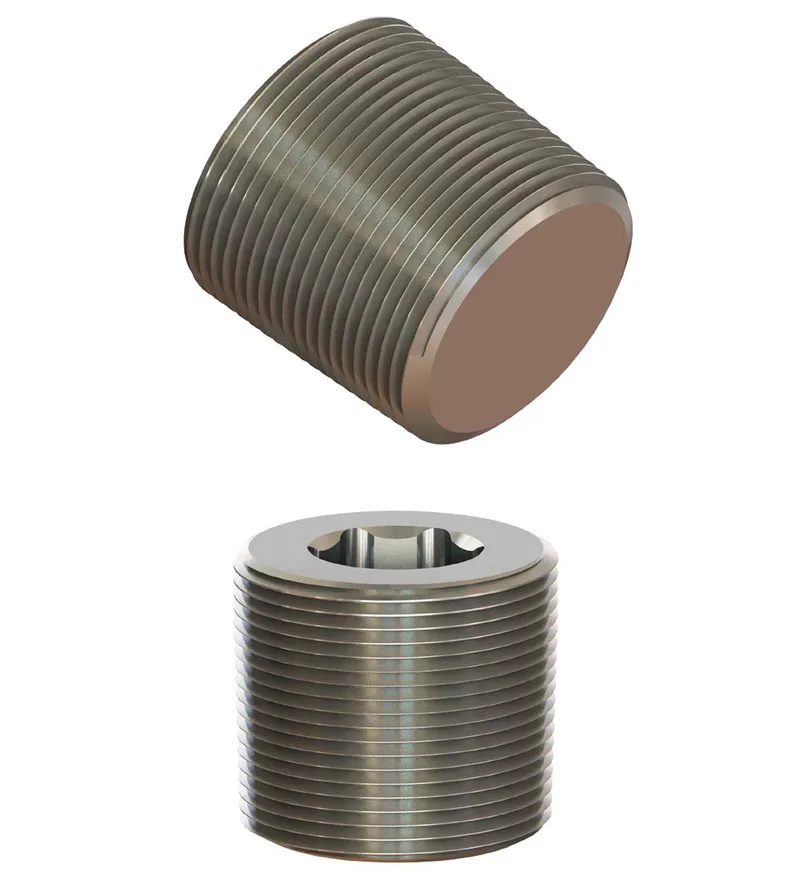

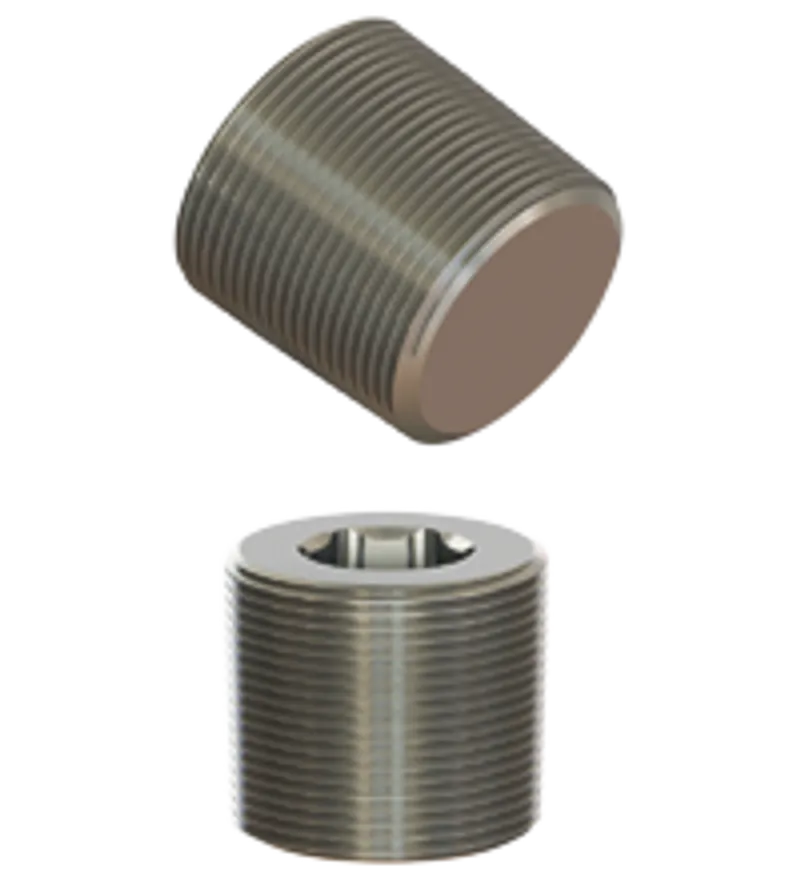

What is the Pepperl Fuchs SP.MA.*.*.*?

Stopping plug for unused cable entries

Brass nickel-plated or stainless steel

NPT versions available

Without head, installation by means of allen key

Ex db, Ex eb and Ex tb certified

Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22

Suitable for operation in Class I, Zone 1/2/22

Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2)

Degree of protection IP66 / IP68, UL Type 4X

Stopping plug for unused cable entries, Brass nickel-plated or stainless steel, NPT versions available, Without head, installation by means of allen key, Ex db, Ex eb and Ex tb certified, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Suitable for operation in Class I, Zone 1/2/22, Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2), Degree of protection IP66 / IP68, UL Type 4X, Thread size (TD): see data table

Specifications

Mechanical specifications

Order code (Pepperl+Fuchs part number)T182521
Thread typeNPT ANSI ASME B1.20.1
Thread size (TD)see data table
Degree of protectionIP66 / IP68 , UL Type 4X
Material: Finishinherent color silver
Material: Stopping plugbrass nickel-plated or AISI 316 (1.4401) stainless steel
Masssee data table

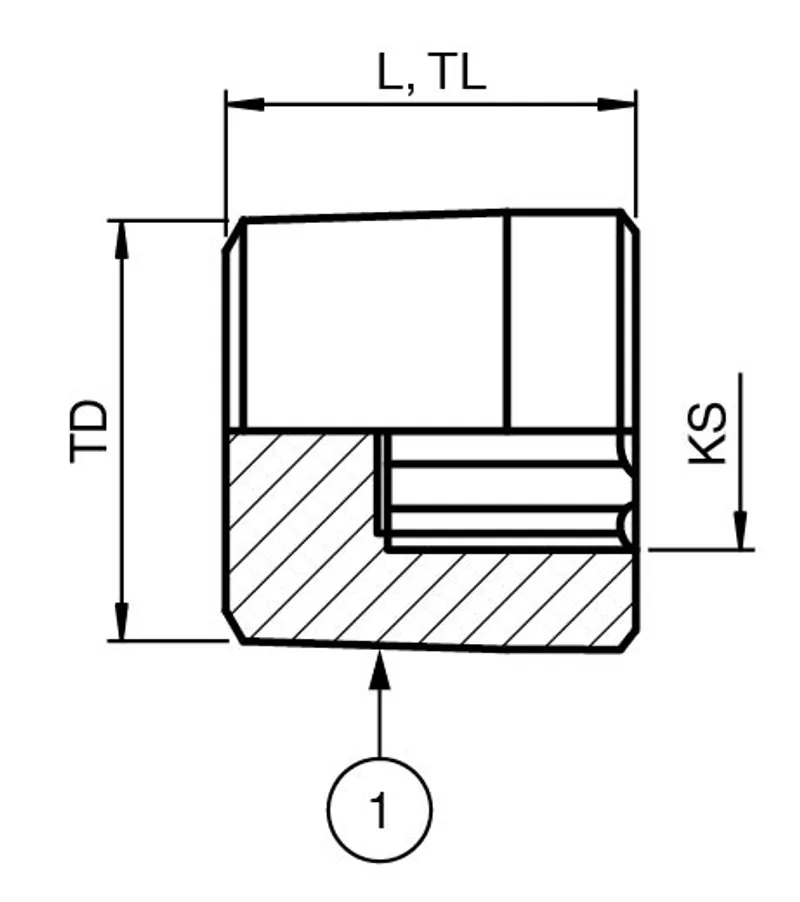

Dimensionssee data table
LifecycleActive (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature-60 ... 130 °C (-76 ... 266 °F)

Data for application in connection with hazardous areas

EU-type examination certificateCESI 15 ATEX 029X
MarkingII 2 GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db

International approvals

UL approval: cULusE305142 tested to UL 50E and UL 508A CSA C22.2, No. 14-13
IECEx approvalIECEx CES 15.0006X
UKCA approvalCML 22 UKEX 1267X
CCC approval2021312313000343

Conformity

Degree of protectionEN 60529
CE marking0102

General information

Scope of deliveryK01 - NPT variants, individual component: Stopping Plug , Brief instructions Knn - packing unit with multiple components: Stopping Plugs , Brief instructions (1 copy)
Supplementary informationEC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

SP.MA.*.*.*: frequently asked questions

When can SP.MA.*.*.* be shipped?

SP.MA.*.*.* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SP.MA.*.*.* in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SP.MA.*.*.* and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SP.MA.*.*.*, subject to availability and destination.

More Pepperl Fuchs parts

Pepperl Fuchs SMART-EX03-DZ1* – Smartphone. Smart-Ex 03 DZ1 (DIV 1 and Zone 1/21), Android™, with Camera (optional), 128 GB
Pepperl Fuchs
SMART-EX03-DZ1*

Smartphone. Smart-Ex 03 DZ1 (DIV 1 and Zone 1/21), Android™

Pepperl Fuchs SONPROG – Configuration software
Pepperl Fuchs
SONPROG

Configuration software

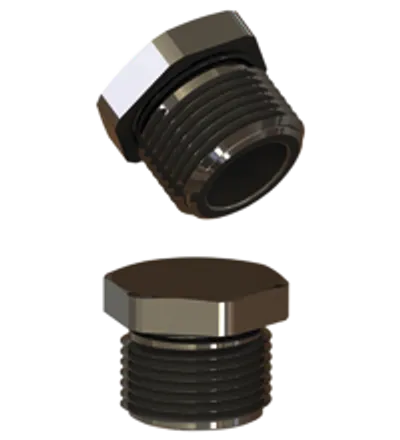

Pepperl Fuchs SP.MD.*.*.* – Stopping Plugs, Metal, Hexagon Head
