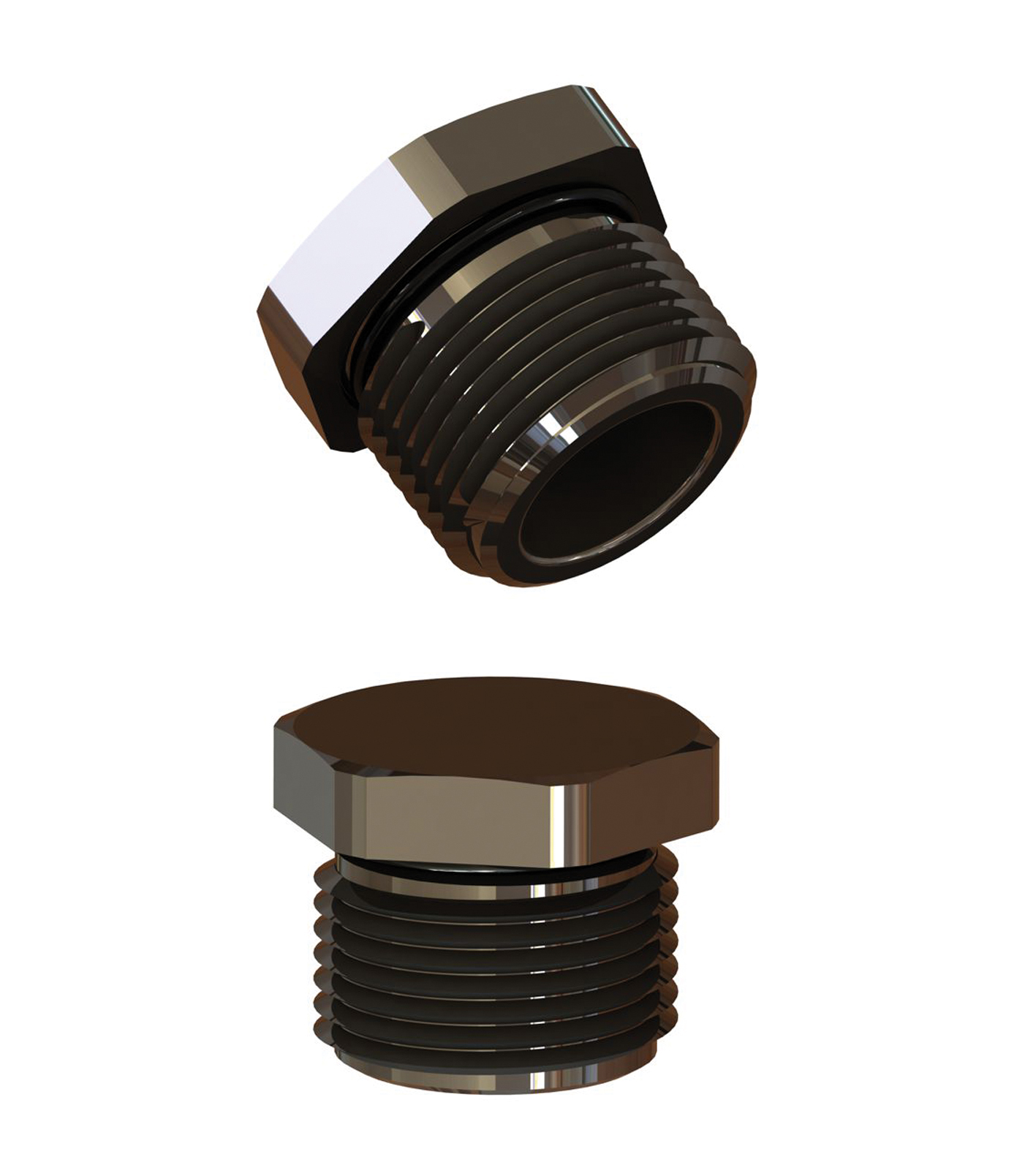

Pepperl Fuchs SP.MD.*.*.* – Stopping Plugs, Metal, Hexagon Head
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable Glands and Accessories (Ex d, Ex e, Ex i) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SP.MD.*.*.* be shipped?
SP.MD.*.*.* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SP.MD.*.*.* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SP.MD.*.*.* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SP.MD.*.*.*, subject to availability and destination.
• Stopping plug for unused cable entries
• Brass nickel-plated or stainless steel
• Metric and NPT versions available
• Hexagon head
• Ex db, Ex eb and Ex tb certified
• Seal chloroprene or silicone
• Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
• Suitable for operation in Class I, Zone 1/2/22
• Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2)
• Degree of protection IP66 / IP68, UL Type 4X
Stopping plug for unused cable entries, Brass nickel-plated or stainless steel, Metric and NPT versions available, Hexagon head, Ex db, Ex eb and Ex tb certified, Seal chloroprene or silicone, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Suitable for operation in Class I, Zone 1/2/22, Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2), Degree of protection IP66 / IP68, UL Type 4X
Specifications

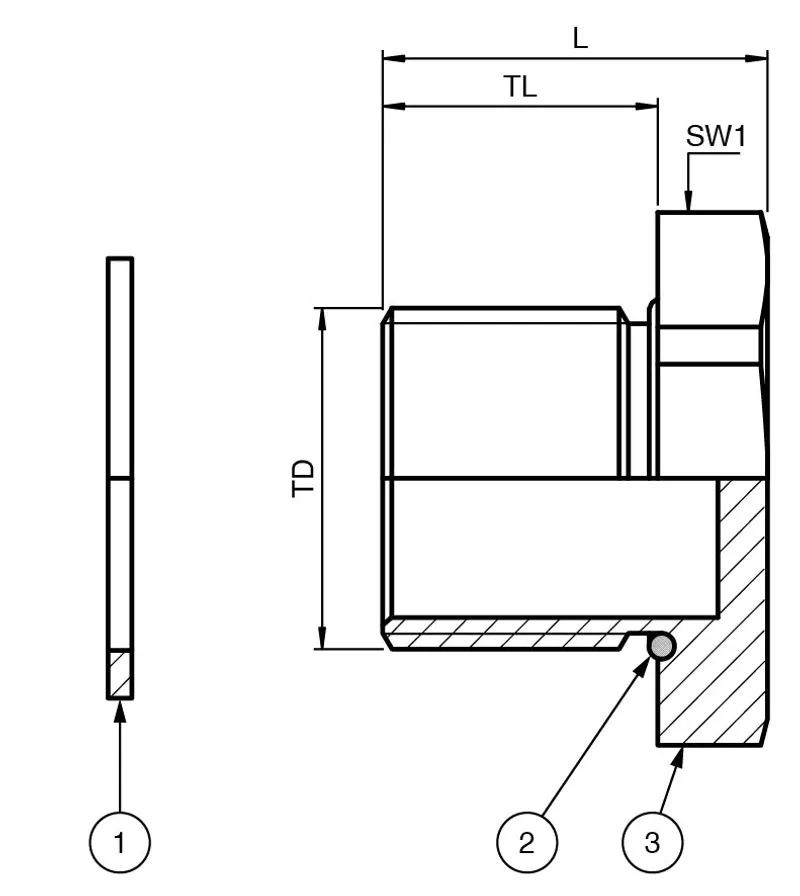

Mechanical specifications
| Order code (Pepperl+Fuchs part number) | T176941 |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Thread size (TD) | see data table |
| Degree of protection | IP66 / IP68 , UL Type 4X |
| Material: Finish | inherent color silver |
| Material: Washer gasket | aramid fibers bonded with NBR |
| Material: O-Ring | chloroprene / neoprene or silicone |
| Material: Stopping plug | brass nickel-plated or AISI 316 (1.4401) stainless steel |
| Mass | see data table |
| Dimensions | see data table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | chloroprene seal: -40 ... 100 °C (-40 ... 212 °F) silicone seal: -60 ... 130 °C (-76 ... 266 °F) washer gasket: -40 ... 80 °C (-40 ... 176 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CESI 15 ATEX 029X |
| Marking | II 2 GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| UL approval: cULus | E305142 tested to UL 50E and UL 508A CSA C22.2, No. 14-13 |
| IECEx approval | IECEx CES 15.0006X |
| UKCA approval | CML 22 UKEX 1267X |
| CCC approval | 2021312313000343 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
General information
| Scope of delivery | K01 - metric variants, individual component: Stopping Plug , washer gasket , locknut , Brief instructions K01 - NPT variants, individual component: Stopping Plug , Brief instructions Knn - packing unit with multiple components: Stopping Plugs , Brief instructions (1 copy) |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
