Pepperl Fuchs ShieldScan Cable Adapt SSR/PNP

Accessory DGE

MPN
ShieldScan Cable Adapt SSR/PNP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

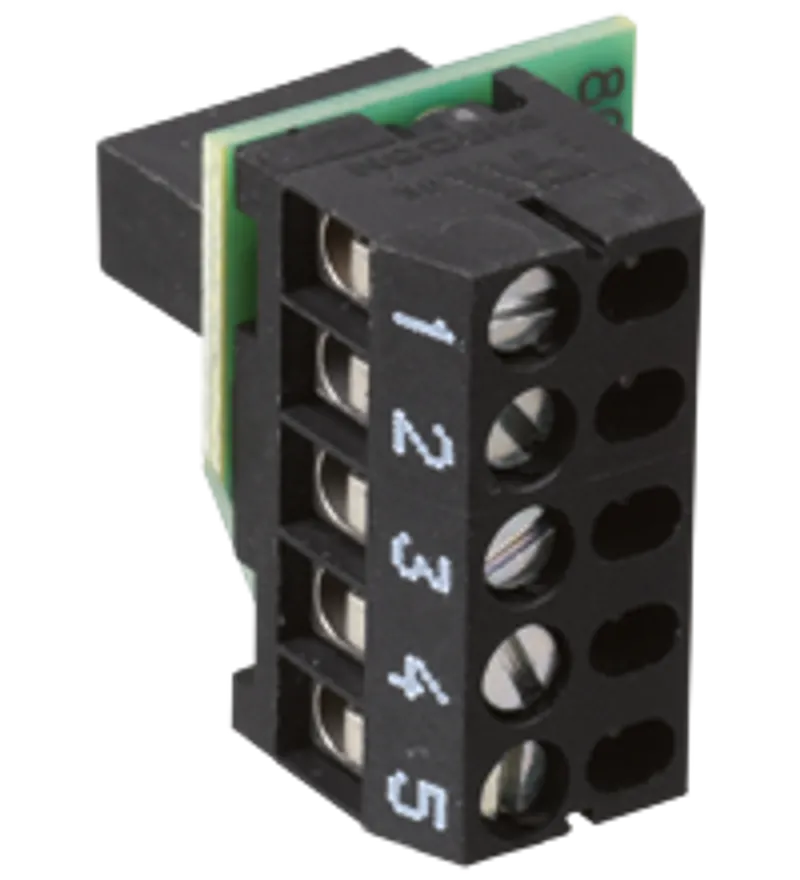

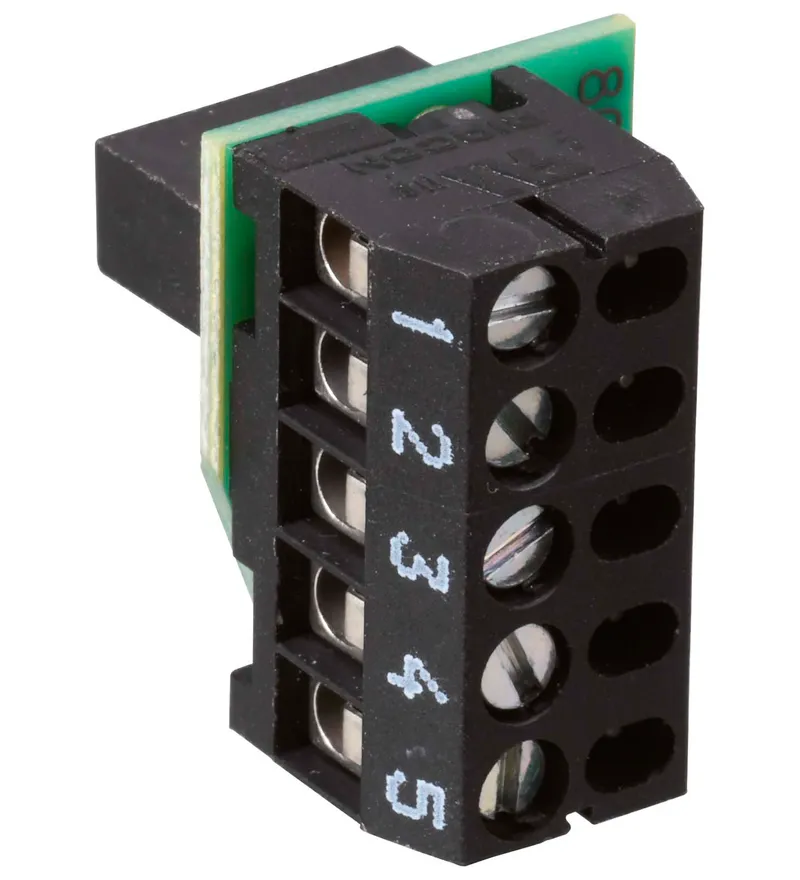

What is the Pepperl Fuchs ShieldScan Cable Adapt SSR/PNP?

Cable adapter for solid-state scanner ShieldScan

Adapter for connecting cables (e.g., existing cables)

Cable adapter for solid-state scanner ShieldScan, Adapter for connecting cables (e.g., existing cables), Connection: screw terminal 5-pin

Specifications

Ambient conditions

Order code (Pepperl+Fuchs part number)70169397
Ambient temperature-30 ... 60 °C (-22 ... 140 °F)
LifecycleActive (current Pepperl+Fuchs product)

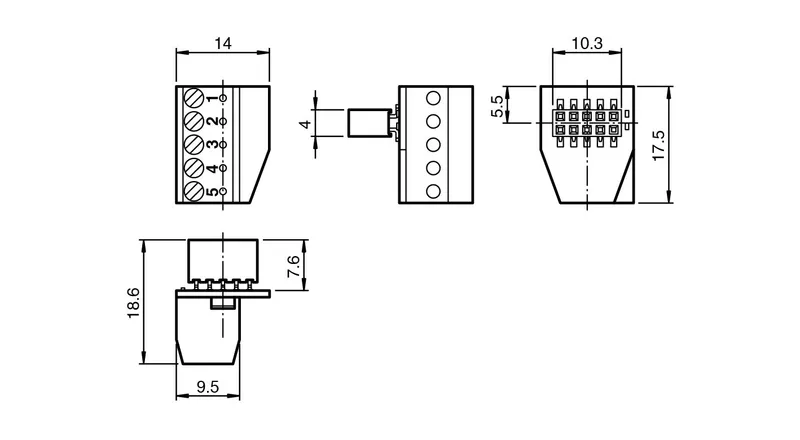

Mechanical specifications

Connectionscrew terminal 5-pin
Massapprox. 4 g
Dimensions: Height14 mm
Dimensions: Width18.6 mm
Dimensions: Length17.5 mm

General information

Scope of delivery1x screw terminal 5-pin , 1x printed circuit board assembly (PCBA) with connector 10-pin ( switched high )

Suitable series

SeriesShieldScan

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

ShieldScan Cable Adapt SSR/PNP: frequently asked questions

When can ShieldScan Cable Adapt SSR/PNP be shipped?

ShieldScan Cable Adapt SSR/PNP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ShieldScan Cable Adapt SSR/PNP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ShieldScan Cable Adapt SSR/PNP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ShieldScan Cable Adapt SSR/PNP, subject to availability and destination.

More Pepperl Fuchs parts

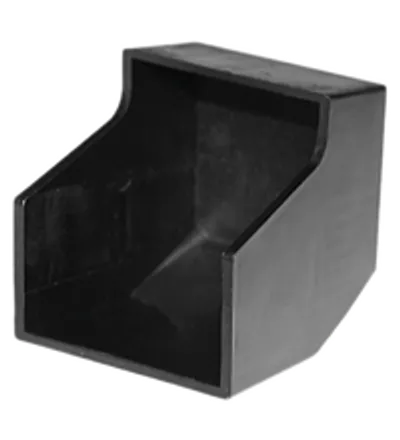

Pepperl Fuchs SH-F35 – Protective Cover
