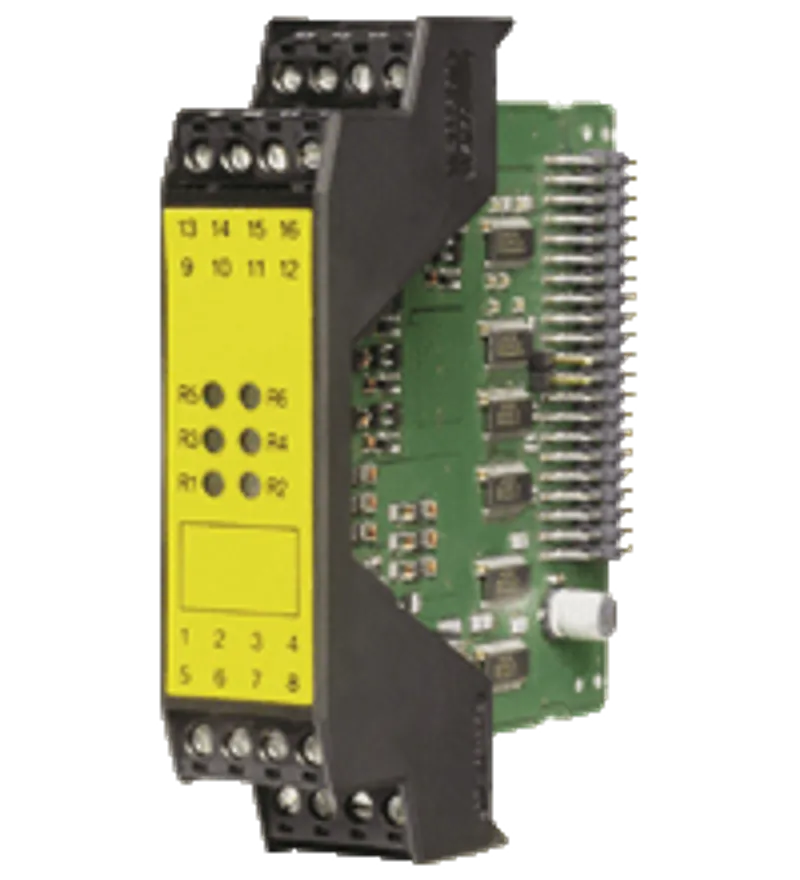

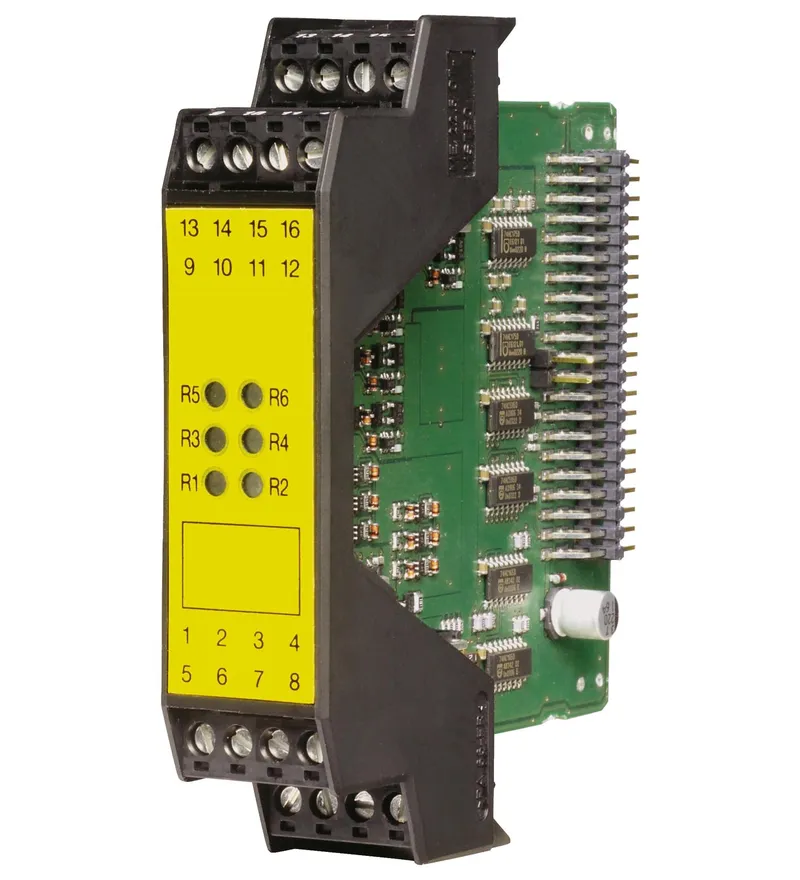

Pepperl Fuchs SB4 Module 6C
Safety control unit module
- MPN
- SB4 Module 6C
- Category
- Safety Control Units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs SB4 Module 6C?
Sensor module
6 sensor channels
Single module for safety thru-beam sensors SLA12 and SLA29 and for 2 channel safety devices (emergency off)
Operating mode can be selected by means of DIP switches
Sensor module, 6 sensor channels, Single module for safety thru-beam sensors SLA12 and SLA29 and for 2 channel safety devices (emergency off), Operating mode can be selected by means of DIP switches, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , via SB4 Housing, Connection: screw terminals , lead cross section 0.2 ... 2 mm2
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 182111 |
| Operating mode | simultaneousness, antivalence |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| Mission Time (TM) | 20 a |
| Type | 4 |
Indicators/operating means
| Function indicator | LED yellow (6x): indicator lamp channel 1 ... 6 |
| Stability alarm indicator | LED yellow flashing: Indicator lamp channel 1 ... 6 |
| Control elements | DIP switch |
Electrical specifications
| Operating voltage | 24 V DC ± 20 % , via SB4 Housing UB |
Input
| Activation current | approx. 7 mA |
Conformity
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 |
| Product standard | EN 61496-1 |
Approvals and certificates
| CE conformity | CE |
| UL approval | cULus |
| TÜV approval | TÜV |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Shock resistance | see instruction manuals |
| Vibration resistance | see instruction manuals |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals , lead cross section 0.2 ... 2 mm2 |
| Material: Housing | Polyamide (PA) |
| Mass | approx. 150 g |
| Dimensions: Height | 99 mm |
| Dimensions: Width | 22.6 mm |
| Dimensions: Depth | 100.5 mm |
