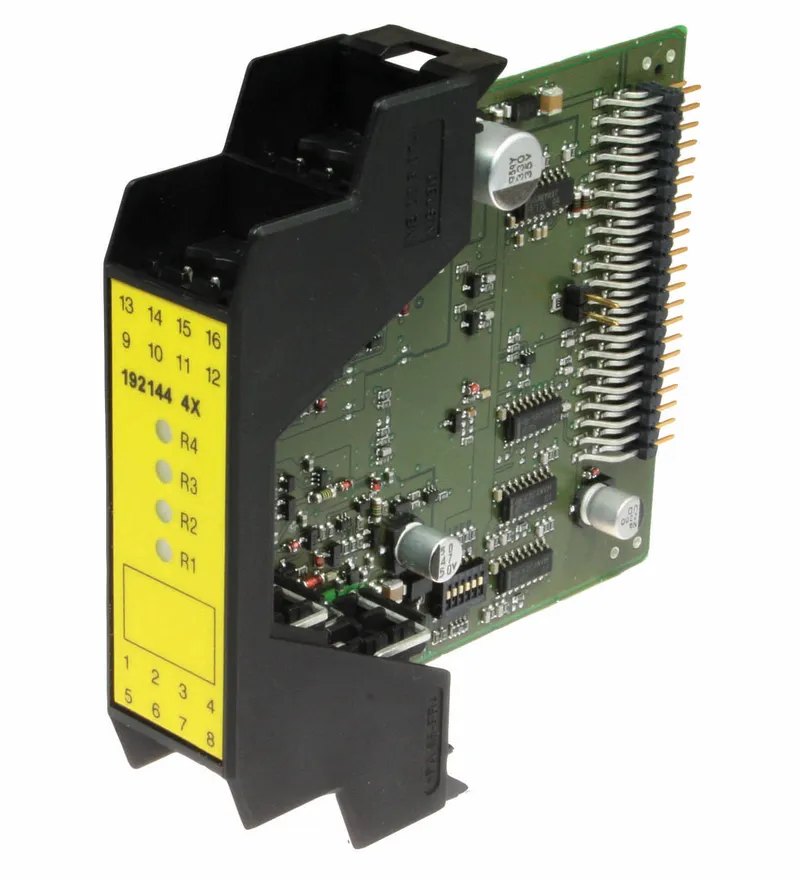

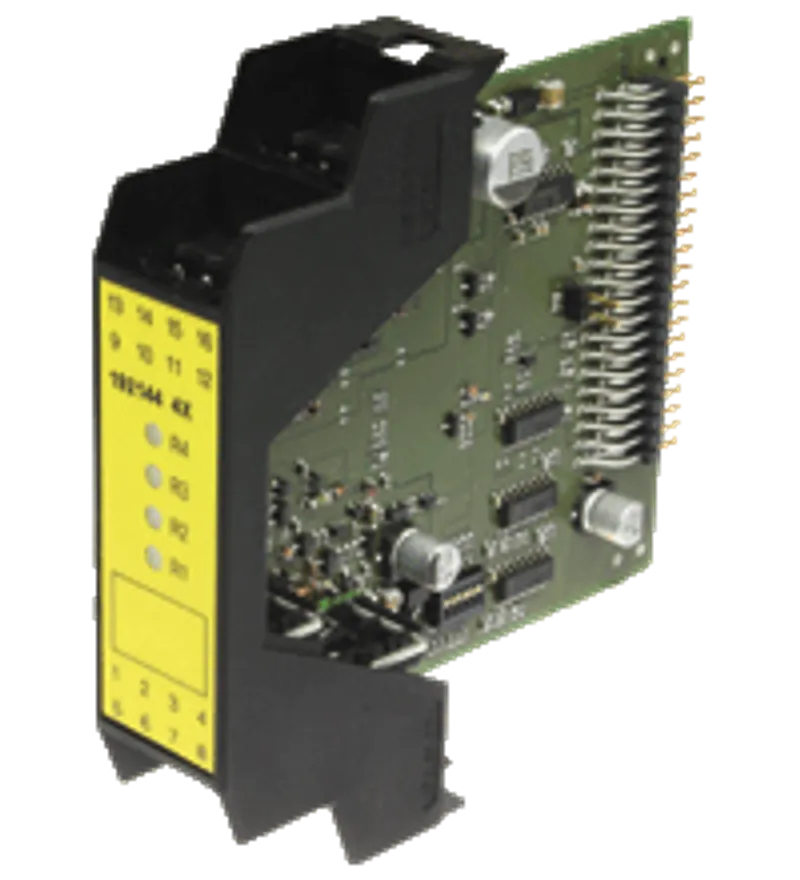

Pepperl Fuchs SB4 Module 4X

Safety control unit module

MPN: SB4 Module 4X
Category: Safety Control Units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs SB4 Module 4X?

Sensor module

4 sensor channels

Operating mode can be selected by means of DIP switches

Individual module for SLA5(S), SLA20, SLA25, SLA28 and SLA40 security through-beam sensors; for SLP safety light grids, for SLC safety light curtains; for switching pads and emergency stop buttons of categories 2 or 4

Screw terminals or spring terminals

Sensor module, 4 sensor channels, Operating mode can be selected by means of DIP switches, Individual module for SLA5(S), SLA20, SLA25, SLA28 and SLA40 security through-beam sensors; for SLP safety light grids, for SLC safety light curtains; for switching pads and emergency stop buttons of categories 2 or 4, Screw terminals or spring terminals, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , via SB4 Housing

Specifications

Functional safety related parameters

Order code (Pepperl+Fuchs part number)	192144
Safety Integrity Level (SIL)	SIL 3
Performance level (PL)	PL e
Category	Cat. 4
Mission Time (TM)	20 a
Type	4
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

Function indicator	LED yellow (4x): indicator lamp channel 1 ... 4
Stability alarm indicator	LED yellow flashing: Indicator lamp channel 1 ... 4
Control elements	DIP switch

Electrical specifications

Operating voltage

24 V DC ± 20 % , via SB4 Housing UB

Input

Actuating voltage	approx. 10 V
Activation current	approx. 4 ... 20 mA

Conformity

Functional safety	ISO 13849-1 ; EN 61508 part1-4
Product standard	EN 61496-1

Approvals and certificates

CE conformity	CE
UL approval	cULus
TÜV approval	TÜV

Ambient conditions

Ambient temperature	0 ... 50 °C (32 ... 122 °F)
Storage temperature	-20 ... 70 °C (-4 ... 158 °F)
Shock resistance	see instruction manuals
Vibration resistance	see instruction manuals

Mechanical specifications

Degree of protection	IP20
Connection	screw terminals , lead cross section 0.2 ... 2 mm2 Option /165: Cage tension spring terminals , Cable cross-section 0.2 ... 1.5 mm2
Material: Housing	Polyamide (PA)
Mass	approx. 150 g
Dimensions: Height	99 mm
Dimensions: Width	22.6 mm
Dimensions: Depth	100.5 mm

General information

Order information

without Option /165 -> with screw terminalswith Option /165 -> spring clamp terminals
