Pepperl Fuchs REF-MH56

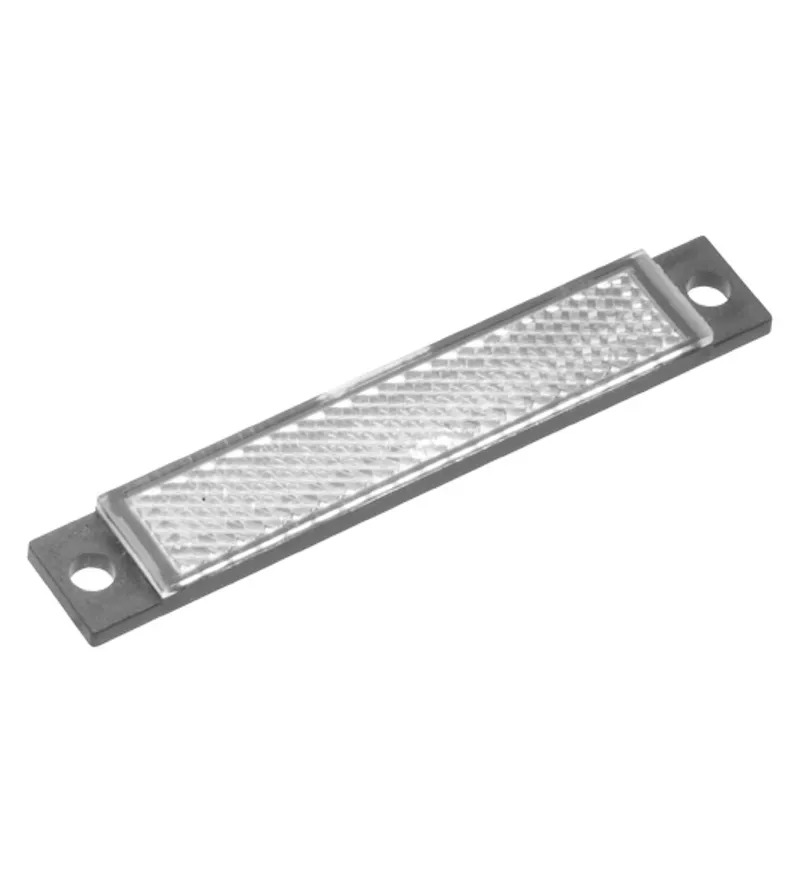

Reflector with micro-structure

MPN: REF-MH56
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs REF-MH56?

Mounting holes for simple installation

Micro-structure

Reflector with Micro-structure, rectangular 62 mm x 10 mm, mounting holes, Mounting holes for simple installation, Micro-structure

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	113954
Construction type	rectangular
Tripel height	approx. 1.2 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-20 ... 85 °C (-4 ... 185 °F)

Mechanical specifications

Material	PMMA/ABS
Dimensions: Height	3.5 mm
Dimensions: Width	10 mm
Dimensions: Length	62 mm
Mounting	mounting holes

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet REF-MH56PDF

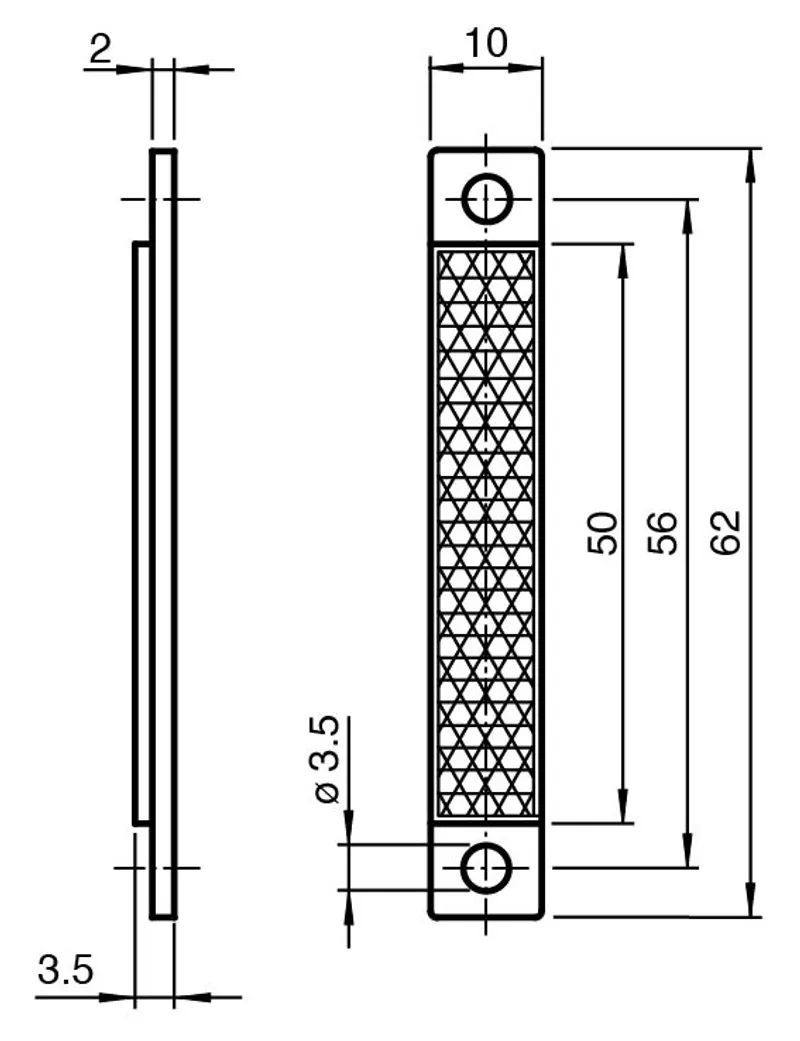

CAD & dimension drawings

3-D model (STEP) REF-MH56STP · 44 kB
