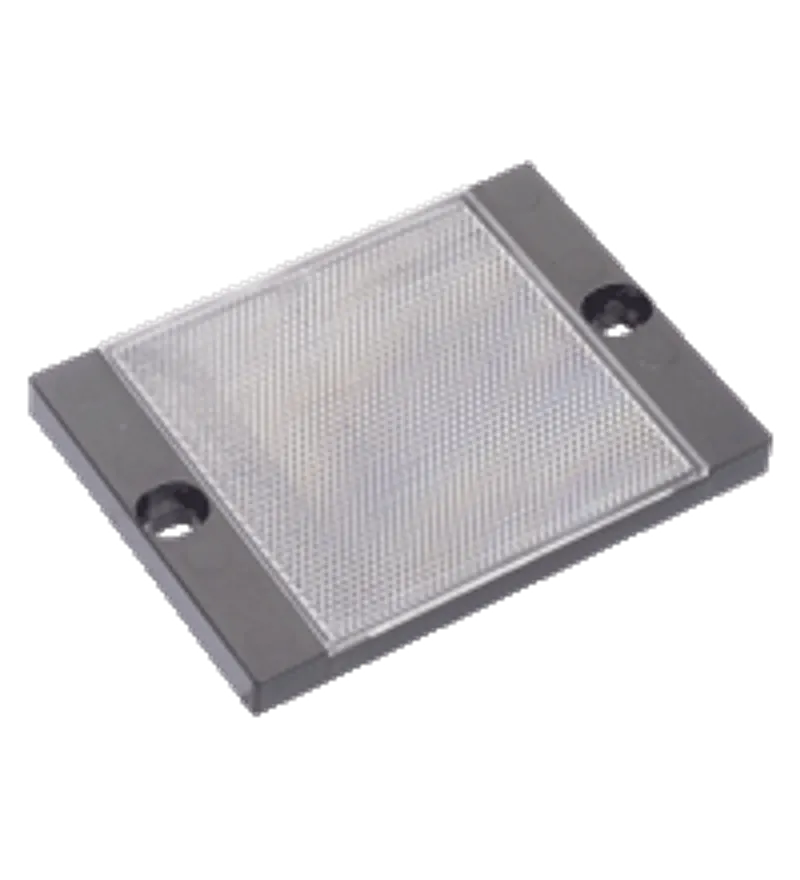

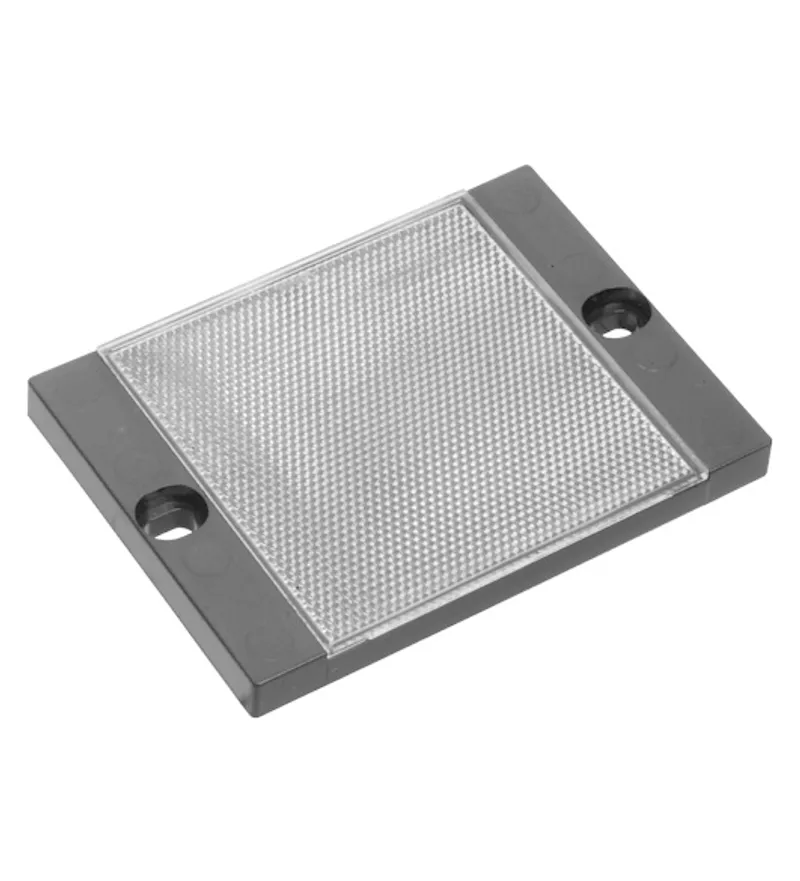

Pepperl Fuchs REF-MH82
Reflector with micro-structure
- MPN
- REF-MH82
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs REF-MH82?
Mounting holes for simple installation
Micro-structure
Reflector with Micro-structure, rectangular 82 mm x 60 mm, mounting holes, Mounting holes for simple installation, Micro-structure
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 127831 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -30 ... 85 °C (-22 ... 185 °F) |
Mechanical specifications
| Material | PMMA/ABS |
| Dimensions: Height | 7.4 mm |
| Dimensions: Width | 60 mm |
| Dimensions: Length | 82 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

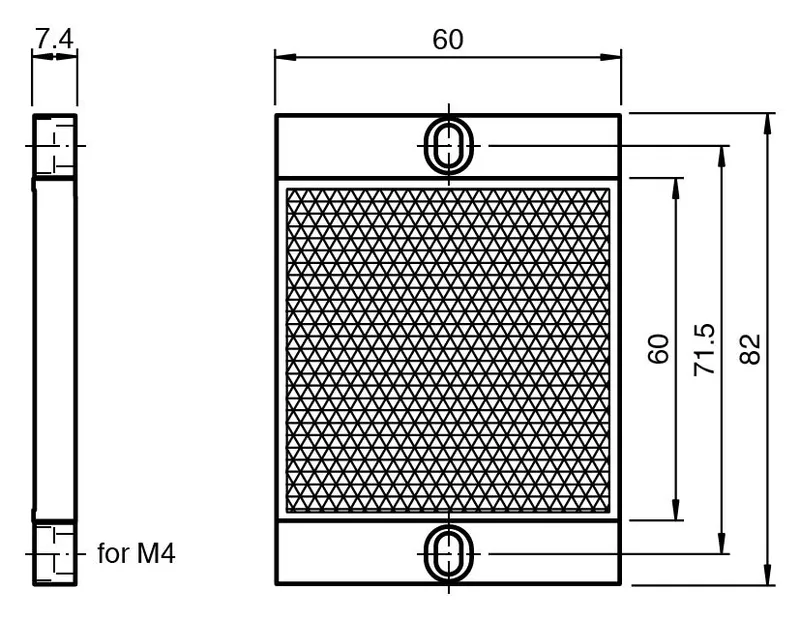

CAD & dimension drawings
