Pepperl Fuchs

Pepperl Fuchs REF-MH23

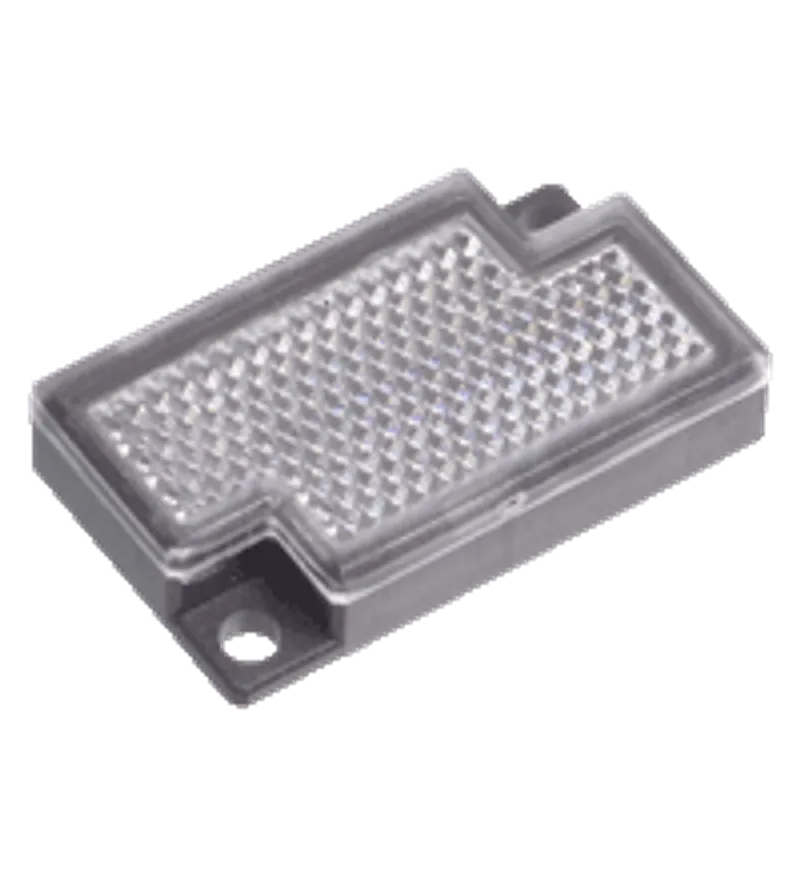

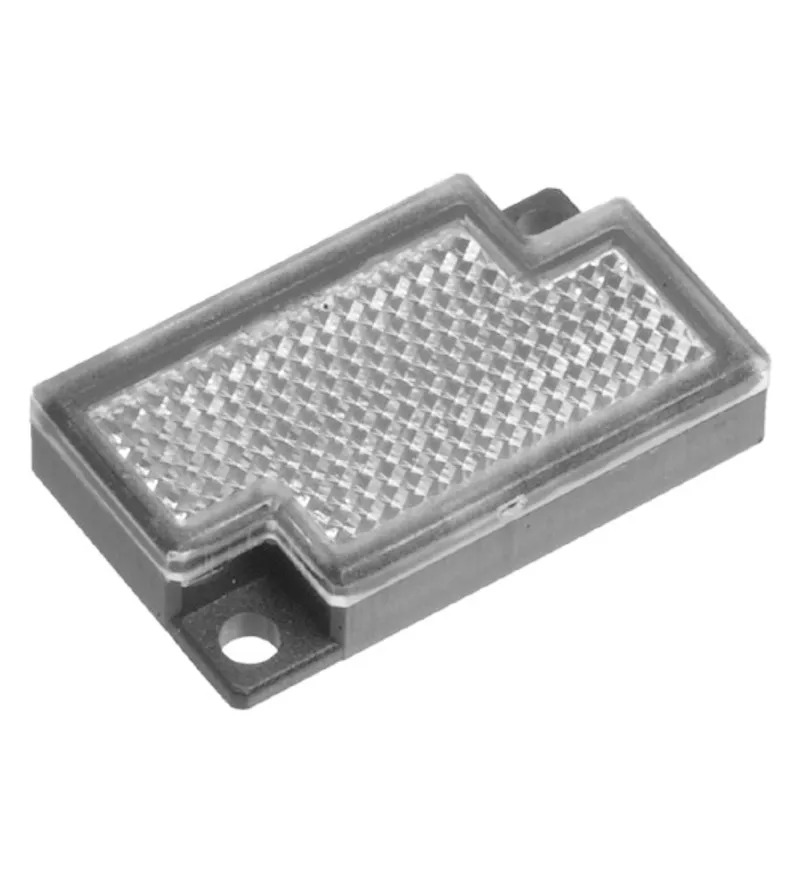

Reflector with micro-structure

MPN: REF-MH23
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs REF-MH23?

Mounting holes for simple installation

Micro-structure

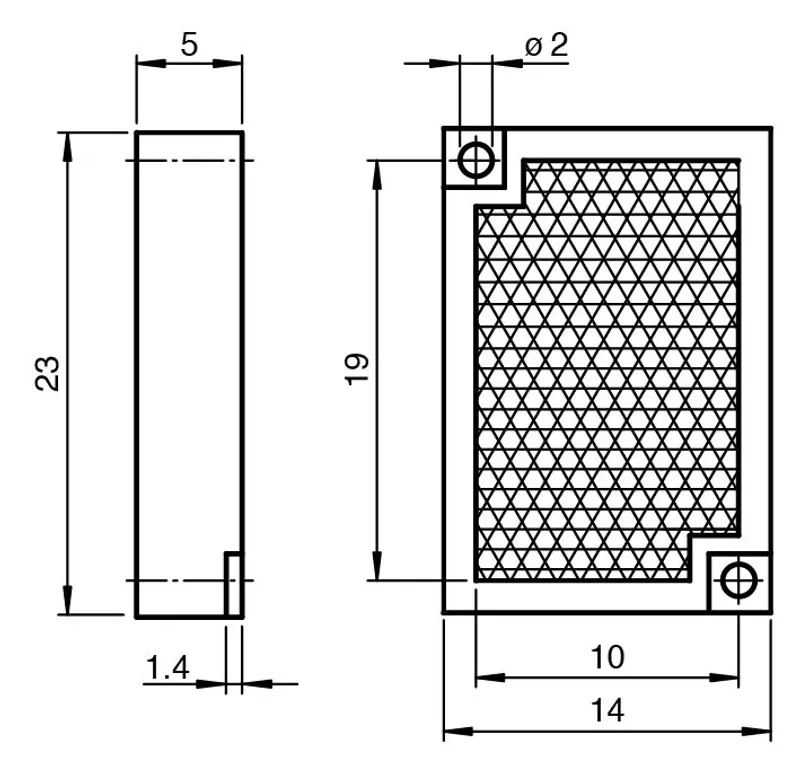

Reflector with Micro-structure, rectangular 23 mm x 13.8 mm, diagonal mounting hole, Mounting holes for simple installation, Micro-structure

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	113953
Construction type	rectangular
Tripel height	approx. 0.9 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-20 ... 85 °C (-4 ... 185 °F)

Mechanical specifications

Material	PMMA/ABS
Dimensions: Height	5 mm
Dimensions: Width	14 mm
Dimensions: Length	23 mm
Mounting	mounting holes

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet REF-MH23PDF
