Pepperl Fuchs REF-H48
Reflector
- MPN
- REF-H48
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs REF-H48?
Mounting holes for simple installation

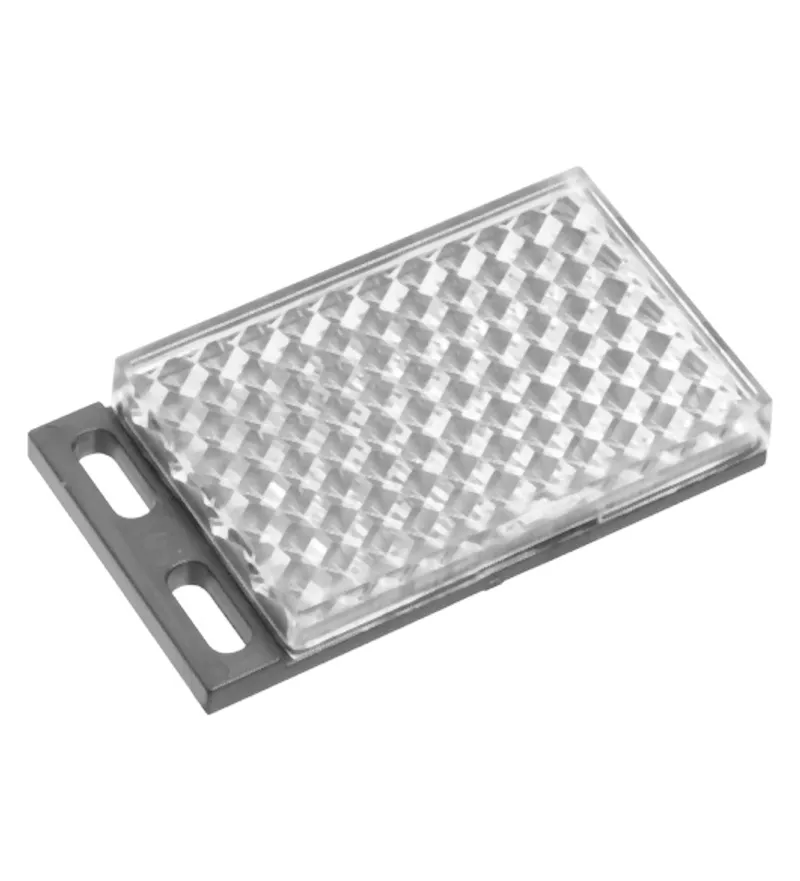

Reflector, rectangular 32 mm x 56 mm, mounting holes, fixing strap, Mounting holes for simple installation
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 113946 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
Mechanical specifications
| Material | PMMA/ABS |

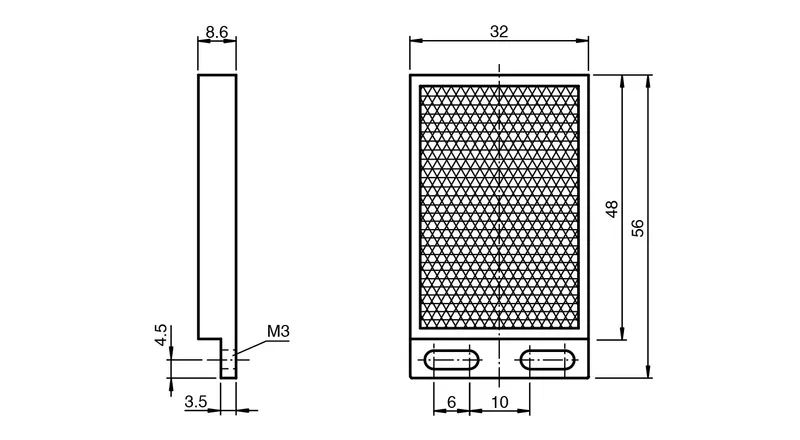

| Dimensions: Height | 8.6 mm |
| Dimensions: Width | 32 mm |
| Dimensions: Length | 56 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
