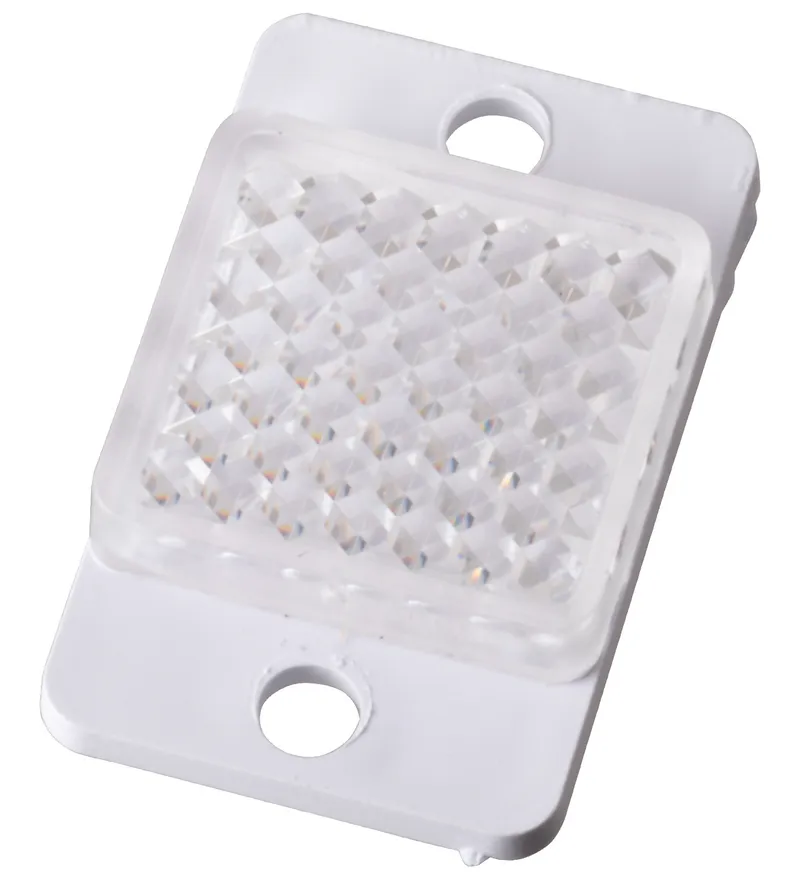

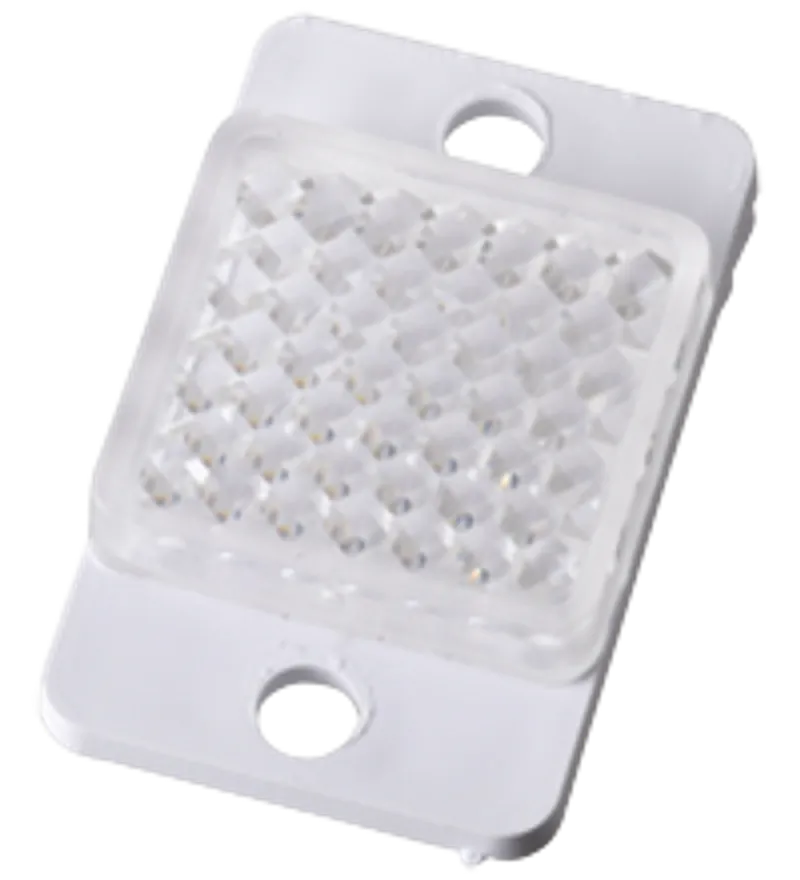

Pepperl Fuchs REF-H32x20
Reflector, rectangular with two mounting holes
- MPN
- REF-H32x20
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs REF-H32x20?
Compact and space-saving design
Mounting holes for simple installation
Reflector, rectangular with two mounting holes, Compact and space-saving design, Mounting holes for simple installation
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 315648 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -40 ... 65 °C (-40 ... 149 °F) |

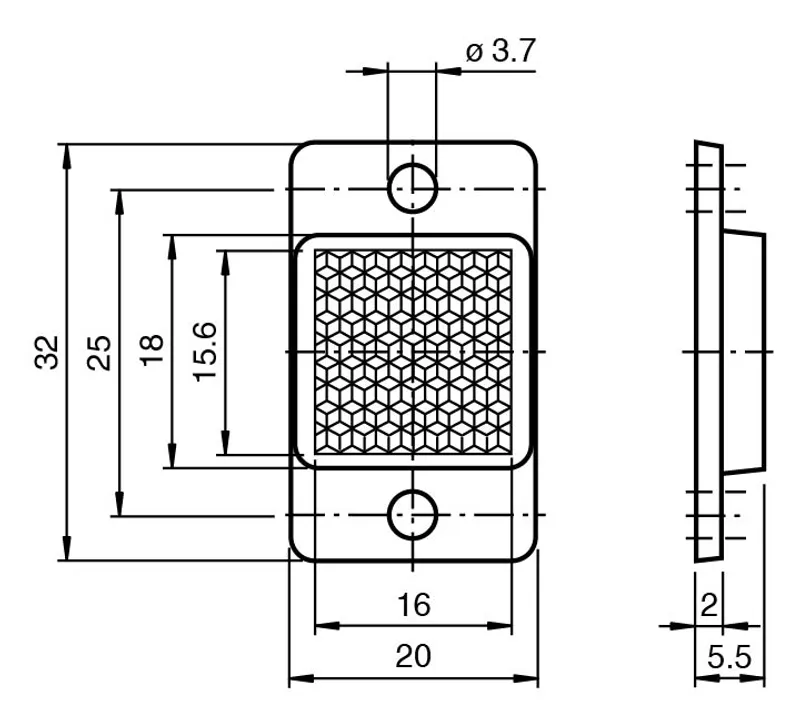

Mechanical specifications
| Material | PMMA / PMMA |
| Dimensions: Height | 5.5 mm |
| Dimensions: Width | 20 mm |
| Dimensions: Length | 32 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
REF-H32x20: frequently asked questions
When can REF-H32x20 be shipped?
REF-H32x20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up REF-H32x20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for REF-H32x20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-H32x20, subject to availability and destination.
