Pepperl Fuchs REF-H50 SET

Reflector

MPN: REF-H50 SET
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs REF-H50 SET?

Mounting holes for simple installation

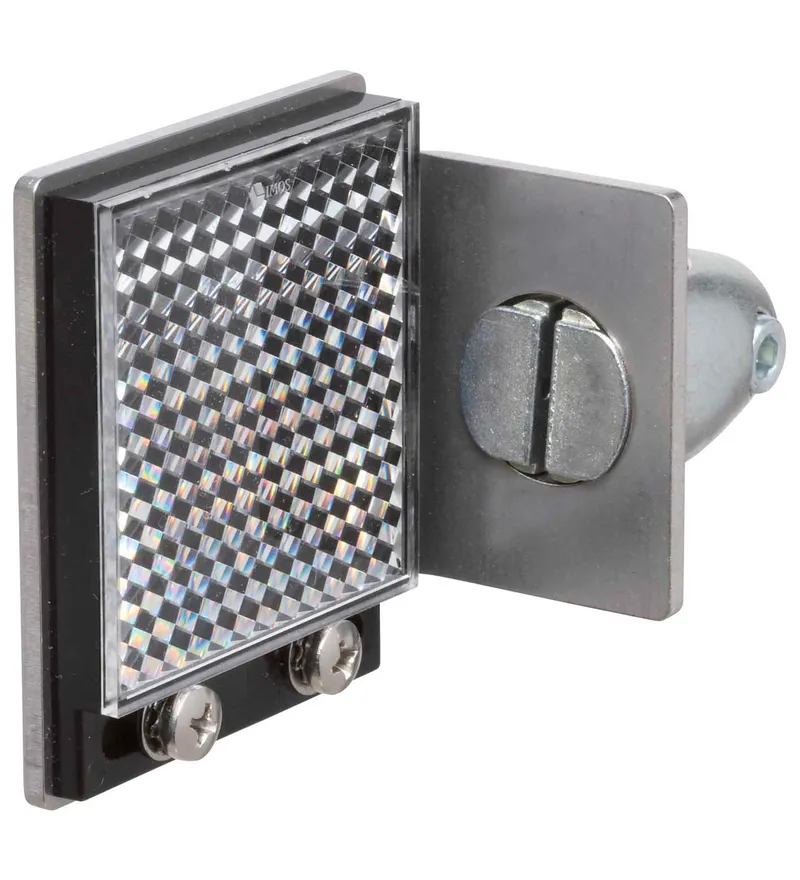

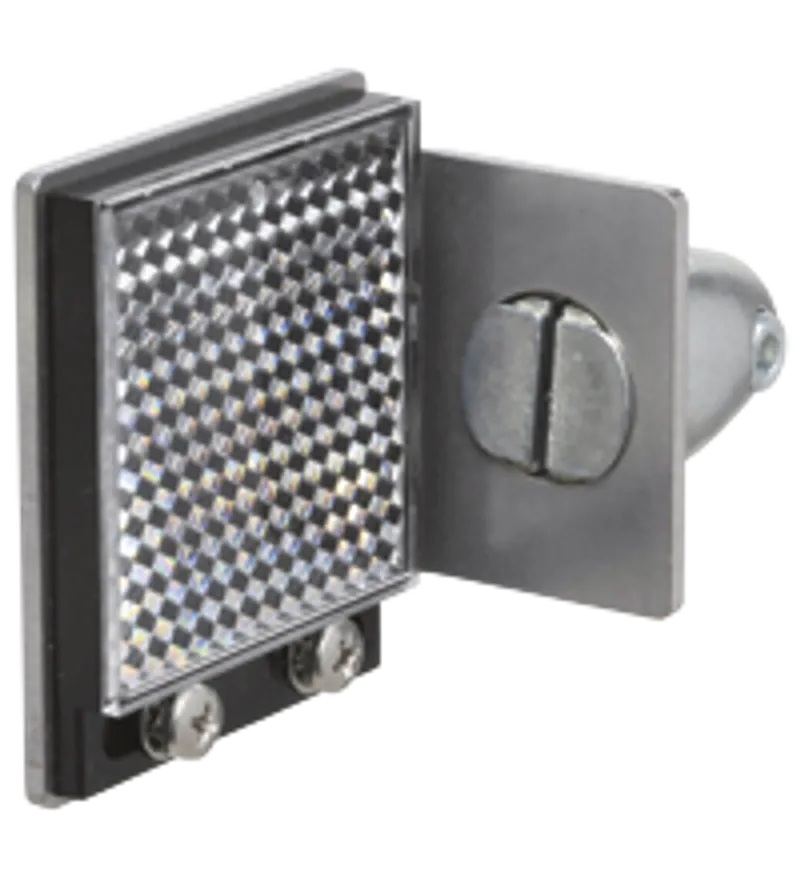

Pre-assembled with metal bracket and clamping cylinder

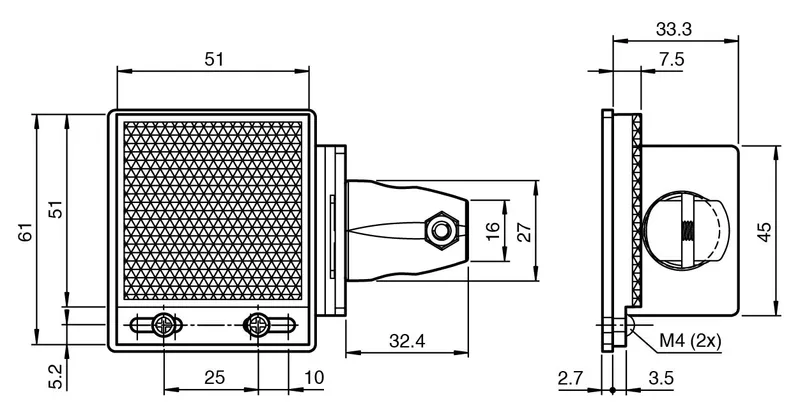

Reflector, rectangular 51 mm x 61 mm, mounting holes, fixing strap, Mounting holes for simple installation, Pre-assembled with metal bracket and clamping cylinder

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70105787
Construction type	rectangular
Accessories provided	Stainless steel bracket with 2 x M4 x 10 cross-slotted pan head screws , stainless steel (ISO 7045) and 2 x flat washers , Stainless steel A2 , outer diameter: 9 mm, inner diameter: 4.3 mm, thickness: 0.8 mm (ISO 7089) and 2 x external tooth lock washers , Stainless steel A2 , outer diameter: 8 mm, inner diameter: 4.3 mm, thickness: 0.5 mm (DIN 6797, shape A) Clamping cylinder, zinc die-cast (factory pre-assembled)
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Material	PMMA/ABS
Dimensions: Height	36 mm
Dimensions: Width	83.4 mm
Dimensions: Length	61 mm
Mounting	mounting holes

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet REF-H50 SETPDF
