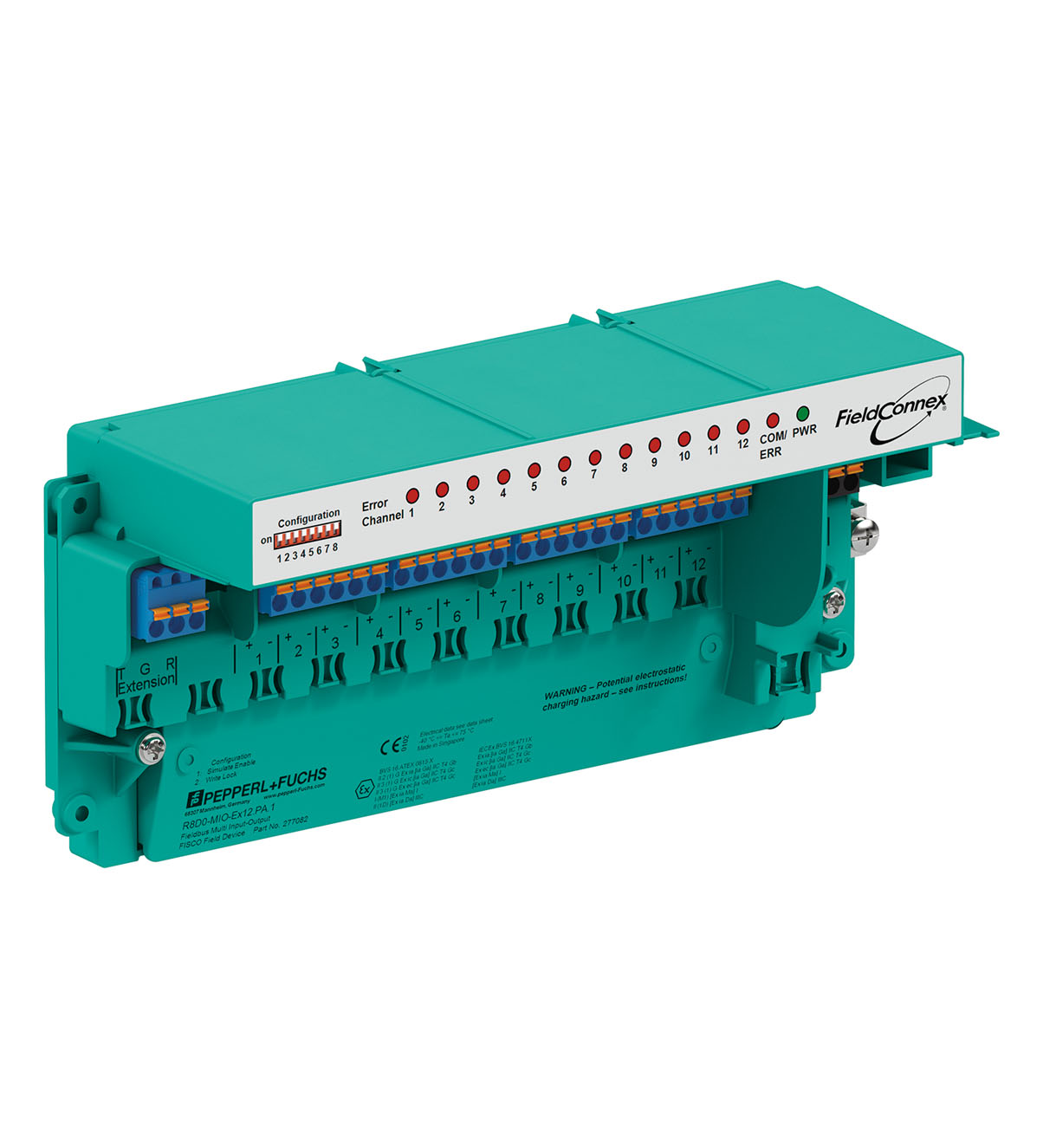

Pepperl Fuchs R8D0-MIO-Ex12.PA* – Multi-Input/Output
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Ethernet Switches |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R8D0-MIO-Ex12.PA* be shipped?
R8D0-MIO-Ex12.PA* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R8D0-MIO-Ex12.PA* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R8D0-MIO-Ex12.PA* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R8D0-MIO-Ex12.PA*, subject to availability and destination.
• For discrete inputs and outputs
• Installation in Zone 1/Div. 1, intrinsically safe
• Sensors in Zone 0/Div. 1
• Connection to fieldbus acc. to FISCO or Entity
• For PROFIBUS PA
• DCS integration via GSD and FDT/DTM
• Monitors sensor condition
• Removable terminals
• Power, Com, Diagnostics, and Error LEDs
• Test points for easy troubleshooting
Multi-input/output for digital signals, module for DIN rail mounting, For discrete inputs and outputs, Installation in Zone 1/Div. 1, intrinsically safe, Sensors in Zone 0/Div. 1, Connection to fieldbus acc. to FISCO or Entity, For PROFIBUS PA, IECEx approval, Dust protection, International, Europe, USA, Canada, Device coupler location: non-explosion hazardous area, Zone 2 - high-power trunk, Zone 1 - high-power trunk, Division 2 - high-power trunk, Division 1 - high-power trunk
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T179189 |
| Design / Mounting | Cabinet installation |
| Installation in hazardous area | Zone 1 / Div. 1 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Fieldbus connection
| Fieldbus type | PROFIBUS PA |
| FDE (Fault Disconnect Equipment) | 6.7 mA |
| Polarity | not polarity sensitive |
| Rated voltage | 9 ... 32 V UN |
| Rated current | max. 23 mA IN |
Indicators/operating means
| LED PWR | green: on, bus voltage existent |
| LED COM ERR | red, continuous lightning: hardware error; red, flashing: no bus activities or bus fault; off: no error |
| LED CHANNEL ERROR | red, flashing: lead breakage/short circuit; off: no error |
| DIP switch | Address setting , write protection , simulation |
Analog input
| Number of inputs | 1 |
| Input type | Frequency input / Counter Input , channel 1 |
| Accuracy | 0.5 % of the measured value |
| Switching frequency | min. 0.1 Hz max. 5 kHz |
| Pulse duration | min. 80 µs |
| Supply voltage | 5 V |
| Supply current | 5 mA |
| Line fault detection | lead breakage , short circuit (not in counter mode) |
Digital input
| Number of inputs | 12 |
| Input type | Sensor input , channels 1, 4, 7, 10 multiplexed , cycle adjustable |
| Supply voltage | 6.6 V |
| Supply current | 5 mA |
| Line fault detection | lead breakage , short circuit |
| Input type | Sensor input , channels 2, 3, 5, 6, 8, 9, 11, 12 multiplexed , cycle fixed |
| Supply voltage | 5 V |
| Supply current | 5 mA |
| Time delay before availability | 2 ms |
| Line fault detection | lead breakage , short circuit |
Digital output
| Number of outputs | 4 |
| Output type | Low power valve , channels 1, 4, 7, 10 |
| Supply voltage | 6.6 V |
| Supply current | 1.5 mA |
| Line fault detection | lead breakage , short circuit |
Galvanic isolation
| Foundation Fieldbus/Field circuit | safe galvanic isolation acc. to EN 60079-11, voltage peak value 375 V |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
| Low voltage: Directive 2014/35/EU | EN 61010-1:2010 |
Standard conformity
| Galvanic isolation | EN 60079-11 |
| Electromagnetic compatibility | NE 21:2011 |
| Degree of protection | IEC/EN 60529 |
| Fieldbus standard | IEC 61158-2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
Ambient conditions
| Ambient temperature | -50 ... 75 °C (-58 ... 167 °F) hazardous area -50 ... 85 °C (-58 ... 185 °F) safe area |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | ≤ 95 % non-condensing |
| Shock resistance | 15 g , 11 ms |
| Vibration resistance | 5 g , 10 ... 150 Hz |
| Pollution degree | 2 |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Connection type | plug-in terminals , spring terminal and screw terminal |
| Core cross section: Bus | up to 2.5 mm2 |
| Core cross section: Inputs | up to 2.5 mm2 |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | approx. 290 g |
| Mounting | DIN rail mounting |
Data for application in connection with hazardous areas
| EU-type examination certificate | BVS 16 ATEX E 075 X |
| Marking | II 2 (1) G Ex ib [ia Ga] IIC T4 Gb , [exsign] II 3 (1) G Ex ic [ia Ga] IIC T4 Gc , [exsign] II 3 (1) G Ex ec [ia Ga] IIC T4 Gc , [exsign] I (M1) [Ex ia Ma] I , [exsign] II (1) D [Ex ia Da] IIIC |
| PROFIBUS PA: Maximum safe voltage Um | 253 V |
| PROFIBUS PA: Voltage Ui | 24 V |
| PROFIBUS PA: Current Ii | 380 mA |
| PROFIBUS PA: Power Pi | 5.32 W |
| Field-side: Voltage Uo | 9 V |
| Field-side: Current Io | 43 mA |
| Field-side: Power Po | 96 mW |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-11:2012 , EN 60079-7:2015 |
International approvals
| FM approval | pending |
| IECEx approval | IECEx BVS 16.0051X |
| Approved for | Ex ib [ia Ga] IIC T4 Gb ,Ex ic [ia Ga] IIC T4 Gc ,Ex ec [ia Ga] IIC T4 Gc ,[Ex ia Da] IIIC , [Ex ia Ma] I |
Certificates and approvals
| Marine approval | pending |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Instruction Manual | PDF · 178 kB |
| Manual | PDF · 5.1 MB |
CAD & dimension drawings
| 3-D model (STEP) R8D0-MIO-Ex12.PA* | STP · 13.7 MB |
Certificates (7)
| China SITIIAS CCC Ex Certificate (2021322314004067 (Singapore)) | PDF · 2.8 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 577 kB |
| Brasil TUV Rheinland Brazil (TÜV 17.2298 X) | PDF · 1.3 MB |
| USA FM (FM19US0077X) | PDF · 1.7 MB |
| Canada FM (FM19CA0042X) | PDF · 1.7 MB |
| Thorsis Techn SIMATIC PDM (SIMATIC PDM - Do-MIO-EX12.PA) | PDF · 108 kB |
| Europe ATEX (BVS 16 ATEX E 075 X) | PDF · 1.7 MB |
