Pepperl Fuchs OGR4000-R305-2EP-IO-0,3M-V1
Retroreflective area sensor
- MPN
- OGR4000-R305-2EP-IO-0,3M-V1
- Category
- Light Grids
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pepperl Fuchs OGR4000-R305-2EP-IO-0,3M-V1?
Retroreflective area sensor with five light beams in a standard photoelectric sensor enclosure
Bright, highly visible transmitter beams guarantee convenient alignment of the sensor
Reliable detection of all surfaces irrespective of the object texture
Reliable small part detection for very flat objects with an irregular shape
Constant object detection from 2 mm within the entire detection area
Retroreflective area sensor, red light, max. detection range 4 m, light field height 60 mm, IO-Link interface, 2 push-pull outputs, fixed cable with M12 plug, Retroreflective area sensor with five light beams in a standard photoelectric sensor enclosure, Bright, highly visible transmitter beams guarantee convenient alignment of the sensor, Reliable detection of all surfaces irrespective of the object texture , Reliable small part detection for very flat objects with an irregular shape
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70154431 |
| Effective detection range | Standard mode: 0 ... 4 m High resolution: 0 ... 2 m |
| Reflector distance | 0.2 ... 4 m H85-2 reflector |
| Threshold detection range | 4 m |
| Sensing range | see table |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Field height | 60 mm |
| Field width | 12 mm |
| Object size | Minimum 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within detection range |
| Number of beams | 5 |
| Opening angle | +/- 2 ° |
| Ambient light limit | EN 60947-5-2 |
| Resolution | see table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 674 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode |
| Function indicator | Yellow LED: Permanently on: light path clear Permanently off: object detected Flashing (8 Hz) - end of compensation |
| Control elements | Teach-In key |
| Control elements | 5-step rotary switch for operating modes selection |
Electrical specifications
| Operating voltage | 10 ... 30 V DC IO-Link mode: 18 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 35 mA at 24 V supply voltage I0 |
| Protection class | III |
Interface
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D Smart Sensor - SSP 2.1 |
| Process data | Input 8 Bit - switching signal 1 Bit - stability alarm 1 Bit - measurement value 6 Bit Output 2 Bit - sensor control function 1 Bit - evaluation control function 1 Bit |
| Vendor ID | 1 (0x0001) |
| Device ID | 0x101001 (1052673) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| SIO mode support | yes |
| Compatible master port type | Class A , Class B (use 3-pole adapter or 3-wire cable) |
Output
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | Standard mode: 500 Hz , High resolution: 250 Hz f |
| Response time | Standard mode: 1 ms , High resolution: 2 ms |
Conformity
| Communication interface | IEC 61131-9 / IO-Link V1.1.4 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) The permissible minimum ambient temperature during teach-in is -30 °C. The permissible temperature change after teach-in is ±20 K. |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |

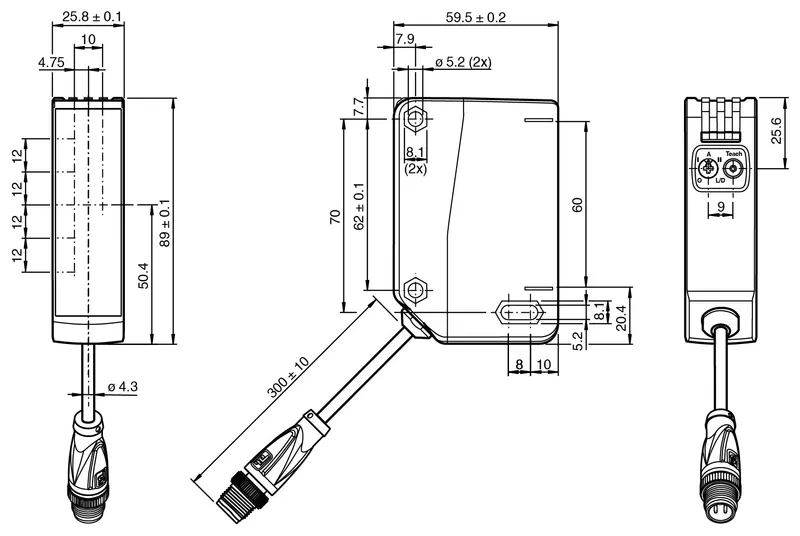

Mechanical specifications
| Degree of protection | IP67 |
| Connection | 300 mm fixed cable with M12 x 1, 4-pin connector |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | Plastic pane |
| Mass | 104 g |
| Dimensions: Height | 89 mm |
| Dimensions: Width | 25.8 mm |
| Dimensions: Depth | 59.5 mm |
No matching specifications
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
OGR4000-R305-2EP-IO-0,3M-V1: frequently asked questions
When can OGR4000-R305-2EP-IO-0,3M-V1 be shipped?
OGR4000-R305-2EP-IO-0,3M-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OGR4000-R305-2EP-IO-0,3M-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OGR4000-R305-2EP-IO-0,3M-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OGR4000-R305-2EP-IO-0,3M-V1, subject to availability and destination.
