MPN	Order code (Pepperl+Fuchs part number)	Threshold detection range	Number of beams	MTTFd	Mass

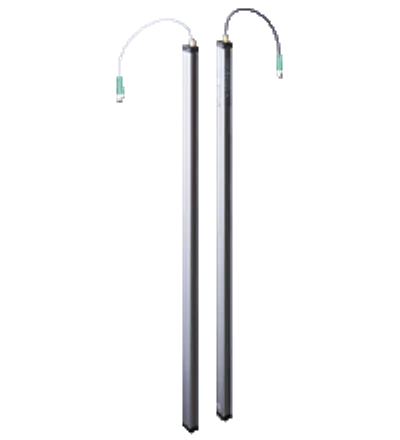

LGM50	251334	7.5 m	see Table 1, max. 61	56 a	see Table 1, max. 1650 g (per profile)
LGM17	251332	7.5 m	see Table 1, max. 193	25 a	see Table 1, max. 1750 g (per profile)
LGM25	251333	7.5 m	see Table 1, max. 129	34 a	see Table 1, max. 1750 g (per profile)
LGM8	251331	7.5 m	see Table 1, max. 253	21 a	see Table 1, max. 1200 g (per profile)

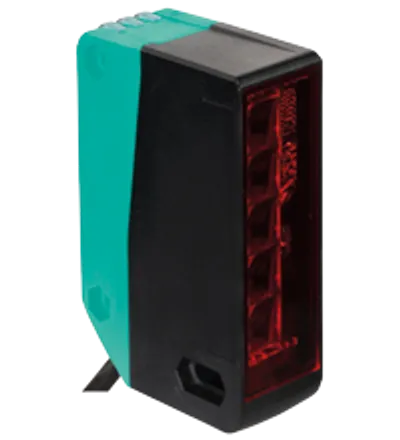

OGR4000-R305-2EP-IO	70154432	4 m	5	674 a	132 g

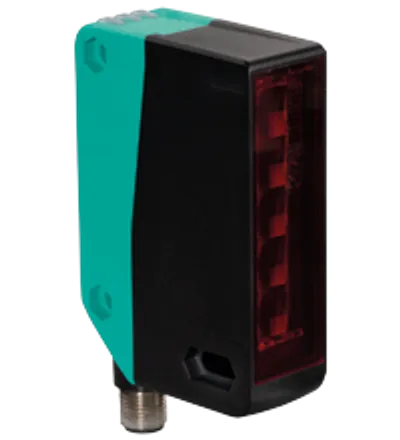

OGR4000-R305-2EP-IO-V1	70154427	4 m	5	674 a	94 g
OGR4000-R305-2EP-IO-0,3M-V1	70154431	4 m	5	674 a	104 g
DG01B-810-18A-5-R1-C3-F07-S15	64321275	14 m	—	—	approx. 586 g
DG01B-810-18A-2-P1-C0-F07-S15	64319657	14 m	—	—	approx. 586 g

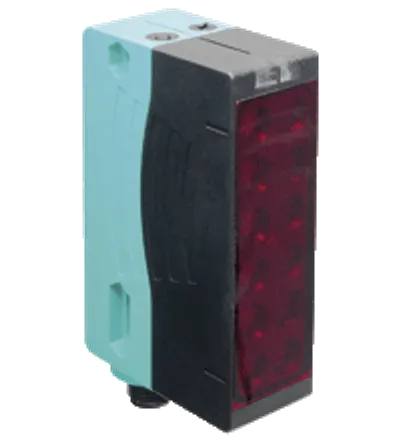

RLG28-55-4921/40a/73c/136	227596	5.6 m	6	310 a	100 g

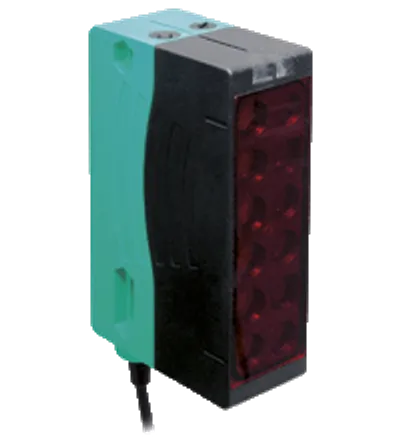

RLG28-55-4921/115b/136	227581	5.6 m	6	310 a	100 g
LGS100	232508	Standard : 7.5 m Option /35: 10 m	see Table 1, max. 31	78 a	see Table 1, max. 1650 g (per profile)
LGS50	232507	Standard : 7.5 m Option /35: 10 m	see Table 1, max. 61	56 a	see Table 1, max. 1650 g (per profile)
LGS25	232506	Standard : 7.5 m Option /35: 10 m	see Table 1, max. 129	34 a	see Table 1, max. 1750 g (per profile)
LGS17	232505	Standard : 7.5 m Option /35: 10 m	see Table 1, max. 193	25 a	see Table 1, max. 1750 g (per profile)
LGS8	232504	Standard : 7.5 m Option /35: 10 m	see Table 1, max. 253	21 a	see Table 1, max. 1200 g (per profile)
RLG28-55-7462	302418	5.6 m	6	310 a	100 g
RLG28-55-7226	291789	1 m	6	310 a	100 g
RLG28-55/40a/73c/136	210597	5.6 m	6	310 a	100 g
RLG28-55/115b/136	217870	5.6 m	6	310 a	100 g
RLG28-55/40a/115b/136	217956	5.6 m	6	310 a	100 g

Lifecycle

Active (current Pepperl+Fuchs product)
