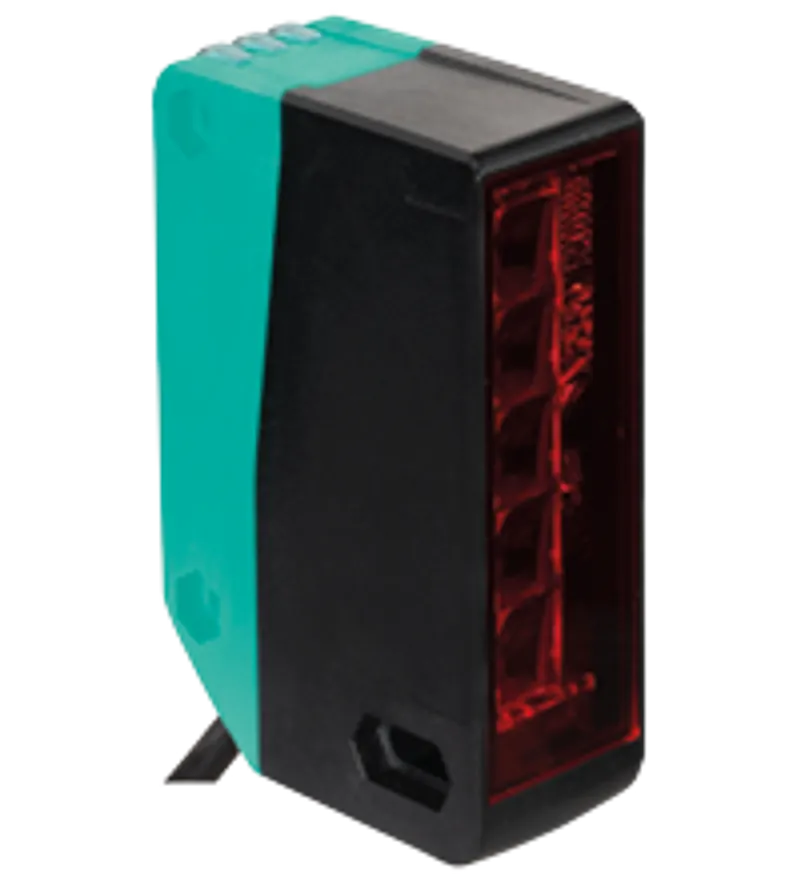

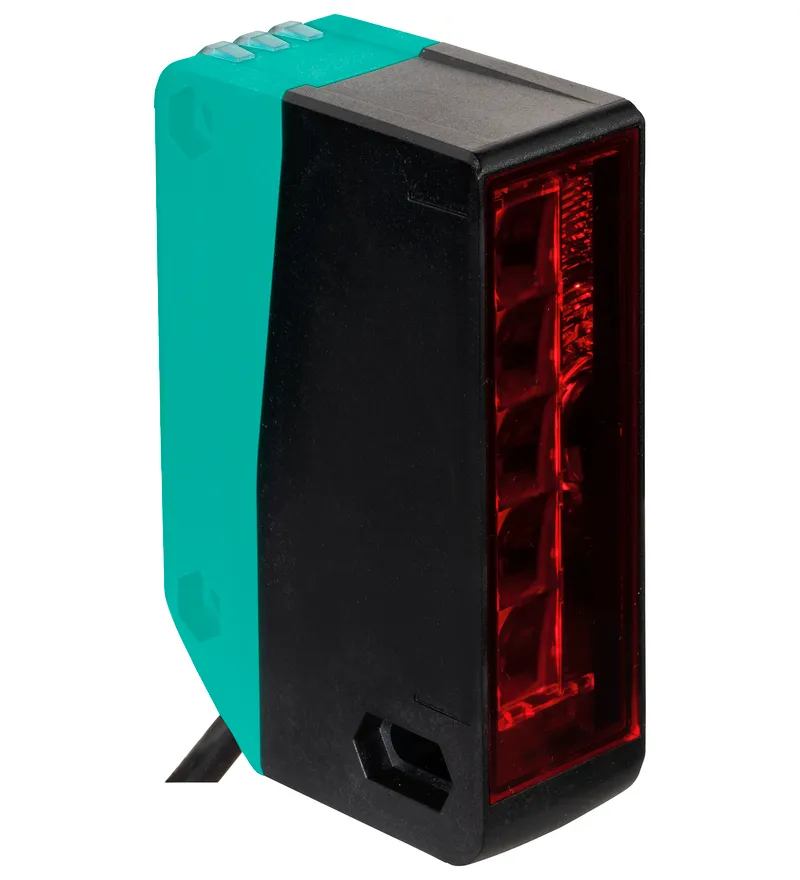

Pepperl Fuchs OGR4000-R305-2EP-IO – Retroreflective area sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Light Grids |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OGR4000-R305-2EP-IO be shipped?
OGR4000-R305-2EP-IO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OGR4000-R305-2EP-IO in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OGR4000-R305-2EP-IO and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OGR4000-R305-2EP-IO, subject to availability and destination.
• Retroreflective area sensor with five light beams in a standard photoelectric sensor enclosure
• Bright, highly visible transmitter beams guarantee convenient alignment of the sensor
• Reliable detection of all surfaces irrespective of the object texture
• Reliable small part detection for very flat objects with an irregular shape
• Constant object detection from 2 mm within the entire detection area
Retroreflective area sensor, red light, max. detection range 4 m, light field height 60 mm, IO-Link interface, 2 push-pull outputs, fixed cable, Retroreflective area sensor with five light beams in a standard photoelectric sensor enclosure, Bright, highly visible transmitter beams guarantee convenient alignment of the sensor, Reliable detection of all surfaces irrespective of the object texture , Reliable small part detection for very flat objects with an irregular shape
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70154432 |
| Effective detection range | Standard mode: 0 ... 4 m High resolution: 0 ... 2 m |
| Reflector distance | 0.2 ... 4 m H85-2 reflector |
| Threshold detection range | 4 m |
| Sensing range | see table |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Field height | 60 mm |
| Field width | 12 mm |
| Object size | Minimum 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within detection range |
| Number of beams | 5 |
| Opening angle | ± 2 ° |
| Ambient light limit | EN 60947-5-2 |
| Resolution | see table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 674 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode |
| Function indicator | Yellow LED: Permanently on: light path clear Permanently off: object detected Flashing (8 Hz) - end of compensation |
| Control elements | Teach-In key |
| Control elements | 5-step rotary switch for operating modes selection |
Electrical specifications
| Operating voltage | 10 ... 30 V DC IO-Link mode: 18 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 35 mA at 24 V supply voltage I0 |
| Protection class | III |
Interface
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D Smart Sensor - SSP 2.1 |
| Process data | Input 8 Bit - switching signal 1 Bit - stability alarm 1 Bit - measurement value 6 Bit Output 2 Bit - sensor control function 1 Bit - evaluation control function 1 Bit |
| Vendor ID | 1 (0x0001) |
| Device ID | 0x101001 (1052673) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| SIO mode support | yes |
| Compatible master port type | Class A , Class B (use 3-pole adapter or 3-wire cable) |
Output
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q - BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - WH: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | Standard mode: 500 Hz , High resolution: 250 Hz f |
| Response time | Standard mode: 1 ms , High resolution: 2 ms |
Conformity
| Communication interface | IEC 61131-9 / IO-Link V1.1.4 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) The permissible minimum ambient temperature during teach-in is -30 °C. The permissible temperature change after teach-in is ±20 K. |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | Plastic pane |
| Mass | 132 g |

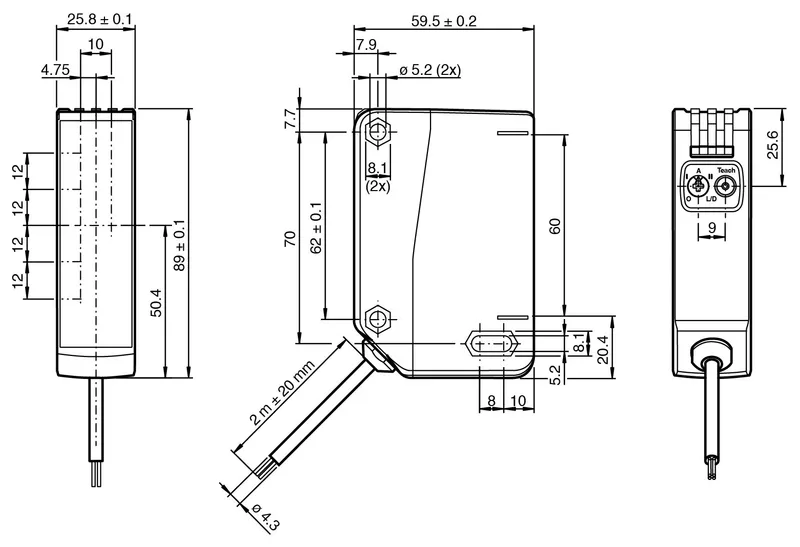

| Dimensions: Height | 89 mm |
| Dimensions: Width | 25.8 mm |
| Dimensions: Depth | 59.5 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OGR4000-R305-2EP-IO | |
| Instruction Manual | PDF · 150 kB |
| Manual | PDF · 2.6 MB |
| Parameter Datasheet | PDF · 227 kB |
CAD & dimension drawings
| EPLAN macro OGR4000-R305-2EP-IO | EDZ · 105 kB |
| 3-D model (STEP) OGR4000-R305-2EP-IO | STP · 1.6 MB |
Certificates (3)
More Pepperl Fuchs parts
Available on requestReflective tape OFR-76/35 10pcsAvailable on requestReflective tape OFR-A4
Available on requestReflective tape OFR-MCS-400/18Available on requestReflective tape OFR-MCS-A4

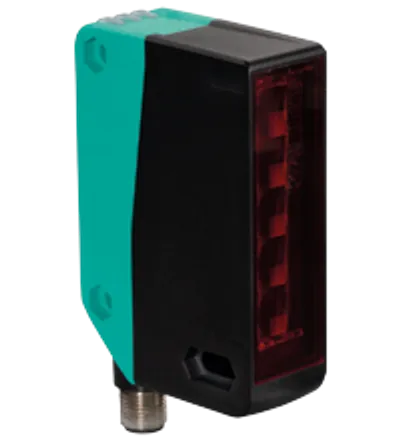

Available on requestRetroreflective area sensor OGR4000-R305-2EP-IO-0,3M-V1
