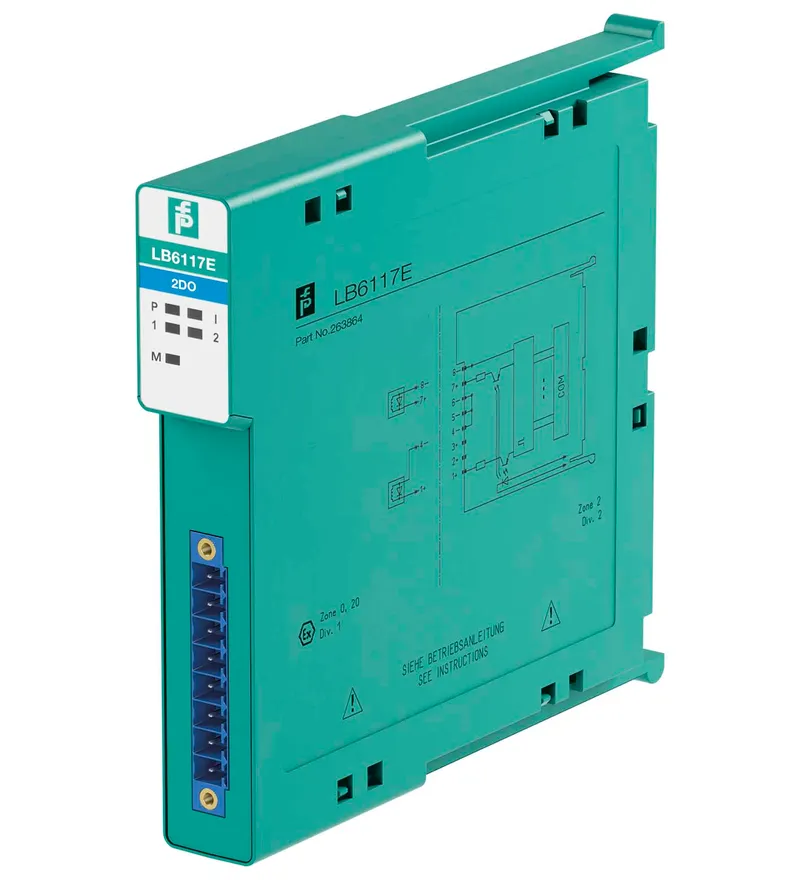

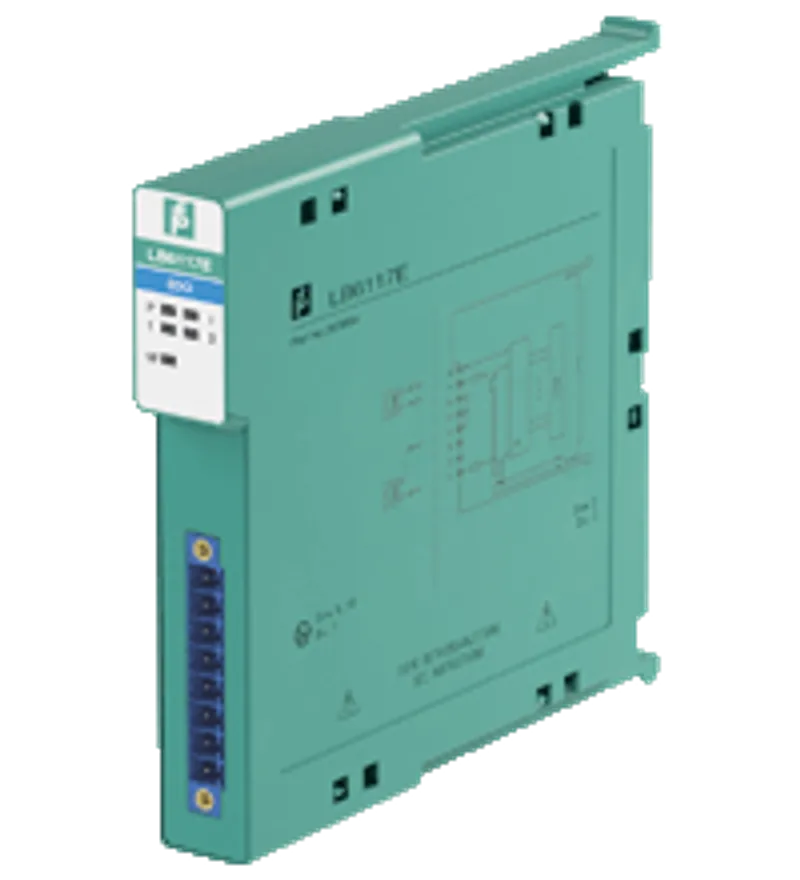

Pepperl Fuchs LB6117E

Digital Output with Shutdown Input

MPN: LB6117E
Category: LB (Zone 2, Class I/Div. 2)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs LB6117E?

2-channel

Outputs Ex ia

Line fault detection switched on and off

Mounting in Zone 2, Class I/Div.2 or in the safe area

Positive or negative logic selectable

Simulation mode for service operations (forcing)

Permanently self-monitoring

Output with watchdog

Output with bus-independent safety shutdown

Module can be exchanged under voltage (hot swap)

2-channel, Outputs Ex ia, Line fault detection switched on and off, Mounting in Zone 2, Class I/Div.2 or in the safe area, Explosion protection: Ex ia

Specifications

Slots

Order code (Pepperl+Fuchs part number)	263864
Occupied slots	1
Lifecycle	Active (current Pepperl+Fuchs product)

Supply

Connection	backplane bus
Rated voltage	Use only in connection with the power supplies LB9*** Ur
Power dissipation	1.7 W
Power consumption	2.7 W

Internal bus

Connection	backplane bus
Interface	manufacturer-specific bus to standard com unit

Digital output

Number of channels	2
Suitable field devices: Field device	Solenoid Valve
Suitable field devices: Field device [2]	audible alarm
Suitable field devices: Field device [3]	visual alarm
Connection	channel I: 1+, 4/5/6/8-; channel II: 7+, 4/5/6/8-
Internal resistor	131 Ω , both channels parallel 66 Ω Ri
Current limit	50 mA both channels parallel 100 mA Imax
Open loop voltage	16.5 V , both channels parallel 16.5 V Us
Line fault detection	can be switched on/off for each channel via configuration tool also when turned off (every 2.5 s the valve is turned on for 2 ms)
Short-circuit	< 50 Ω
Open-circuit	> 10 kΩ
Response time	10 ms (depending on bus cycle time)
Watchdog	within 0.5 s the device goes in safe state, e.g. after loss of communication

Indicators/settings

LED indication	Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1, 2) red: line fault (lead breakage or short circuit) , yellow: state of digital I/O (0/1) Mode LED (M) white: Parallel operation of outputs
Coding	optional mechanical coding via front socket

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61326-1:2013

Conformity

Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78

Ambient conditions

Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3

Mechanical specifications

Degree of protection	IP20 when mounted on backplane
Connection	removable front connector with screw flange (accessory) wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Mass	approx. 150 g
Dimensions: Height	100 mm
Dimensions: Width	16 mm
Dimensions: Depth	102 mm

Data for application in connection with hazardous areas

EU-type examination certificate	EXA 16 ATEX 0025X
Marking	II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] II (1) D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Output	Ex ia
Voltage	17.8 V Uo
Current	162 mA Io
Power	721 mW Po
Internal capacitance	12 nF Ci
Internal inductance	0 mH Li
Output (both channels parallel): Voltage	17.8 V Uo
Output (both channels parallel): Current	324 mA Io
Output (both channels parallel): Power	1442 mW Po
Output (both channels parallel): Internal capacitance	24 nF Ci
Output (both channels parallel): Internal inductance	0 mH Li
Galvanic isolation: Output/power supply, internal bus	safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V
Directive conformity: Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010

International approvals

ATEX approval	EXA 16 ATEX 0025X
UL approval	E106378
Control drawing	116-0426 (cULus)
IECEx approval	IECEx EXA 16.0010X
Approved for	Ex nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I

General information

System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
