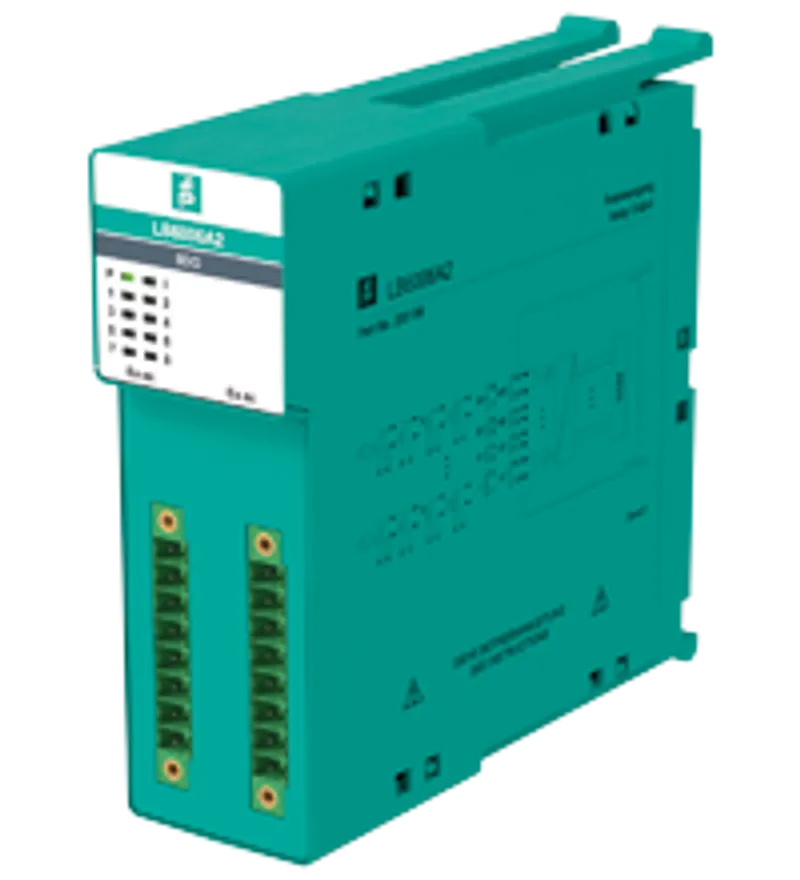

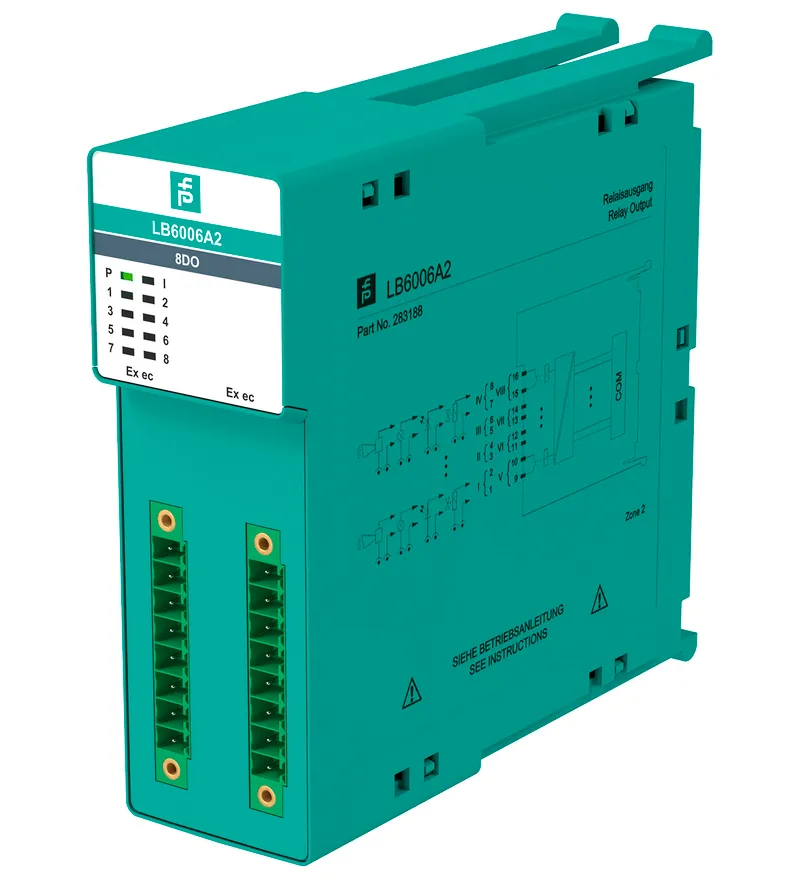

What is the Pepperl Fuchs LB6006A2?
8-channel
Installation in Zone 2 or safe area
Positive or negative logic selectable
Simulation mode for service operations (forcing)
Permanently self-monitoring
Output with watchdog
Output with bus-independent safety shutdown
8-channel, Installation in Zone 2 or safe area, Positive or negative logic selectable, Simulation mode for service operations (forcing), Explosion protection: Ex nA nC
Specifications
Slots
| Order code (Pepperl+Fuchs part number) | 283188 |
| Occupied slots | 2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Supply
| Connection | backplane bus |
| Rated voltage | 12 V DC +4/-2 % , only in connection with the power supply LB9006C Ur |
| Power dissipation | 2.4 W |
| Power consumption | 1.4 W |
Internal bus
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
Digital output
| Number of channels | 8 |
| Field device interface: Connection | Relay output |
| Connection | channel I: 1-2 NO; channel II: 3-4 NO; channel III: 5-6 NO; channel IV: 7-8 NO; channel V: 9-10 NO; channel VI: 11-12 NO; channel VII: 13-14 NO; channel VIII: 15-16 NO |
| Relay: Switching voltage | 30 V DC |
| Relay: Switching current | 1 A DC |
| Relay: Switch power | 30 W |
| Relay: Minimum load | 5 V 10 mA |
| Relay: Electrical life | 0.1 million switching cycles at maximum load and temperature |
| Relay: Contact Material | AgPd gold plated |
| Response time | 20 ms (depending on bus cycle time) |
| Watchdog | within 0.5 s the device goes in safe state, e.g. after loss of communication |
Indicators/settings
| LED indication | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: Communication error or active safety shutdown Status LED (1-8) line fault (lead breakage or short circuit) , yellow: Channel status |
| Coding | optional mechanical coding via front socket |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1 |
| Low voltage: Directive 2014/35/EU | EN 61010-1 , EN 60664-1 |
Conformity
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Relative humidity | EN 60068-2-78 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles |
Mechanical specifications
| Degree of protection | IP20 when mounted on backplane |
| Connection | removable front connector with screw flange (accessory) wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 160 g |
| Dimensions: Height | 100 mm |
| Dimensions: Width | 32.5 mm |
| Dimensions: Depth | 102 mm |
Data for application in connection with hazardous areas
| EU-type examination certificate | FIDI 23 ATEX 0078 X |
| Marking | II 3G Ex ec nC IIC T4 Gc |
| Galvanic isolation: Output/power supply, internal bus | basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15 |
International approvals
| ATEX approval | FIDI 23 ATEX 0078 X |
| IECEx approval: IECEx certificate | IECEx FIDI 23.0010X |
| IECEx approval: IECEx marking | Ex ec nC IIC T4 Gc |
General information
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
