Pepperl Fuchs FB9262BP24200.2 – Extension Backplane
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | FB (Zone 1) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FB9262BP24200.2 be shipped?
FB9262BP24200.2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FB9262BP24200.2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FB9262BP24200.2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FB9262BP24200.2, subject to availability and destination.

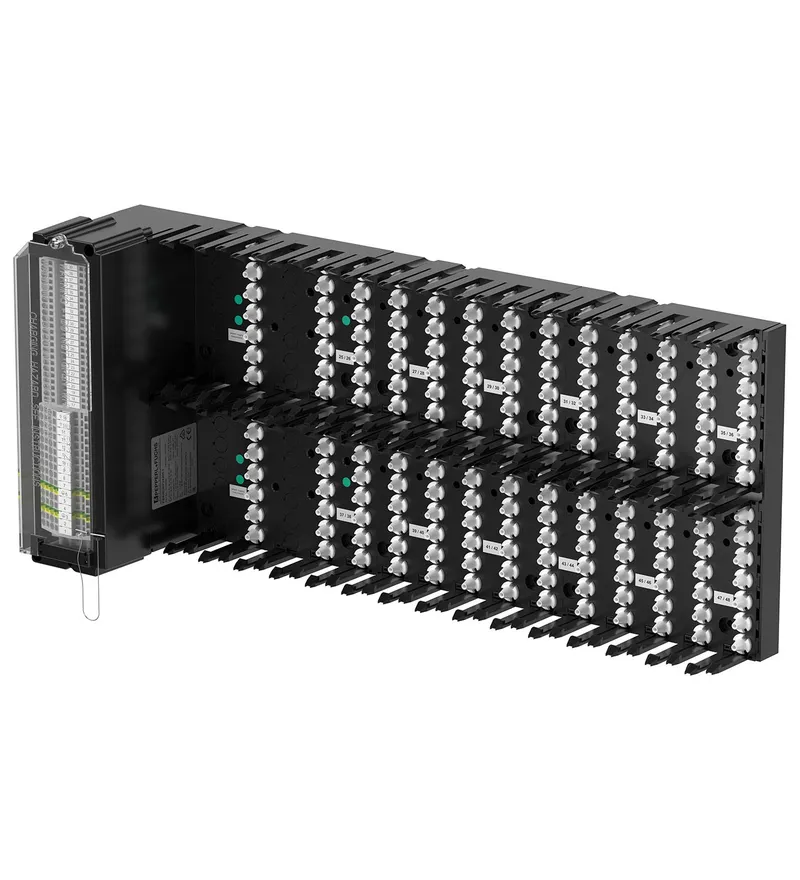

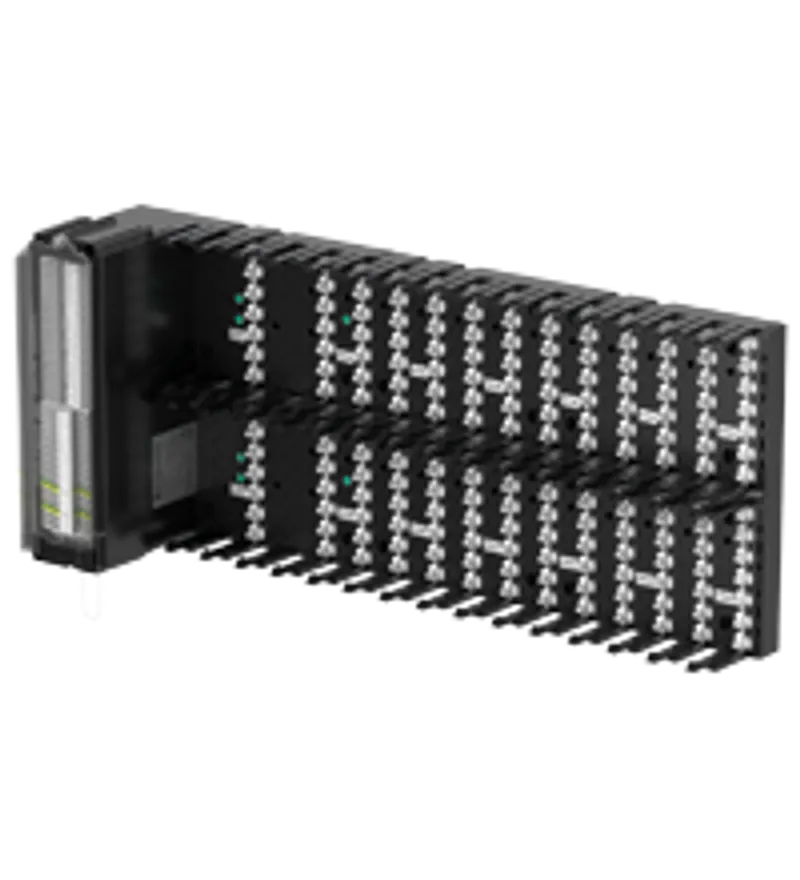

• Extension backplane for FB system
• Max. 24 slots for I/O modules
• Installation in Zone 1
• For PROFIBUS, PROFINET, MODBUS RTU or MODBUS TCP
Extension backplane for FB system, Max. 24 slots for I/O modules, Installation in Zone 1, For PROFIBUS, PROFINET, MODBUS RTU or MODBUS TCP
Specifications
Slots
| Order code (Pepperl+Fuchs part number) | 70119398 |
| Bus coupler | 0 |
| Bus termination | 0 |
| Supply | 2 |
| I/O modules (single width) | max. 24 |
| I/O modules (dual width) | max. 12 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Supply
| Maximum safe voltage Um | 60 V DC (SELV/PELV) / 253 V AC, depending on power supply |
| Input voltage range | 18 ... 32 V DC (SELV/PELV) / 95 ... 253 V AC; depends on power supply U |
| Redundancy | yes |
Fieldbus connection
| Fieldbus type | PROFIBUS, PROFINET, MODBUS RTU or MODBUS TCP |
| Redundancy | yes |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Conformity
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
Mechanical specifications
| Degree of protection | IP30 |
| Mass | approx. 2713 kg , without modules |

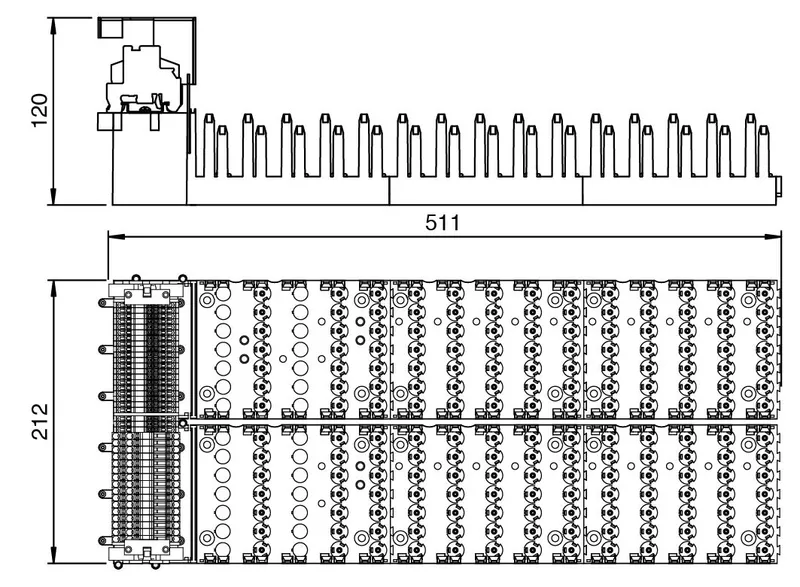

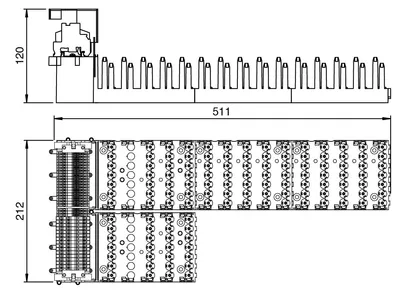

| Dimensions | (W x H x D) 511 x 212 x 120 mm , without modules |
| Height | 211.8 mm |
| Width | 510.7 mm |
| Depth | 120 mm |
Data for application in connection with hazardous areas
| EU-type examination certificate | BVS 11 ATEX E 041 X |
| Marking | II 2 G Ex d e m IIC T4 |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017 |
International approvals
| IECEx approval | BVS 11.0019X |
| Approved for | International: Ex db eb mb IIC T4 Gb ; Ex db eb IIC T4 Gb |
| INMETRO approval | Brazil: TÜV 14.1598X |
General information
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
