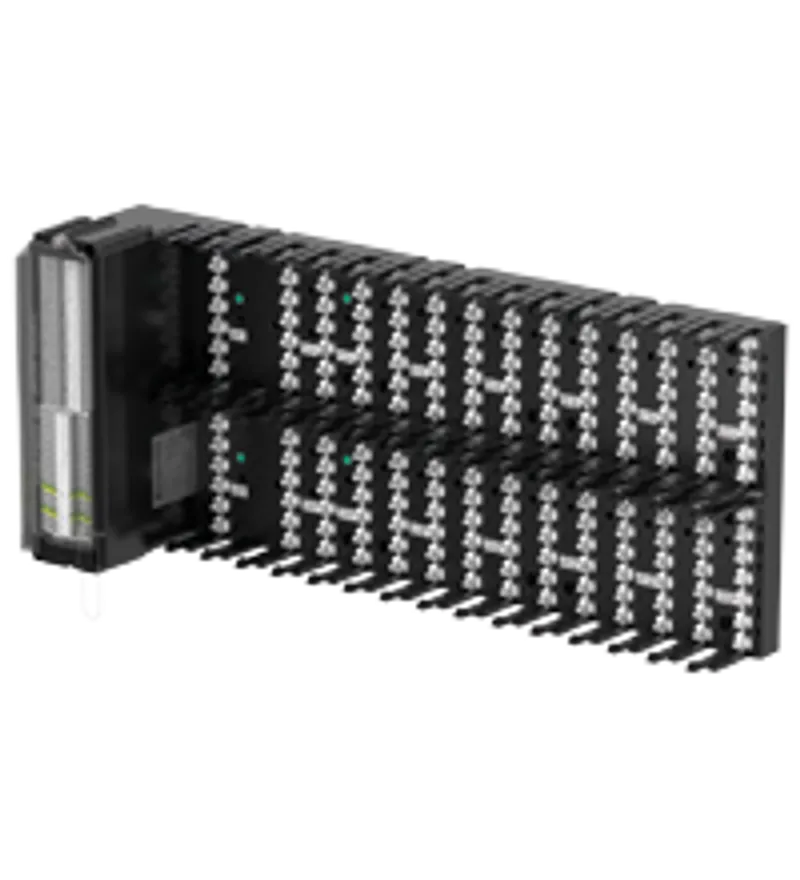

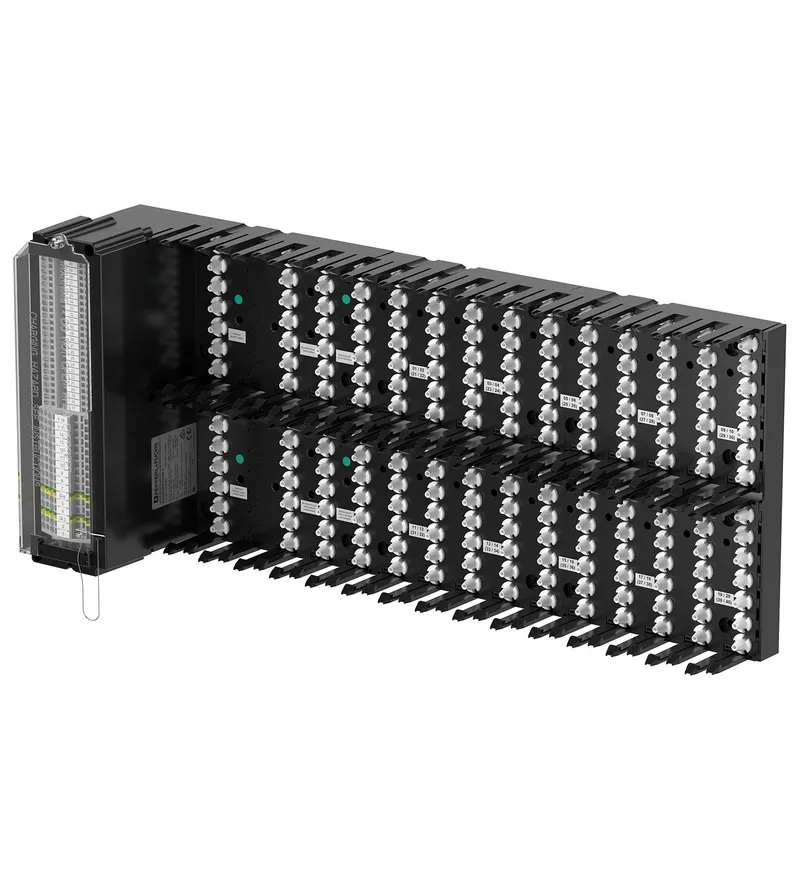

Pepperl Fuchs FB9262BP20220.2 – Universal Backplane
MPN: FB9262BP20220.2 · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | FB (Zone 1) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FB9262BP20220.2 be shipped?
FB9262BP20220.2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FB9262BP20220.2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FB9262BP20220.2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FB9262BP20220.2, subject to availability and destination.
• Universal backplane
• Max. 20 slots for I/O modules
• Redundancy (field bus and power supply)
• Installation in Zone 1
• For PROFIBUS, PROFINET, MODBUS RTU or MODBUS TCP
Universal backplane, Max. 20 slots for I/O modules, Redundancy (field bus and power supply), Installation in Zone 1
Specifications
Slots
| Order code (Pepperl+Fuchs part number) | 70119395 |
| Bus coupler | 2 |
| Bus termination | 2 |
| Supply | 2 |
| I/O modules (single width) | max. 20 |
| I/O modules (dual width) | max. 10 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Supply
| Maximum safe voltage Um | 60 V DC (SELV/PELV) / 253 V AC, depending on power supply |
| Input voltage range | 18 ... 32 V DC (SELV/PELV) / 95 ... 253 V AC; depends on power supply U |
| Redundancy | yes |
Fieldbus connection
| Fieldbus type | PROFIBUS, PROFINET, MODBUS RTU or MODBUS TCP |
| Redundancy | yes |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Conformity
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
Mechanical specifications
| Degree of protection | IP30 |
| Mass | approx. 2133 g , without modules |

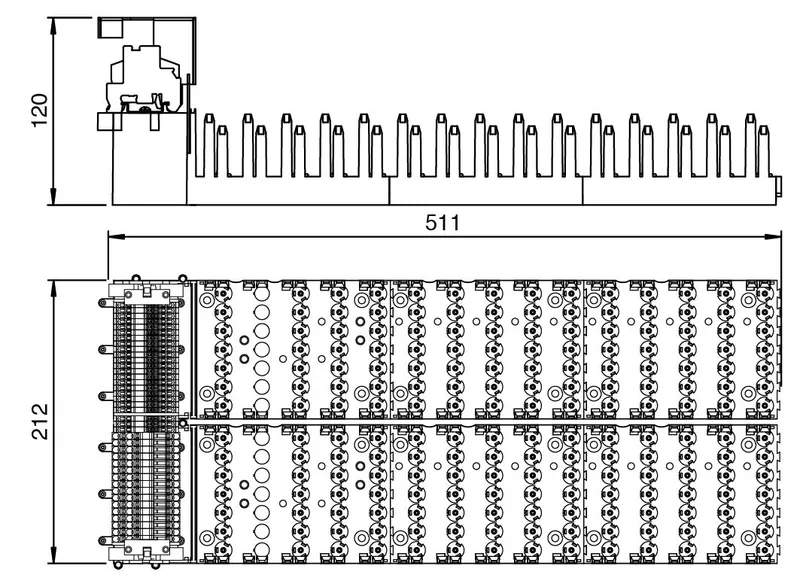

| Dimensions | (W x H x D) 511 x 212 x 120 mm , without modules |
| Height | 211.8 mm |
| Width | 510.7 mm |
| Depth | 120 mm |
Data for application in connection with hazardous areas
| EU-type examination certificate | BVS 11 ATEX E 041 X |
| Marking | II 2 G Ex d e m IIC T4 |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017 |
International approvals
| ATEX approval | BVS 11 ATEX E 041 X |
| IECEx approval: IECEx certificate | IECEx BVS 11.0019X |
| IECEx approval: IECEx marking | Ex db eb mb IIC T4 Gb Ex db eb IIC T4 Gb |
General information
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FB9262BP20220.2 | |
| Instruction Manual | PDF · 181 kB |
| Brief Instructions | PDF · 94 kB |
CAD & dimension drawings
| 3-D model (STEP) FB9262BP20220.2 | STP · 4.3 MB |
Certificates (5)
| DNV Marine (TAA0000034) | PDF · 97 kB |
| Brasil TUV Rheinland Brazil (TÜV 24.0796 X) | PDF · 468 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 232 kB |
| China SITIIAS CCC Ex Certificate (2022322308004844 (Singapore)) | PDF · 1.1 MB |
| Europe DEKRA EXAM ATEX Category 2 G (BVS 11 ATEX E 041X) | PDF · 2.7 MB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestFB Remote I/O Field Unit FB9241-T8*-*-***-**-*-Y*MPN: FB9241-T8*-*-***-**-*-Y* · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestFB Remote I/O Field Unit FB9248-T7*-*-***-**-*-Y*MPN: FB9248-T7*-*-***-**-*-Y* · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestFB Remote I/O Field Unit FB9248-T8*-*-***-**-*-Y*MPN: FB9248-T8*-*-***-**-*-Y* · Pepperl Fuchs
Price on request
Request a quote
Available on requestUniversal Backplane FB9262BP10220.2MPN: FB9262BP10220.2 · Pepperl Fuchs
Price on request
Request a quote
Available on requestBase Backplane FB9262BP24110.2MPN: FB9262BP24110.2 · Pepperl Fuchs
Price on request
Request a quote

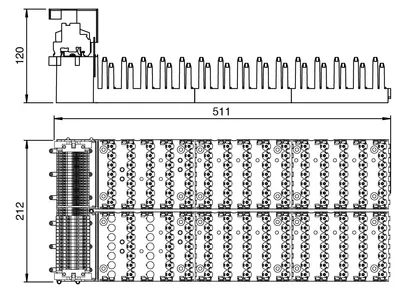

Available on requestBase Backplane FB9262BP24110.RMPN: FB9262BP24110.R · Pepperl Fuchs
