Pepperl Fuchs FB9271BP00200.0 – Backplane

MPN: FB9271BP00200.0 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	FB (Zone 1)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FB9271BP00200.0 be shipped?

FB9271BP00200.0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FB9271BP00200.0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FB9271BP00200.0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FB9271BP00200.0, subject to availability and destination.

• Backplane for FB9205 Power Supply

• Slots for 2 power supplies

• Powert supplies ca be operated separately or parallel

• Redundant supply

• Installation in Zone 1

Backplane for FB9205 Power Supply, Slots for 2 power supplies, Powert supplies ca be operated separately or parallel, Redundant supply

Specifications

Slots

Order code (Pepperl+Fuchs part number)	276979
Supply	2
Lifecycle	Active (current Pepperl+Fuchs product)

Supply

Maximum safe voltage Um	253 V AC
Input voltage range	90 ... 253 V AC U
Redundancy	yes

Output

Voltage	non-redundant: 24 V ; redundant: 23 V
Current	non-redundant: 1.2 A ; redundant: 1.2 A

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61326-1:2013

Conformity

Degree of protection

EN 60529

Ambient conditions

Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance

Mechanical specifications

Connection type	Terminals
Core cross section	0.5 ... 2.5 mm2
Degree of protection	IP30
Mass	approx. 512 g , without modules

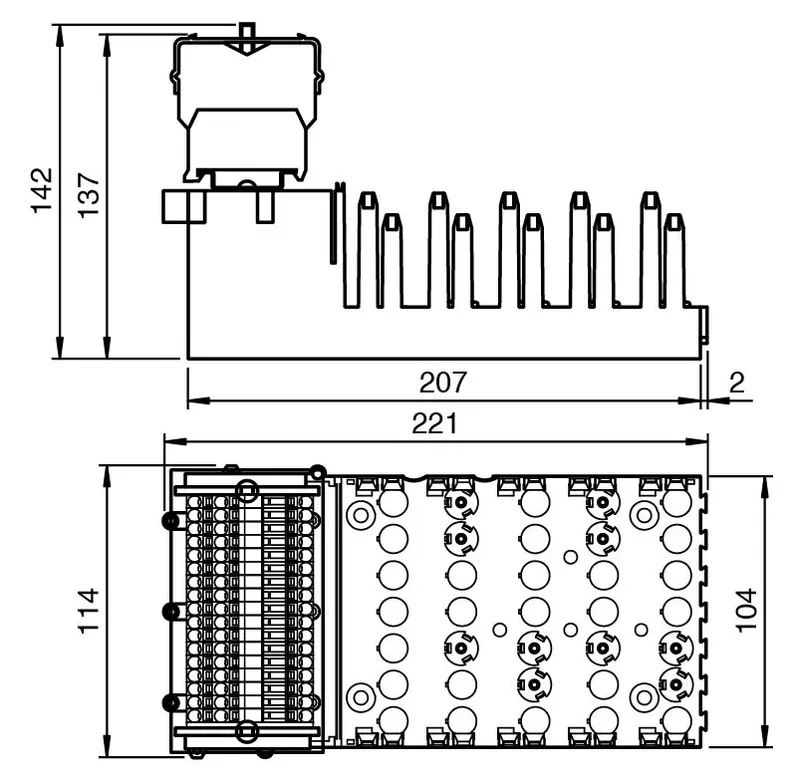

Dimensions	(l x w x h) 207 x 110 x 137 mm , without modules
Height	137 mm
Width	110 mm
Length	207 mm

Data for application in connection with hazardous areas

EU-type examination certificate	BVS 11 ATEX E 041 X
Marking	II 2G Ex db eb IIC T4 Gb
Directive conformity: Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017

International approvals

IECEx approval: IECEx certificate	BVS 11.0019X
IECEx approval: IECEx marking	Ex db eb IIC T4 Gb
INMETRO approval	Brazil: TÜV 14.1598X

General information

Scope of delivery	Backplane (without modules and surrounding enclosure)
Supplementary information	Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
