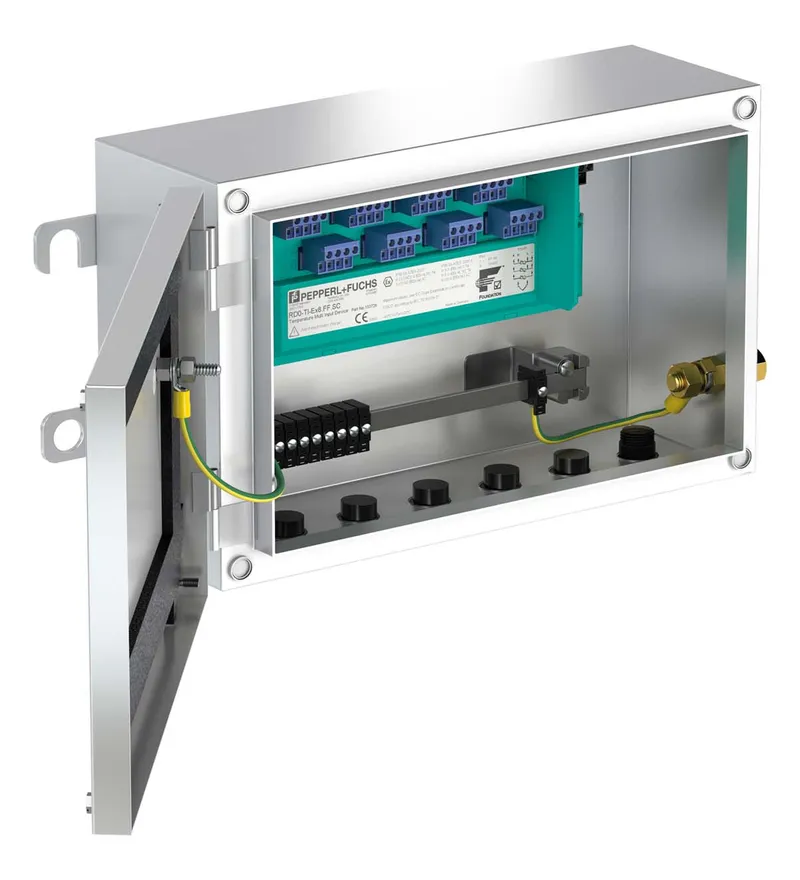

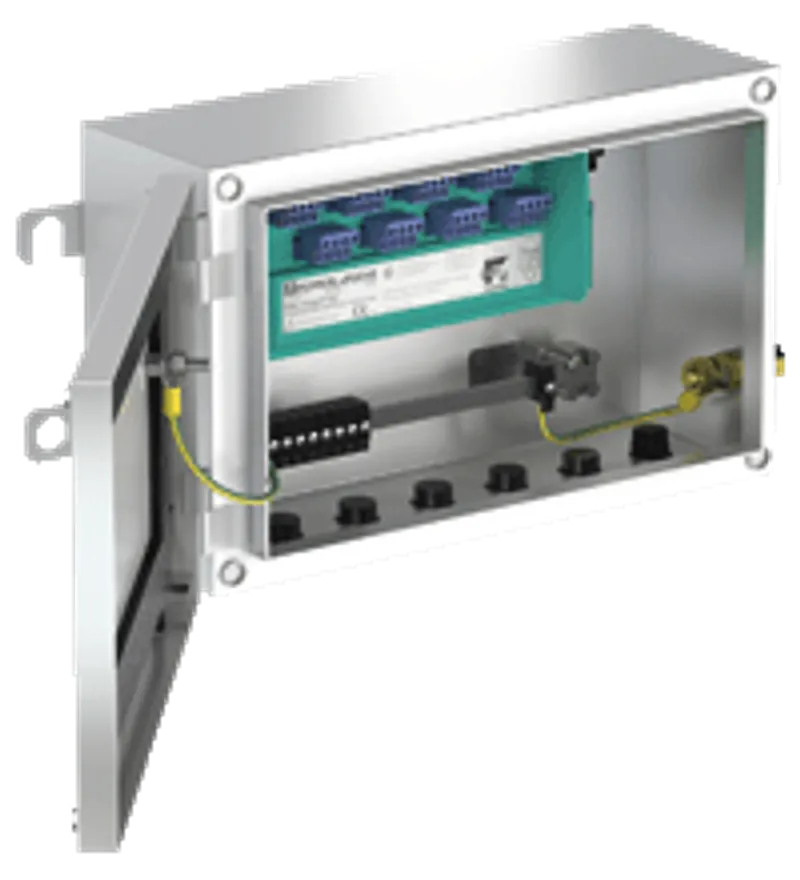

Pepperl Fuchs F.TI0.S12.*08.F.0.***.***.**00 – Temperature Multi-Input Junction Box, Stainless Steel
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Ethernet Switches |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can F.TI0.S12.*08.F.0.***.***.**00 be shipped?
F.TI0.S12.*08.F.0.***.***.**00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up F.TI0.S12.*08.F.0.***.***.**00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for F.TI0.S12.*08.F.0.***.***.**00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for F.TI0.S12.*08.F.0.***.***.**00, subject to availability and destination.
• 8 channel universal temperature interface
• Stainless steel, electropolished, IP66
• Configurable cable entries for bus lines and field signal lines
• International approvals
• For FOUNDATION Fieldbus H1
• Installation in Zone 1 and Zone 2
8 channel universal temperature interface, Stainless steel, electropolished, IP66, Configurable cable entries for bus lines and field signal lines, International approvals, For FOUNDATION Fieldbus H1, Device coupler location: non-explosion hazardous area, Zone 2 - high-power trunk, Zone 1 - high-power trunk, Zone 1/2 - intrinsically safe high-power trunk, Zone 1 - intrinsically safe trunk, Device coupler location [2]: Zone 2 - high-power trunk
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T47956 |
| Design / Mounting | Outside installation |
| Installed components | Temperature Multi-Input Device RD0-TI-Ex8.FF.ST For technical data on installed electronic component see data sheet. |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Conformity
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
Ambient conditions
| Ambient temperature | -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | < 75 % (annual mean) < 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
Mechanical specifications
| Enclosure cover | detachable hinged door with captive retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material: Housing | stainless steel 1.4404 / AISI 316L |
| Material: Surface | electropolished |
| Material: Seal | Neoprene, fire-resistant, one piece |
| Material: Material thickness | enclosure body, enclosure cover, mounting plate: 1.5 mm gland plate: 3.0 mm |
| Dimensions | (W x H x D) 300 x 200 x 120 mm (1 x RD0-TI-Ex8.FF.ST) |
| Mounting | thru-holes Ø10 mm |
| Grounding | grounding bolt M10 , brass |
Data for application in connection with hazardous areas
| EU-Type Examination Certificate | PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking | II 2(1)G Ex ia [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db |
| Certificate | PTB 17 ATEX 1011 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking | II 3G Ex ic IIC T4 Gc [exsign] II 3G Ex nA IIC T4 Gc [exsign] II 3D Ex tc IIIC T135°C Dc |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
International approvals
| IECEx approval | IECEx PTB 07.0036 X , Zone 1 , suitable Junction Box on request IECEx PTB 09.0016 X , Zone 2 , suitable Junction Box on request |
| INMETRO | TÜV 13.1143 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Instruction Manual | PDF · 143 kB |
| Instruction Manual | PDF · 142 kB |
| Manual | PDF · 784 kB |
Certificates (3)
| Europe PTB ATEX Category 2 D ATEX Category 2 G (PTB 07 ATEX 1061 X) | PDF · 443 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 134 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 134 kB |
More Pepperl Fuchs parts
Available on requestSwitch Disconnectors Ex d F* SD
Available on requestTerminal Boxes Ex d, Aluminum F* TB

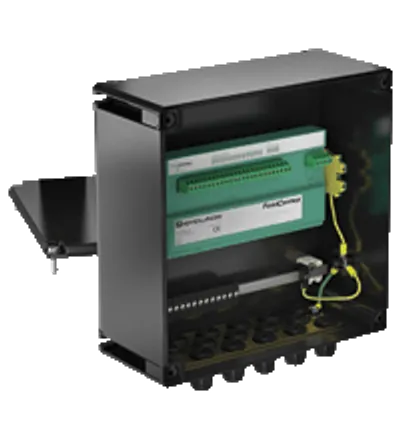

Available on requestSegment Protector Junction Box, Polyester (GRP) F.SPE.P**.A**.1.0.***.***.****
