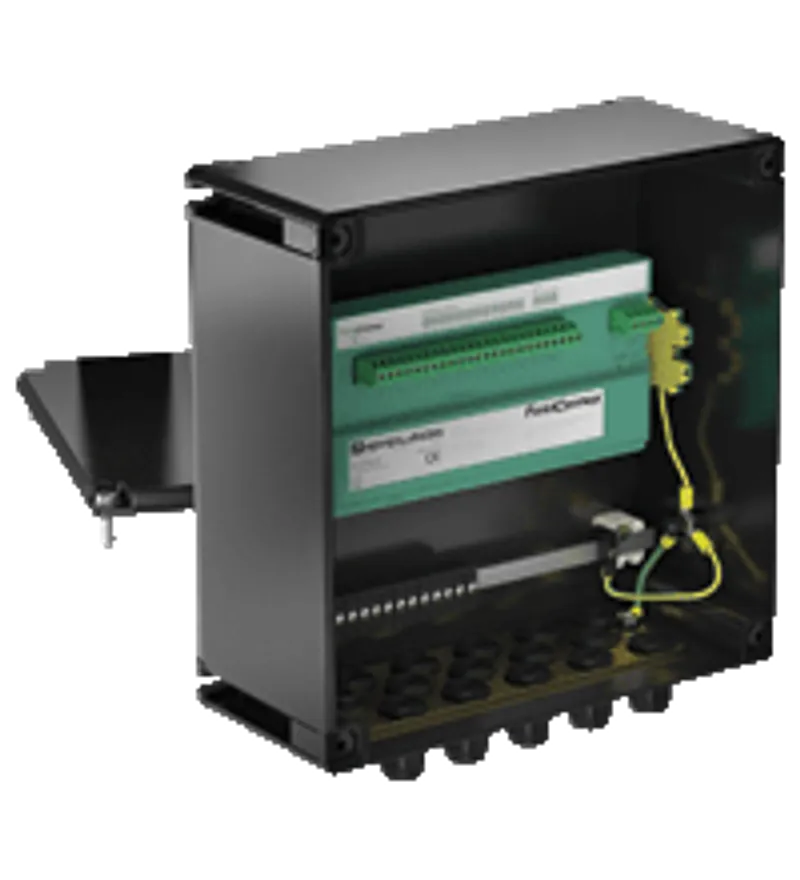

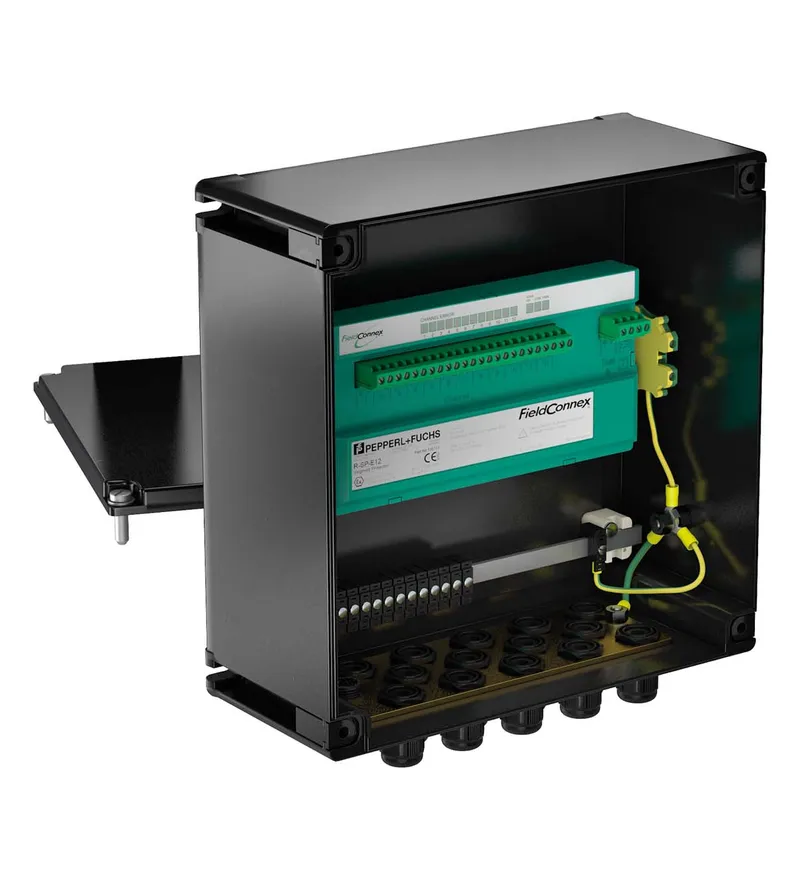

What is the Pepperl Fuchs F.SPE.P**.A**.1.0.***.***.****?

Connection of Ex d certified devices

Glass fiber reinforced polyester, impact resistant, IP66

Configurable cable entries for trunk and spurs

International approvals

For FOUNDATION Fieldbus H1 and PROFIBUS PA

Installation in Zone 1

Connection of Ex d certified devices, Glass fiber reinforced polyester, impact resistant, IP66, Configurable cable entries for trunk and spurs, International approvals, For FOUNDATION Fieldbus H1 and PROFIBUS PA, Device coupler location: Zone 1 - high-power trunk, Instrument location / spur protection: Zone 1 - increased safety, Function: Device coupler, Design / Mounting: Outside installation

Specifications

General specifications

Order code (Pepperl+Fuchs part number)T47951
Design / MountingOutside installation
Installed componentsSegment Protector R-SP-E12 For technical data on installed electronic component see data sheet.
LifecycleActive (current Pepperl+Fuchs product)

Conformity

Degree of protectionEN 60529
Impact resistanceEN 60079-0

Ambient conditions

Ambient temperature-30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request)
Storage temperature-40 ... 70 °C (-40 ... 158 °F)
Relative humidity< 75 % (annual mean) < 95 % (30 d/year), no moisture condensation
Impact resistance7J

Mechanical specifications

Enclosure coverdetachable cover with retaining screws
Degree of protectionIP66
Cable entrycable gland and stopping plug options see separate table
Material: Housingpolyester , impact resistant, glass fiber reinforced
Material: Surfaceblack molded finish (RAL 9005)
Material: Surface resistance9 Ω
Material: Water absorption< 6 %
Material: Sealsilicone , one-piece
Material: Grounding platebrass
Material: Material thicknessgrounding plate: 3 mm
Dimensions(W x H x D) 271 x 271 x 136 mm (1 x R2-SP-E12) 544 x 271 x 136 mm (2 x R2-SP-E12)
Mountingthru-holes Ø6.5 mm
Groundinggrounding bolt M6 , Stainless steel

Data for application in connection with hazardous areas

EU-type examination certificatePTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com
MarkingII 2G Ex db eb mb IIC T4 Gb [exsign] II 2D Ex tb IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly.
Directive conformity: Directive 2014/34/EUEN 60079-0:2012 , EN 60079-1:2007 , EN 60079-7:2015 , EN 60079-18:2009 , EN 60079-31:2014

International approvals

IECEx approvalIECEx PTB 07.0036 X , suitable Junction Box on request
INMETRO approvalTÜV 13.1143

General information

Supplementary informationEC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (2)

F.SPE.P**.A**.1.0.***.***.****: frequently asked questions

When can F.SPE.P**.A**.1.0.***.***.**** be shipped?

F.SPE.P**.A**.1.0.***.***.**** is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up F.SPE.P**.A**.1.0.***.***.**** in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for F.SPE.P**.A**.1.0.***.***.**** and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for F.SPE.P**.A**.1.0.***.***.****, subject to availability and destination.

More Pepperl Fuchs parts

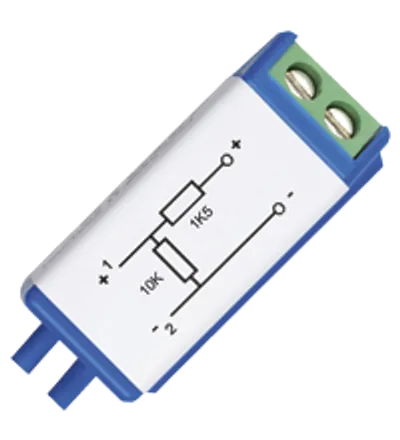

Pepperl Fuchs F-NR3-Ex1 – NAMUR Resistor Network
Pepperl Fuchs
F-NR3-Ex1

NAMUR Resistor Network

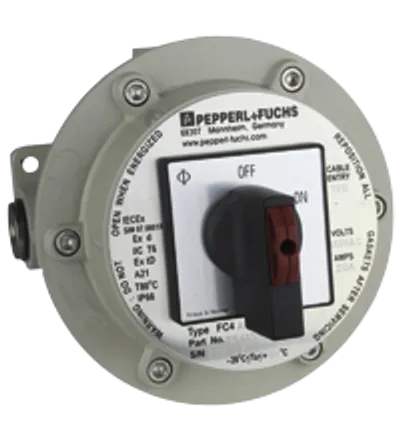

Pepperl Fuchs F* SD – Switch Disconnectors Ex d
Pepperl Fuchs
F* SD

Switch Disconnectors Ex d

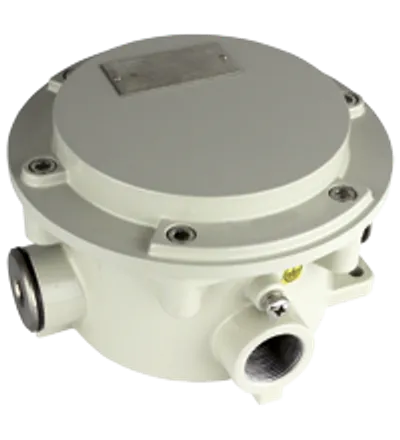

Pepperl Fuchs F* TB – Terminal Boxes Ex d, Aluminum
