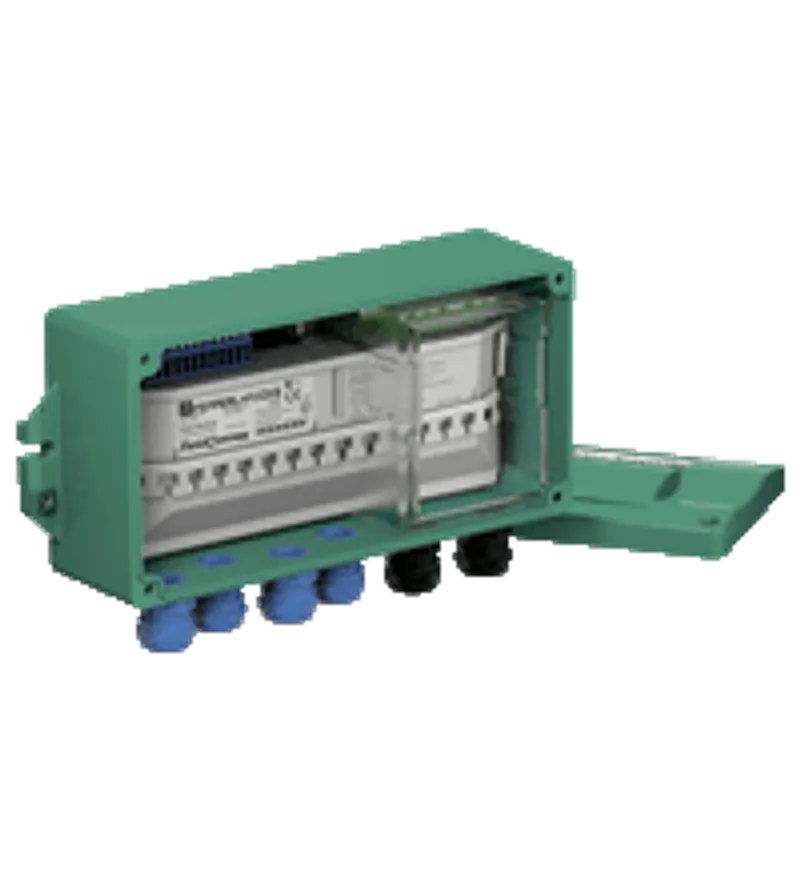

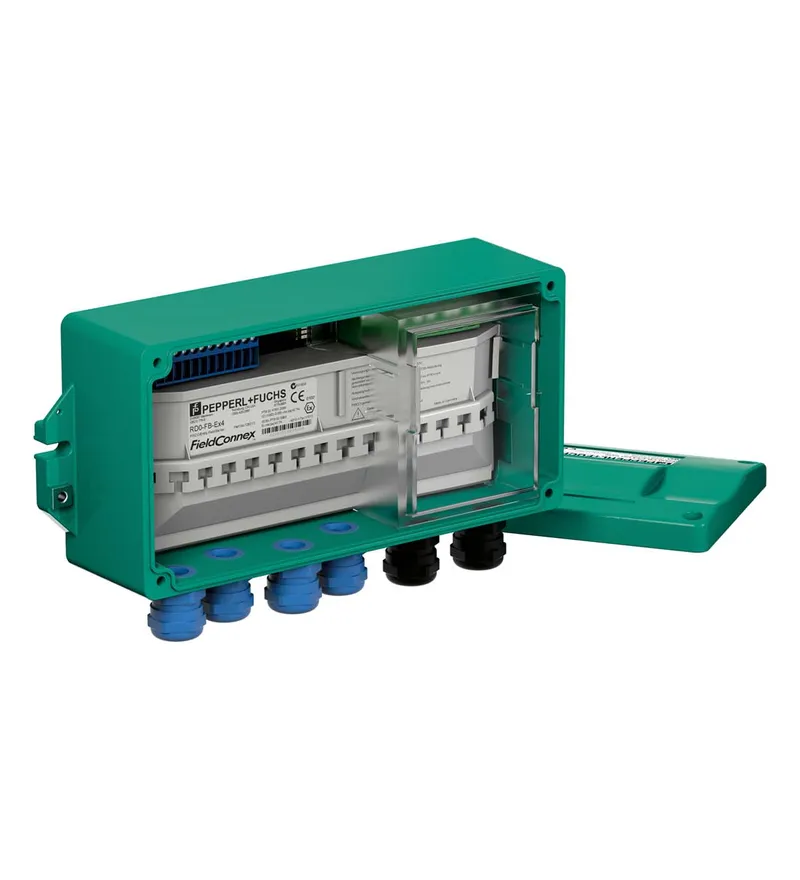

Pepperl Fuchs F2D0-FB-Ex4.* – Fieldbus Barrier
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | FieldBarriers |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can F2D0-FB-Ex4.* be shipped?
F2D0-FB-Ex4.* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up F2D0-FB-Ex4.* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for F2D0-FB-Ex4.* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for F2D0-FB-Ex4.*, subject to availability and destination.
• 4 outputs Ex ia IIC
• FieldBarrier in Zone 1/Div. 2
• Instruments in Zone 0...1/Div. 1
• Short circuit current limitation per output
• For FOUNDATION Fieldbus H1 and PROFIBUS PA
• Power, Com, and Error LEDs
• Supports FISCO and Entity
• Integrated cable tie-downs
Fieldbus barrier, stand-alone device in aluminum housing for field installation, 4 outputs Ex ia IIC, FieldBarrier in Zone 1/Div. 2, Instruments in Zone 0...1/Div. 1, Short circuit current limitation per output, For FOUNDATION Fieldbus H1 and PROFIBUS PA, IECEx approval, Dust protection, International, Europe, USA, Canada, Device coupler location: Zone 2 - high-power trunk, Zone 1 - high-power trunk, Division 2 - high-power trunk
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T157030 |
| Design / Mounting | Outside installation |
| Installation in hazardous area | Zone 1 / Div. 2 |
| Electronic component | FieldBarrier RD0-FB-Ex4.* For technical data on installed electronic component see datasheet. |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Fieldbus connection
| Main cable (Trunk): Cable entry type | cable gland and stopping plug options see separate table |
| Outputs: Number of outputs | 4 |
| Outputs: Cable entry type | cable gland and stopping plug options see separate table |
Conformity
| Degree of protection | EN 60529 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
Ambient conditions
| Ambient temperature | see table 2 |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | screw terminal , fixed |
| Enclosure cover | detachable cover with retaining screws |
| Housing material | Aluminum |
| Degree of protection | IP67 |
| Material: Surface | painted green |
| Material: Seal | silicone , one-piece |
| Mass | 3350 g |
| Dimensions: Height | 84 mm |
| Dimensions: Width | see figure 1 |
| Dimensions: Length | 258 mm |
| Mounting | wall mounting |
| Grounding | M5 threading for grounding bolt |
Data for application in connection with hazardous areas
| EU-type examination certificate | PTB 02 ATEX 2086 |
| Marking | II 2 (1) G Ex eb mb [ia Ga] IIC T4 Gb ,[exsign] II 2 (1) D Ex tb [ia Da] IIIC 130 °C Db |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+A1:2017 , EN 60079-31:2014 |
International approvals
| FM approval | CoC 3015728 |
| Control drawing | 116-0266 |
| Approved for | Class I, Division 2, Groups A, B, C, D / Class I, Zone 2, AEx nA [ia] IIC T4 |
| CSA approval | CoC 1845315 |
| Control drawing | 116-0266 |
| Approved for | Class I, Division 2, Groups A, B, C, D / Class I, Zone 2, Ex nA [ia] IIC T4 |
| IECEx approval: IECEx certificate | IECEx PTB 03.0003 |
| IECEx approval: IECEx marking | Ex eb mb [ia Ga] IIC T4 Gb Ex tb [ia Da] IIIC 130 °C Db |
Certificates and approvals
| FOUNDATION Fieldbus | FF-846 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Instruction Manual | PDF · 244 kB |
| Manual | PDF · 805 kB |
CAD & dimension drawings
| 3-D model (STEP) F2D0-FB-Ex4.* | STP · 4.8 MB |
Certificates (8)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 620 kB |
| DNV Marine (TAA0000272) | PDF · 91 kB |
| South Africa MASC (MASC S/18-2697) | PDF · 640 kB |
| China SITIIAS CCC Ex Certificate (2023322316005397 (Singapore)) | PDF · 1.3 MB |
| Canada CSA (CoC 1845315) | PDF · 46 kB |
| USA FM (CoC 3015728) | PDF · 48 kB |
| Europe PTB ATEX Category (1) 2 G (PTB 02 ATEX 2086) | PDF · 3.5 MB |
| Worldwide Fieldbus Foundation (DC084400) | PDF · 57 kB |
More Pepperl Fuchs parts

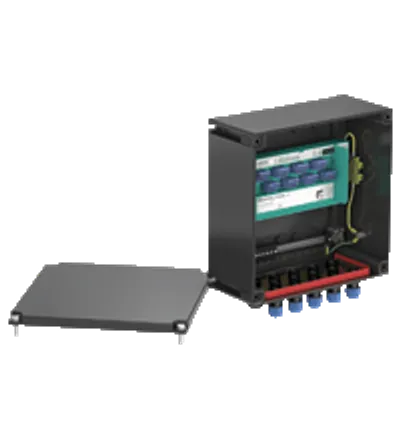

Available on requestTemperature Multi-Input Junction Box, Polyester (GRP) F.TI0.P12.*08.F.0.***.***.**00

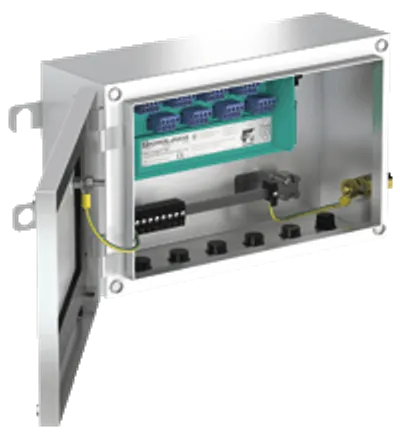

Available on requestTemperature Multi-Input Junction Box, Stainless Steel F.TI0.S12.*08.F.0.***.***.**00

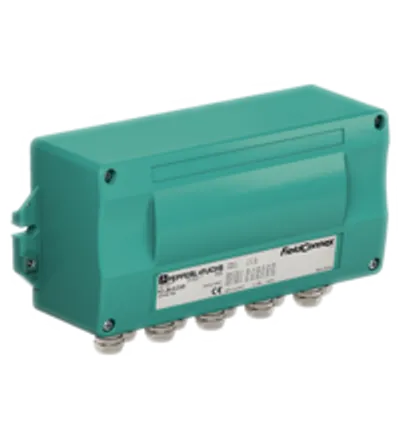

Available on requestField Junction Box F2-JB-*.*Available on requestField Junction Box F2-JB-I*.*

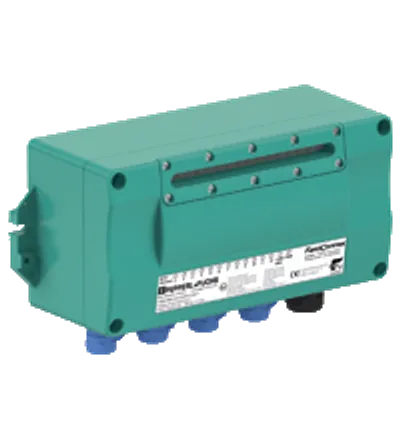

Available on requestMulti-Input/Output F2D0-MIO-Ex12.FF.*Available on requestMulti-Input/Output F2D0-MIO-Ex12.PA.*

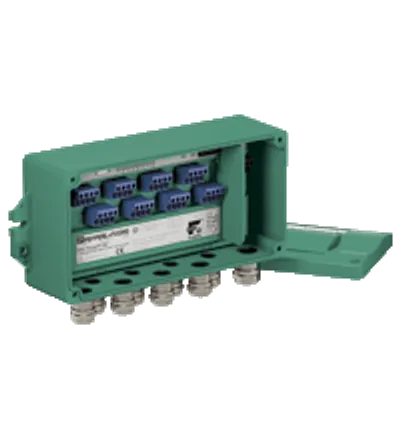

Available on requestTemperature Multi-Input F2D0-TI-Ex8.FF.*

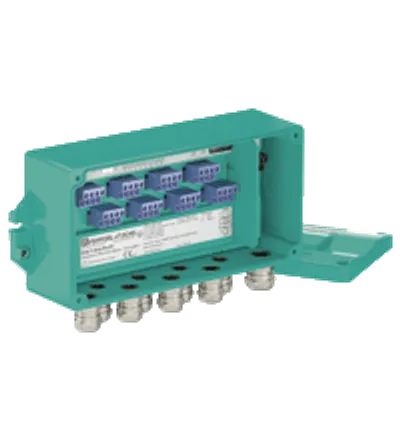

Available on requestTemperature Multi-Input F2D0-TI-Ex8.PA.*
