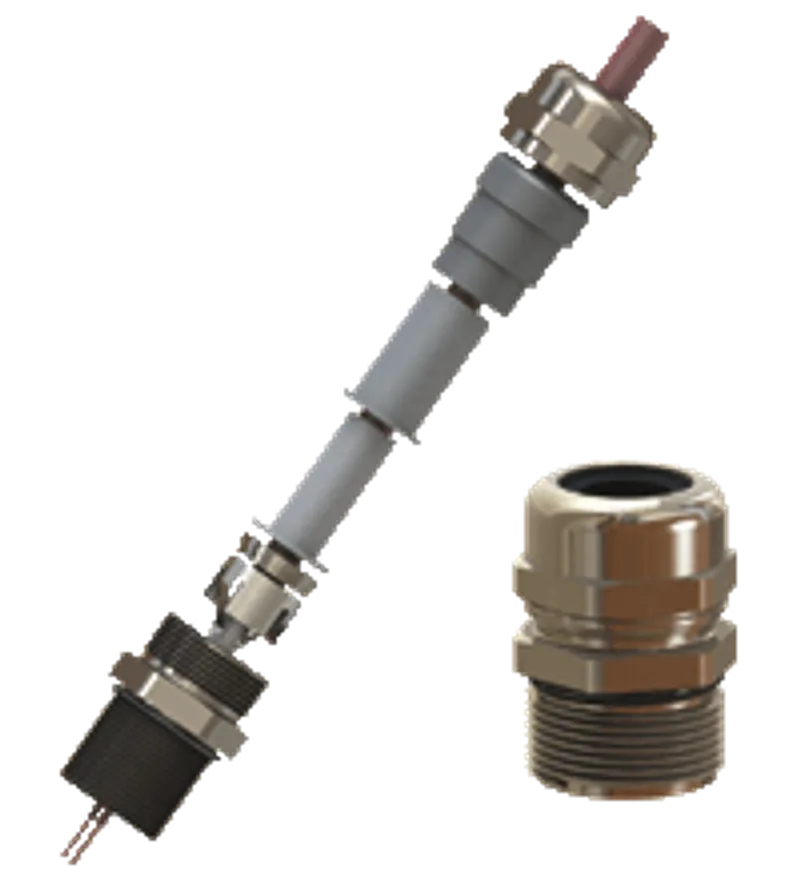

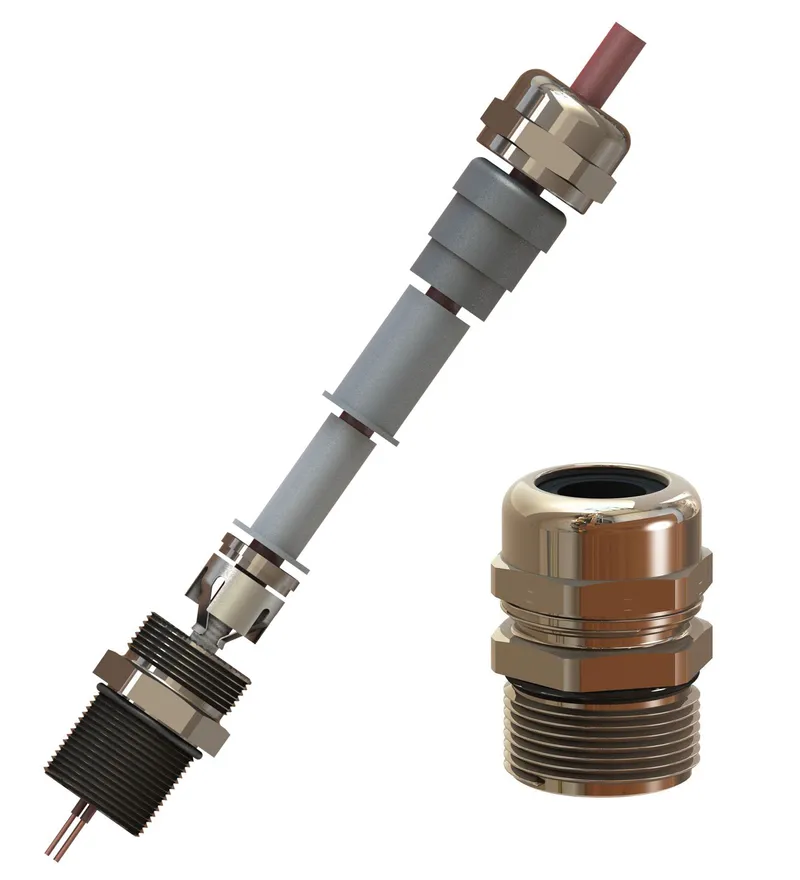

Pepperl Fuchs CG.EM.*.*.*
Cable Glands, Metal, for shielded EMC Cables
- MPN
- CG.EM.*.*.*
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs CG.EM.*.*.*?
For shielded EMC cables without armor
Brass nickel-plated or stainless steel
Metric and NPT versions available
Ex db, Ex eb and Ex tb certified
Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
Suitable for operation in Class I, Zone 1/2/22
Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2)
Degree of protection IP66 / IP68, UL Type 4X
For shielded EMC cables without armor, Brass nickel-plated or stainless steel, Metric and NPT versions available, Ex db, Ex eb and Ex tb certified, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Suitable for operation in Class I, Zone 1/2/22, Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2), Degree of protection IP66 / IP68, UL Type 4X
Specifications
Mechanical specifications
| Order code (Pepperl+Fuchs part number) | T171444 |
| Cable type | non-armored shielded EMC cables |
| Clamping range (D) | see data table |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Thread size (TD) | see data table |
| Degree of protection | IP66 / IP68 , UL Type 4X |
| Material: Finish | inherent color silver |
| Material: Cable gland | brass nickel-plated or AISI 316 (1.4401) stainless steel |
| Material: Washer gasket | aramid fibers bonded with NBR |
| Material: O-Ring | chloroprene / neoprene or silicone |
| Material: Seal insert | chloroprene / neoprene or silicone |
| Mass | see data table |

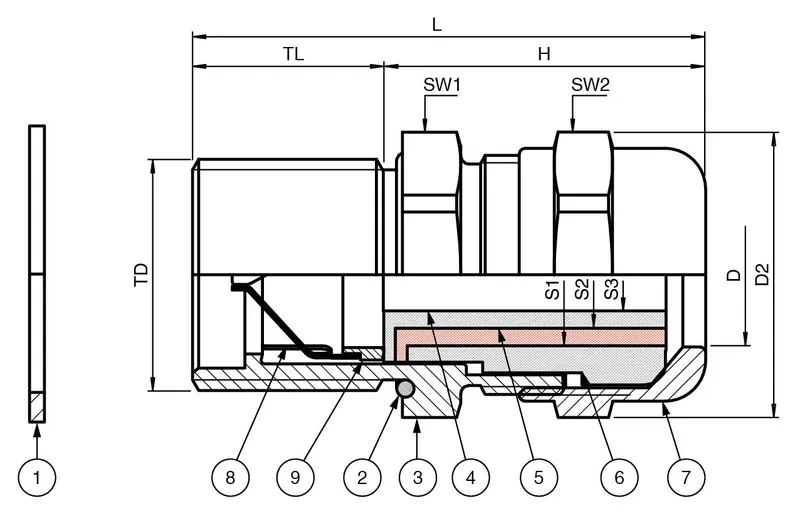

| Dimensions | see data table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | Ex eb and Ex tb versions: chloroprene seal: -40 ... 80 °C (-40 ... 176 °F) silicone seal: -60 ... 140 °C (-76 ... 284 °F) washer gasket: -50 ... 80 °C (-58 ... 176 °F) sealing plugs: -60 ... 70 °C (-76 ... 158 °F) Ex db versions: chloroprene seal: -40 ... 80 °C (-40 ... 176 °F) silicone seal: -60 ... 80 °C (-76 ... 176 °F) washer gasket: -50 ... 80 °C (-58 ... 176 °F) Service temperature might be limited by the use of sealing plugs or washer gaskets. |
Data for application in connection with hazardous areas
| EU-type examination certificate | IMQ 14 ATEX 012X |
| Marking | II 2 GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| UL approval: cULus | E490962 tested to UL 2225 < CSA 60079-7 , CSA 60079-31 |
| IECEx approval | IECEx IMQ 14.0004X |
| UKCA approval | CML 21 UKEX 11380X |
| INMETRO approval | DNV 20.0029 X |
| CCC approval | 2021312313000344 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
General information
| Scope of delivery | K01 - metric variants, individual component: Cable gland , washer gasket , locknut , Earth tag , shroud PVC , Brief instructions K01 - NPT variants, individual component: Cable gland , shroud PVC , Brief instructions Knn - packing unit with multiple components: Cable glands , Brief instructions (1 copy) |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Sealing plugs | see data table |
