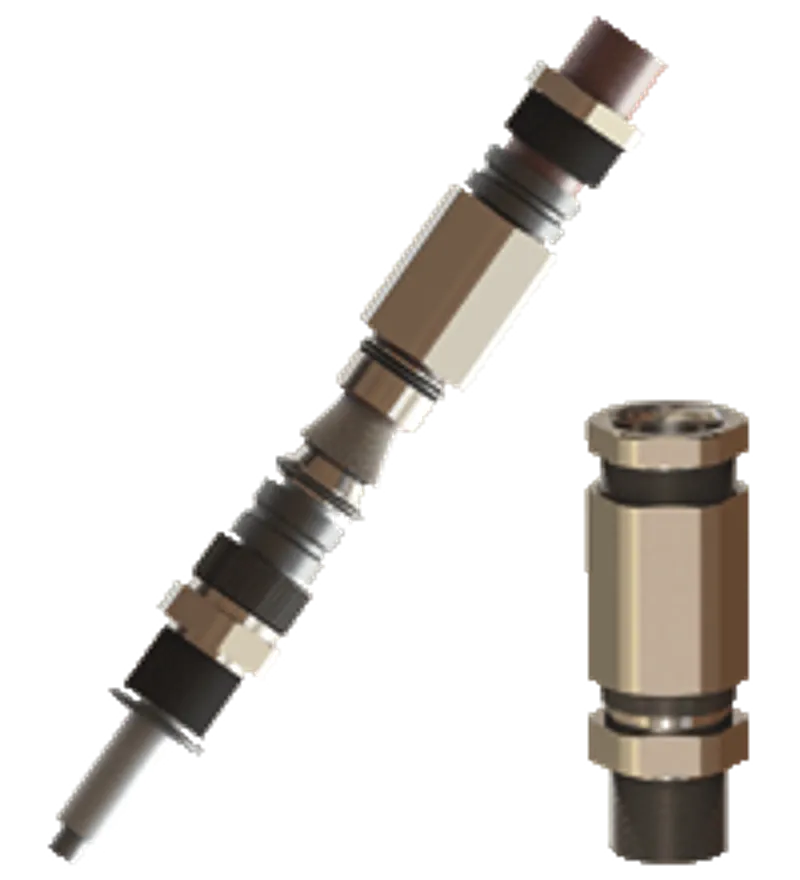

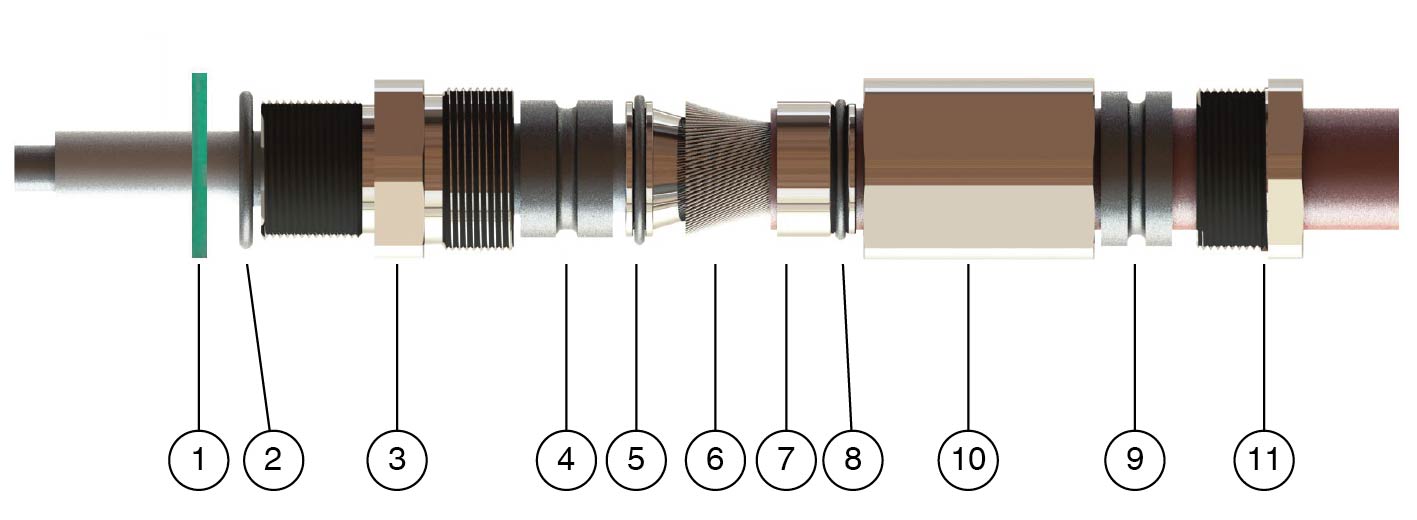

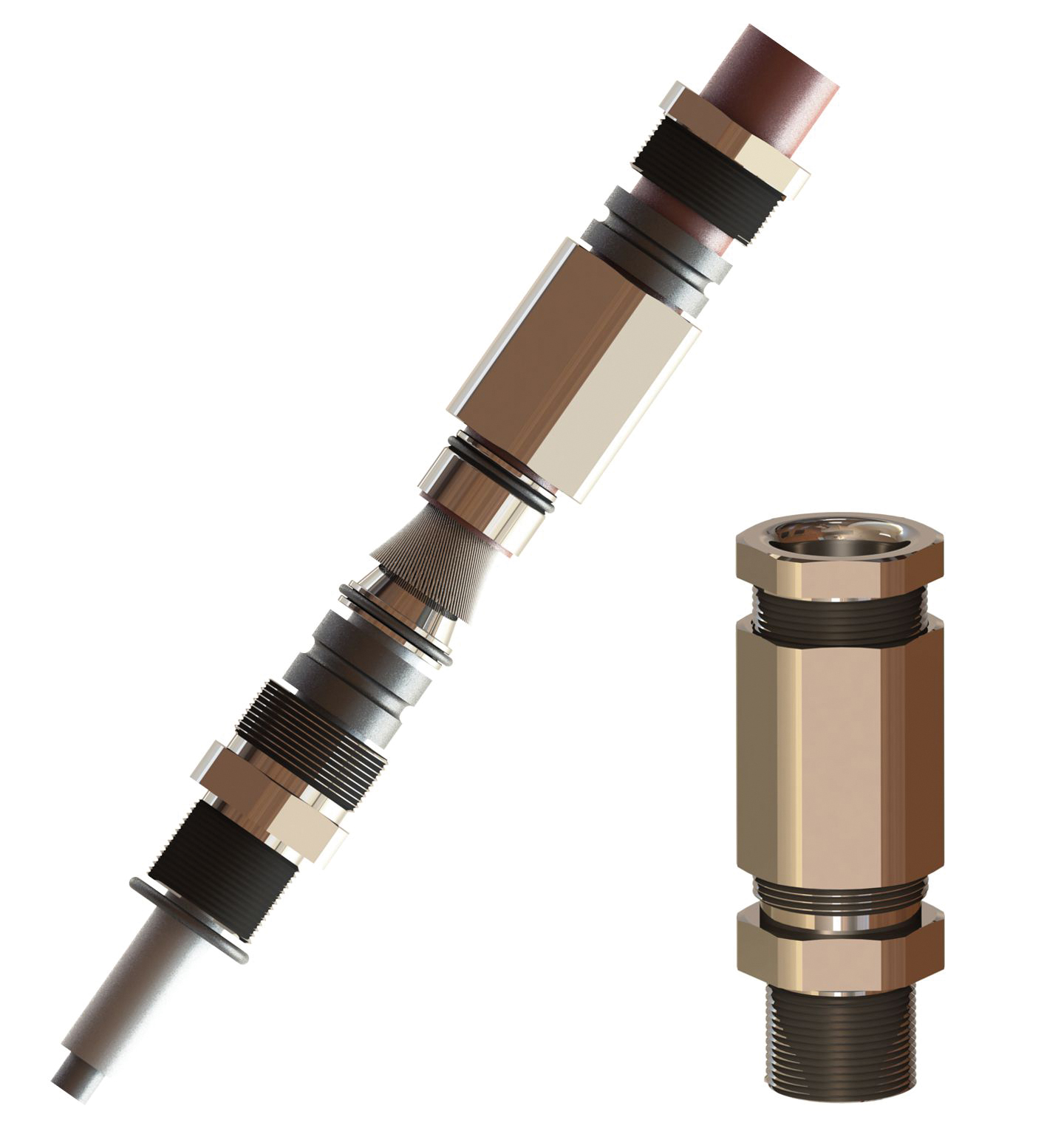

Pepperl Fuchs CG.AR.*.*.* – Cable Glands, Metal, for armored Cables
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable Glands and Accessories (Ex d, Ex e, Ex i) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CG.AR.*.*.* be shipped?
CG.AR.*.*.* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CG.AR.*.*.* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CG.AR.*.*.* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CG.AR.*.*.*, subject to availability and destination.
• For armored cables
• Brass nickel-plated or stainless steel
• Metric and NPT versions available
• Ex d, Ex e and Ex tb certified
• Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
• Suitable for operation in Class I, Zone 1/2/22
• Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2)
• Degree of protection IP66 / IP68, UL Type 4X
For armored cables, Brass nickel-plated or stainless steel, Metric and NPT versions available, Ex d, Ex e and Ex tb certified, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Suitable for operation in Class I, Zone 1/2/22, Suitable for operation in Class I, Division 2 when installed in accordance with NEC501.10(B)(2), Degree of protection IP66 / IP68, UL Type 4X
Specifications
Mechanical specifications
| Order code (Pepperl+Fuchs part number) | T171445 |
| Cable type | armored cables |

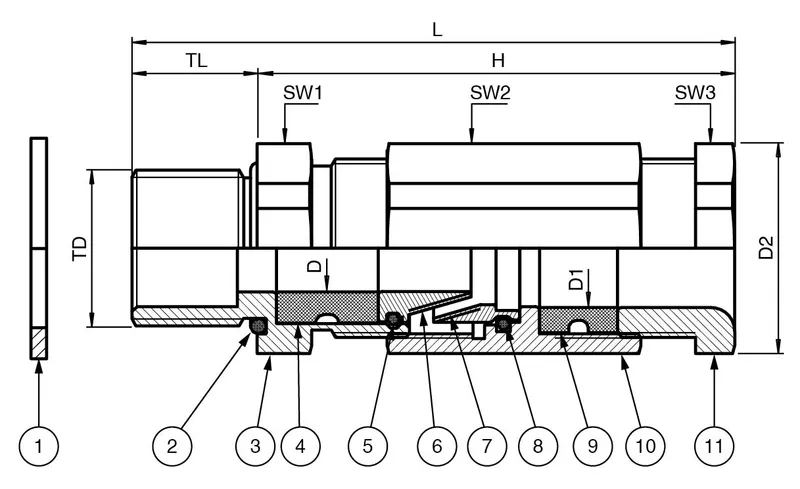

| Clamping range (D) | see data table |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Thread size (TD) | see data table |
| Degree of protection | IP66 / IP68 , UL Type 4X |
| Material: Finish | inherent color silver |
| Material: Cable gland | brass nickel-plated or AISI 316 (1.4401) stainless steel |
| Material: Washer gasket | aramid fibers bonded with NBR |
| Material: O-Ring | chloroprene / neoprene or silicone |
| Material: Seal insert | chloroprene / neoprene or silicone |
| Mass | see data table |
| Dimensions | see data table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | chloroprene seal: -40 ... 80 °C (-40 ... 176 °F) silicone seal: -60 ... 100 °C (-76 ... 212 °F) washer gasket: -50 ... 80 °C (-58 ... 176 °F) Service temperature might be limited by the use of sealing plugs or washer gaskets. |
Data for application in connection with hazardous areas
| EU-type examination certificate | CESI 14 ATEX 033X |
| Marking | II 2 GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| UL approval: cULus | E490324 tested to UL 514B E490962 tested to UL 2225 CSA 60079-7 , CSA 60079-31 |
| IECEx approval | IECEx CES 14.0022X |
| UKCA approval | CML 22 UKEX 1266X |
| INMETRO approval | DNV 20.0028 X |
| CCoE approval | PESO A/P/HQ/KA/104/5575 (P418742) |
| IA approval | MASC MS/17-2357X |
| CCC approval | 2021312313000346 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
General information
| Scope of delivery | K01 - metric variants, individual component: Cable gland , washer gasket , locknut , Earth tag , shroud PVC , Brief instructions K01 - NPT variants, individual component: Cable gland , shroud PVC , Brief instructions Knn - packing unit with multiple components: Cable glands , Brief instructions (1 copy) |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
