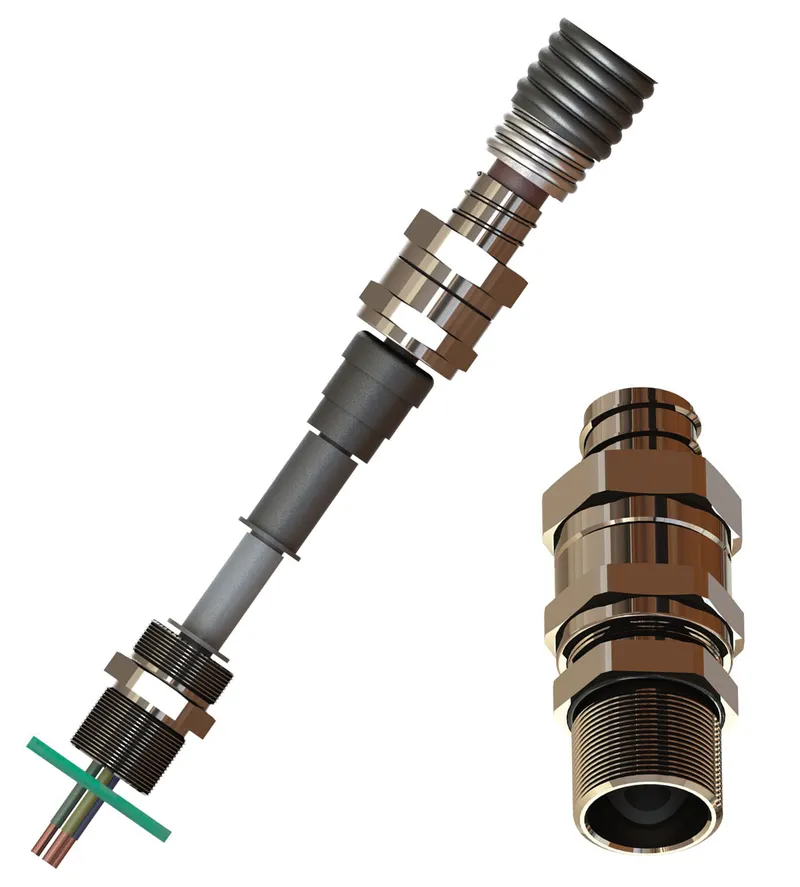

Pepperl Fuchs CG.CO.*.*.* – Cable Glands, Metal, for Flexible Conduits
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable Glands and Accessories (Ex d, Ex e, Ex i) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CG.CO.*.*.* be shipped?
CG.CO.*.*.* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CG.CO.*.*.* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CG.CO.*.*.* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CG.CO.*.*.*, subject to availability and destination.
• For cables without armor
• Brass nickel-plated or stainless steel
• Metric and NPT versions available
• Ex db, Ex eb and Ex tb certified
• Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
• Connection of flexible metallic conduits
For cables without armor, Brass nickel-plated or stainless steel, Metric and NPT versions available, Ex db, Ex eb and Ex tb certified, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Connection of flexible metallic conduits
Specifications
Mechanical specifications
| Order code (Pepperl+Fuchs part number) | T176942 |
| Cable type | non-armored cables in flexible conduit |

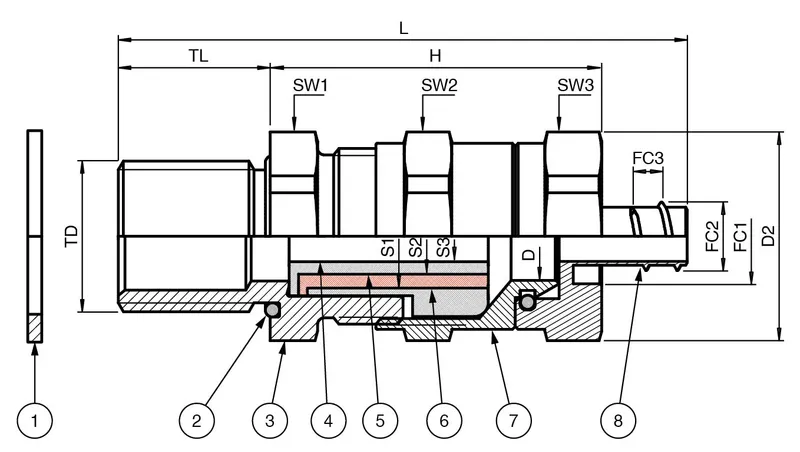

| Clamping range (D) | see data table |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Thread size (TD) | see data table |
| Degree of protection | IP66 / IP68 |
| Material: Finish | inherent color silver |
| Material: Cable gland | brass nickel-plated or AISI 316 (1.4401) stainless steel |
| Material: Washer gasket | aramid fibers bonded with NBR |
| Material: O-Ring | chloroprene / neoprene or silicone |
| Material: Seal insert | chloroprene / neoprene or silicone |
| Mass | see data table |
| Dimensions | see data table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | Ex eb and Ex tb versions: chloroprene seal: -40 ... 80 °C (-40 ... 176 °F) silicone seal: -60 ... 140 °C (-76 ... 284 °F) washer gasket: -50 ... 80 °C (-58 ... 176 °F) Ex db versions: chloroprene seal: -40 ... 80 °C (-40 ... 176 °F) silicone seal: -60 ... 80 °C (-76 ... 176 °F) washer gasket: -50 ... 80 °C (-58 ... 176 °F) Service temperature might be limited by the use of sealing plugs or washer gaskets. |
Data for application in connection with hazardous areas
| EU-type examination certificate | IMQ 14 ATEX 012X |
| Marking | II 2 GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx IMQ 14.0004X |
| UKCA approval | CML 21 UKEX 11380X |
| INMETRO approval | DNV 20.0029 X |
| CCC approval | 2021312313000344 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
General information
| Scope of delivery | K01 - metric variants, individual component: Cable gland , washer gasket , locknut , Earth tag , Brief instructions K01 - NPT variants, individual component: Cable gland , Brief instructions Knn - packing unit with multiple components: Cable glands , Brief instructions (1 copy) |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Brief Instructions - Cable Glands Series CG.CO.* | PDF · 356 kB |
| Instruction Manual | PDF · 160 kB |
Certificates (5)
More Pepperl Fuchs parts

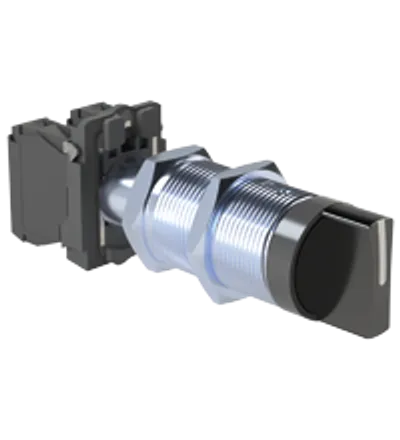

Available on requestActuator Head Assembly CFS.MOD.N2.CB11.K01.SP

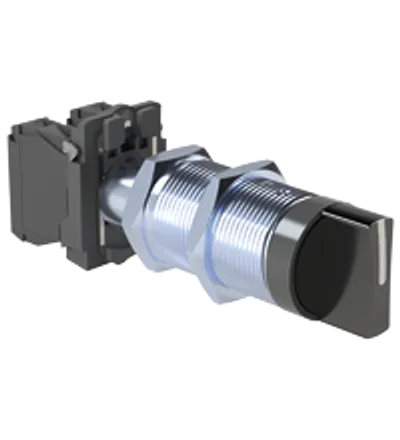

Available on requestActuator Head Assembly CFS.MOD.N3.CB20.K01.SP

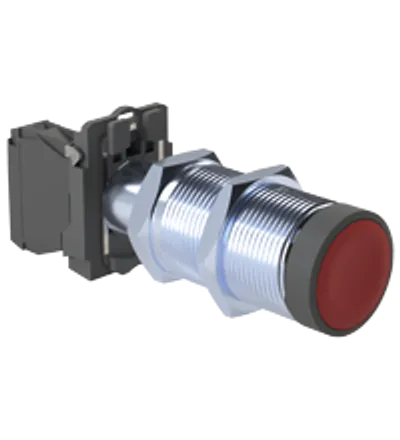

Available on requestActuator Head Assembly CFS.MOD.PBX.CB10.K01.SP

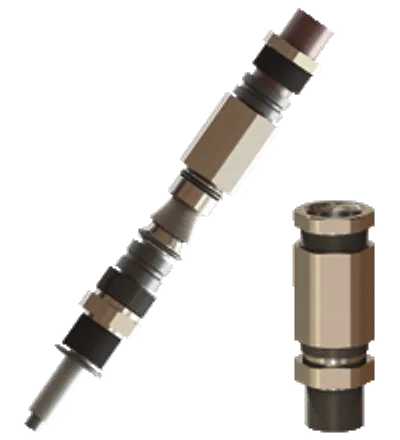

Available on requestCable Glands, Metal, for armored Cables CG.AR.*.*.*

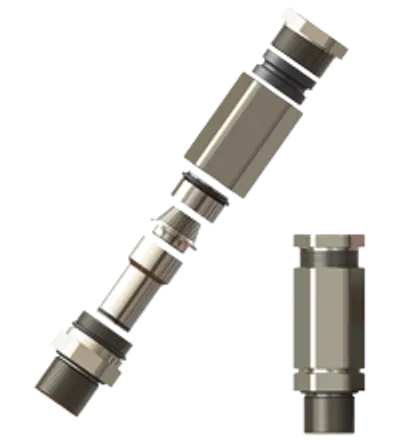

Available on requestCable Glands, Metal, Barrier Glands for armored Cables CG.BA.*.*.*

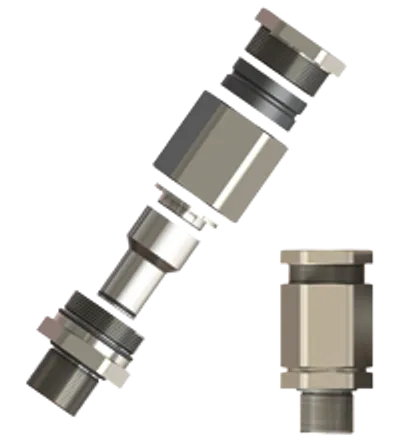

Available on requestCable Glands, Metal, Barrier Glands for non-armored Cables CG.BN.*.*.*

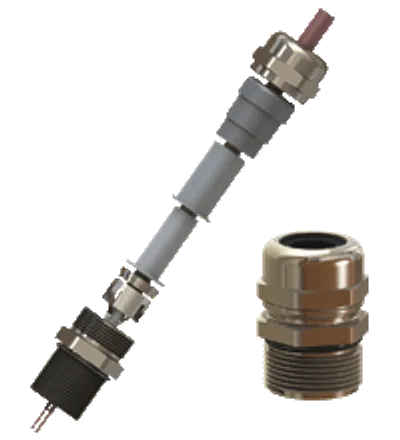

Available on requestCable Glands, Metal, for shielded EMC Cables CG.EM.*.*.*

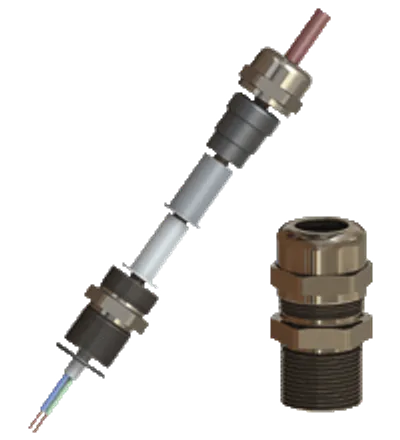

Available on requestCable Glands, Metal, for non-armored Cables CG.NA.*.*.*
