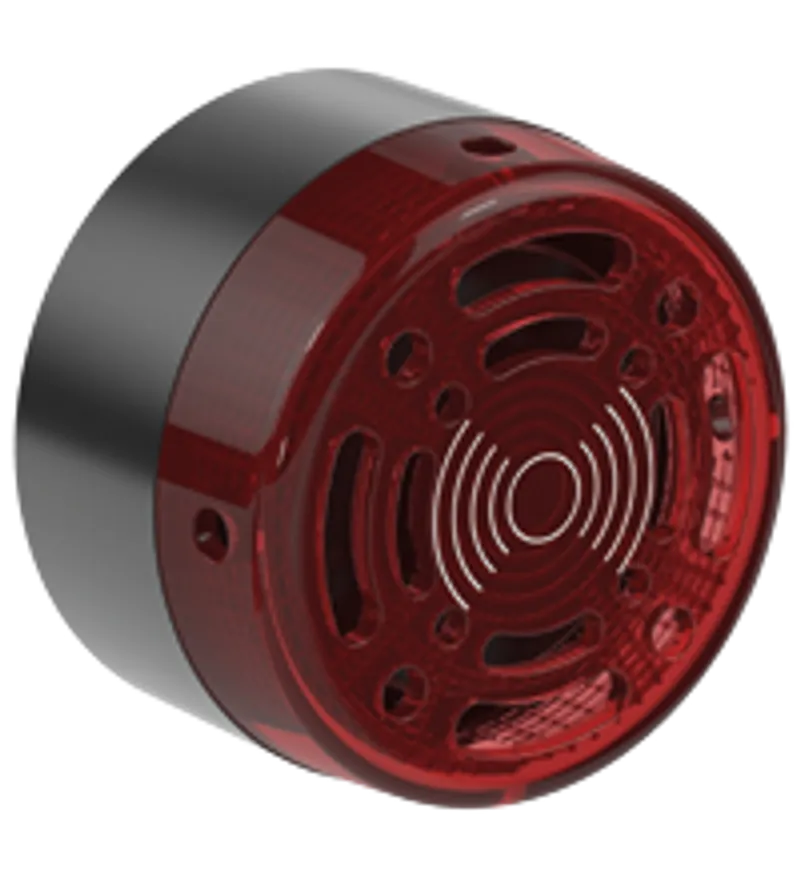

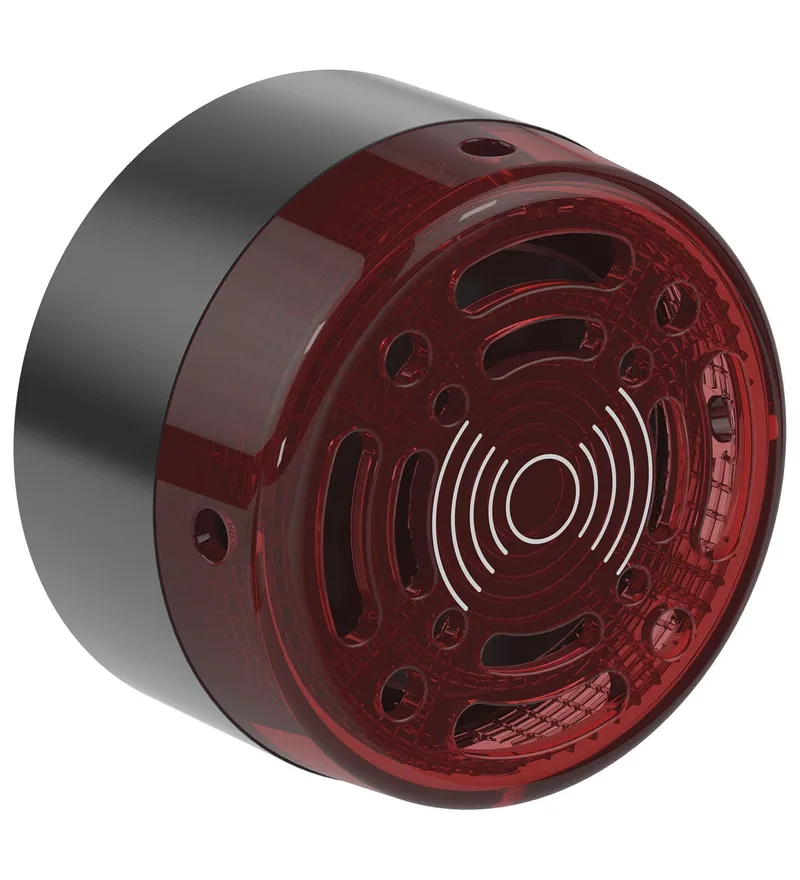

Pepperl Fuchs CFP.BUZRF2.SP
Actuator Head Ex e - Buzzer
- MPN
- CFP.BUZRF2.SP
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs CFP.BUZRF2.SP?
Buzzer, flashing red, 20 ... 250 V AC/DC
Component for appropriately certified Ex e enclosures
Mounting on enclosure cover
Ex de certified
Polyamide
Buzzer, flashing red, 20 ... 250 V AC/DC, Component for appropriately certified Ex e enclosures, Mounting on enclosure cover, Ex de certified, Polyamide, Function: flashing buzzer, Housing: Polyamide (PA), Marking: [exsign] II 2 GD , Ex eb ib mb IIC Gb , Ex ib tb IIIC Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290090 |
| Operating voltage | 250 V max. |
| Power consumption | 1 W max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Function | flashing buzzer |
| Color | red |
| Rated operating voltage | 20 ... 250 V AC/DC |
| Operator action | Sound level 60 dB at 30 cm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Thread size (TD) | M30 x 1.5 |
| Degree of protection | IP66 |
| Material: Housing | Polyamide (PA) |
| Mass | 125 g |

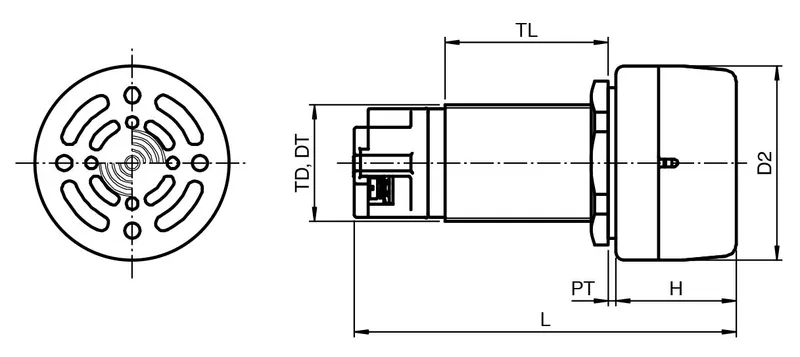

| Dimensions: Actuator head diameter (D2) | 50 mm |
| Dimensions: Panel wall thickness (PT) | 1 ... 35 mm |
| Dimensions: Diameter thru-hole (DT) | 30.6 mm |
| Dimensions: Length outside enclosure (H) | 31 mm |
| Dimensions: Thread length (TL) | 42 mm |
| Dimensions: Total length (L) | 98.5 mm |
| Mounting | cover-mounted |
Ambient conditions
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) |
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | EPT 16 ATEX 2404U |
| Marking | II 2 GD Ex eb ib mb IIC Gb Ex ib tb IIIC Db |
International approvals
| IECEx approval | IECEx EUT 16.0011U |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 2460 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* SR.CS* |
