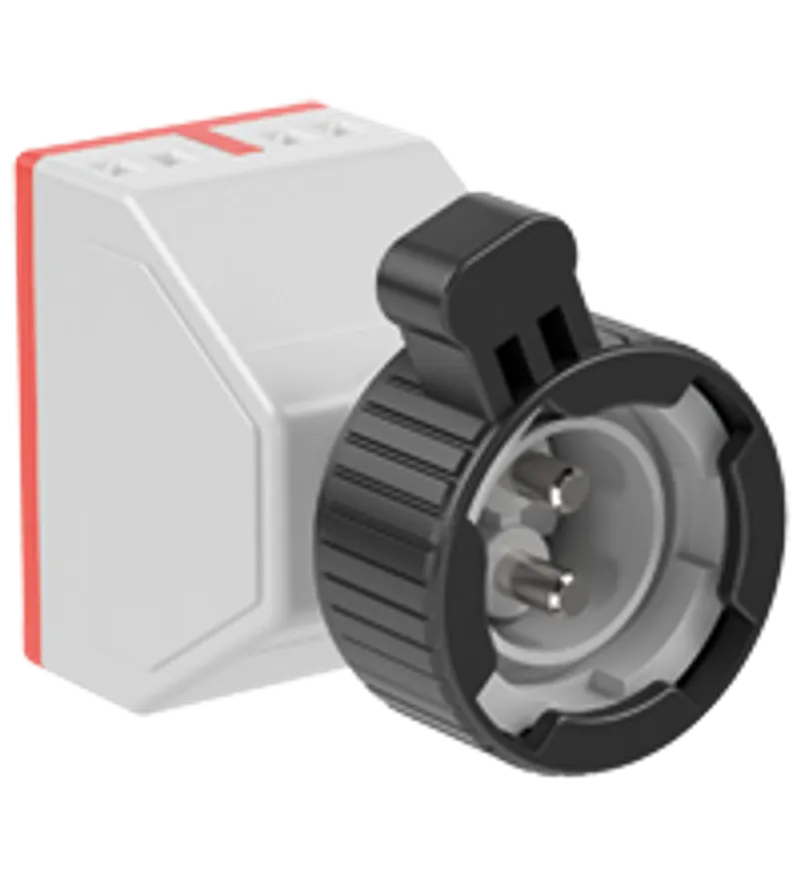

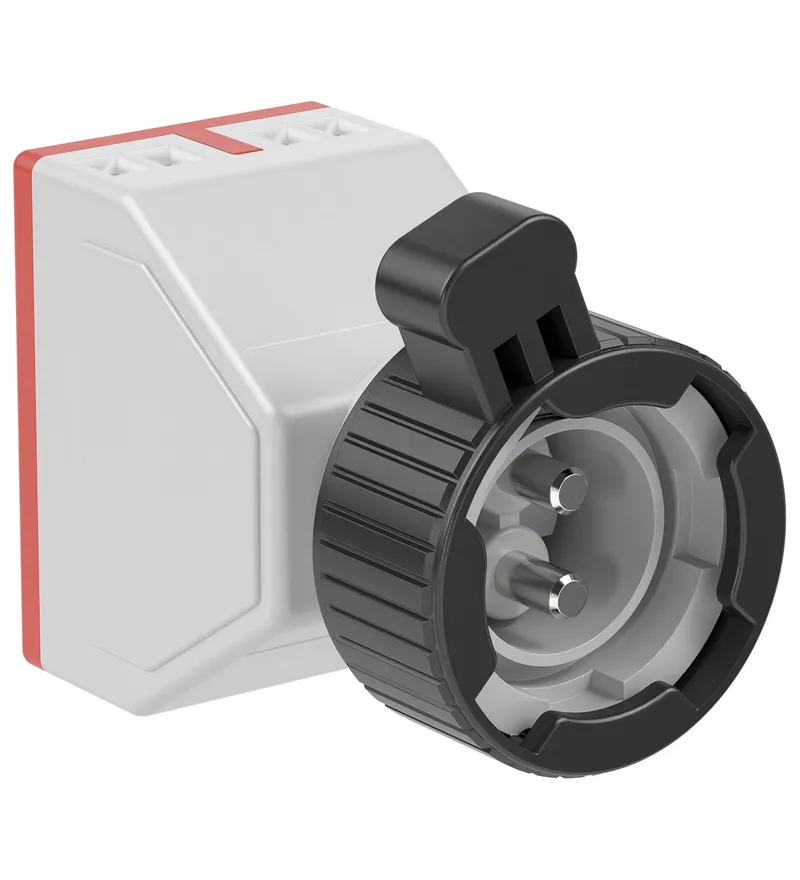

Pepperl Fuchs CFP.B.SP
Contact Block Ex e, 2 Pole, Cover-mounted
- MPN
- CFP.B.SP
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs CFP.B.SP?
Contact block 2x NC
Component for appropriately certified Ex e enclosures
Mounting on enclosure cover
Ex de certified
Polyamide
For use with enclosure types SR*
Contact block 2x NC, Component for appropriately certified Ex e enclosures, Mounting on enclosure cover, Ex de certified, Polyamide, For use with enclosure types SR*, Function: contact block, Housing: Polyamide (PA), Marking: [exsign] II 2 G , Ex de IIC Gb
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290183 |
| Operating voltage | 250 V max. |
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Function | contact block |
| Contact configuration | 2x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 A |
| Number of poles | 2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP20 |
| Material: Housing | Polyamide (PA) |
| Mass | 79 g |
| Mechanical life | 1000000 switching operations |

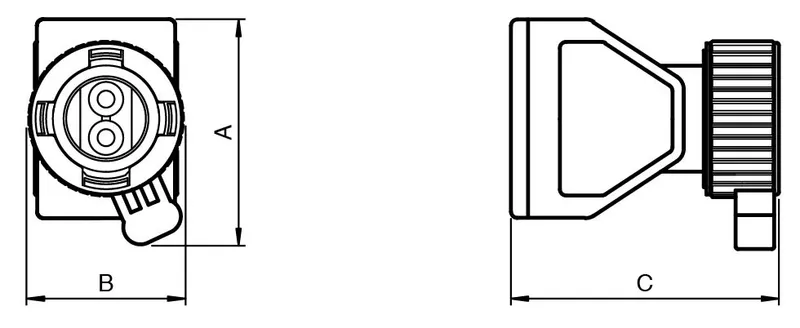

| Dimensions: External dimension (A) | 54 mm |
| Dimensions: External dimension (B) | 37 mm |
| Dimensions: External dimension (C) | 63 mm |
| Mounting | cover-mounted via actuator head |
Ambient conditions
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 G Ex de IIC Gb |
International approvals
| IECEx approval | IECEx CML 16.0114U |
Conformity
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 2829 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | SR.CS* |
