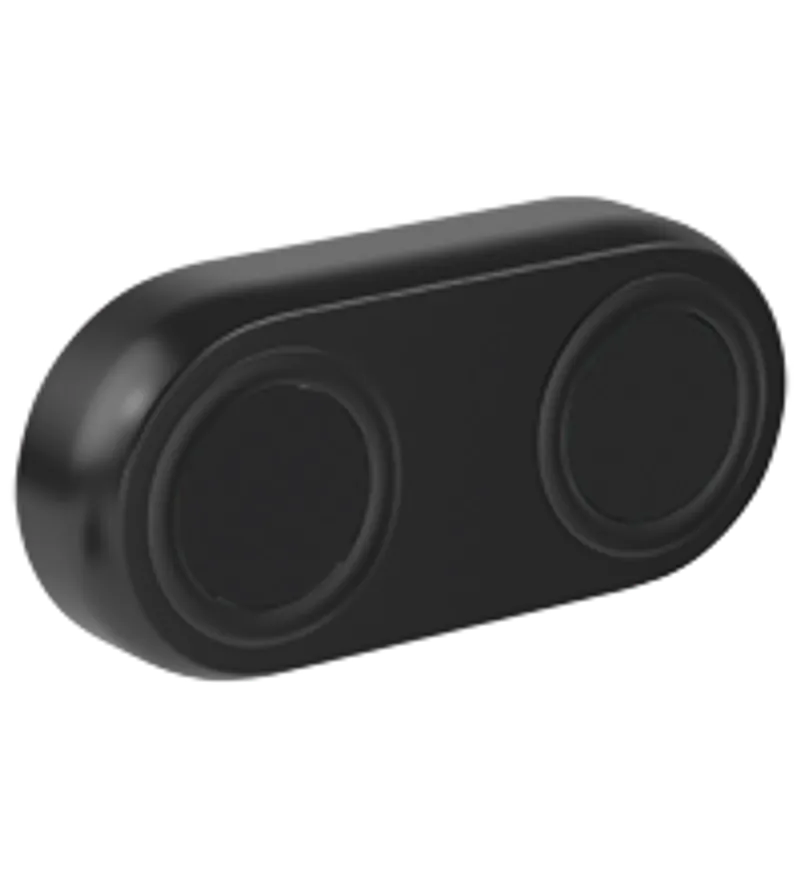

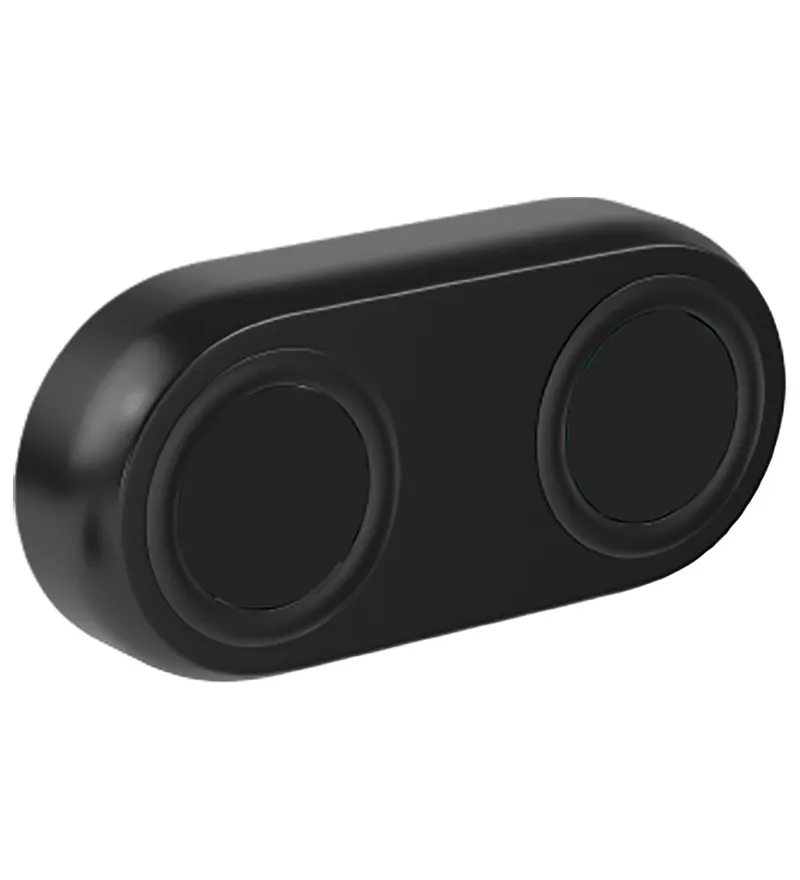

Pepperl Fuchs CFP.DX.SP
Actuator Head Ex e - Double Pushbutton
- MPN
- CFP.DX.SP
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs CFP.DX.SP?
Component for appropriately certified Ex e enclosures
For use with base-mounted and lid-mounted contact modules
Ex e and Ex tb certified
Polyamide
Component for appropriately certified Ex e enclosures, For use with base-mounted and lid-mounted contact modules, Ex e and Ex tb certified, Polyamide, Function: double pushbutton, Housing: Polyamide (PA), Marking: [exsign] II 2 GD , Ex e IIC Gb , Ex tb IIIC Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290072 |
| Function | double pushbutton |
| Operator action | spring return |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP66 |
| Material: Housing | Polyamide (PA) |
| Material: Finish | inherent color black |
| Material: Washer gasket | silicone |
| Mass | 38 g |

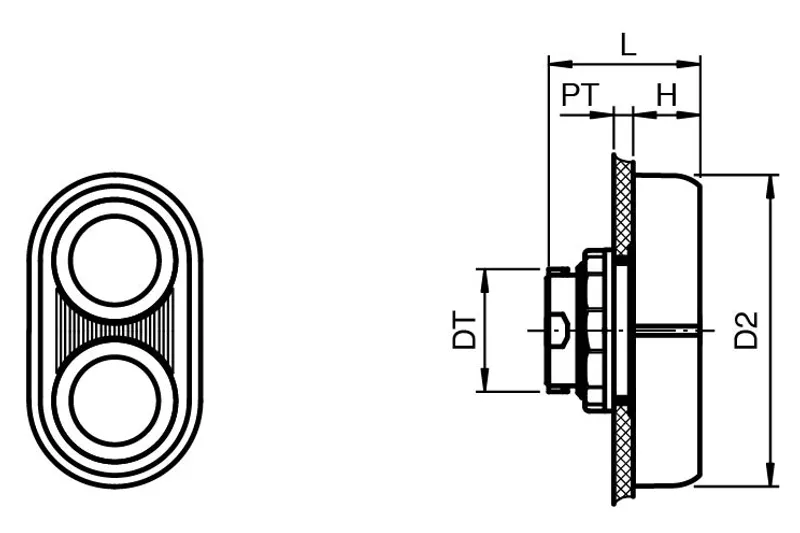

| Dimensions: Actuator head diameter (D2) | 70 mm x 39 mm |
| Dimensions: Panel wall thickness (PT) | 1 ... 6 mm |
| Dimensions: Diameter thru-hole (DT) | 30.6 mm |
| Dimensions: Length outside enclosure (H) | 15.5 mm |
| Dimensions: Total length (L) | 35.8 mm |
| Tightening torque | 2.8 ... 3.4 Nm |
| Mounting | use with base-mounted and lid-mounted contact modules |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Service temperature | -40 ... 65 °C (-40 ... 149 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 16.0114U |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* SR*.CS* GR.CS* |
Accessories
| Optional accessories | CFP.TP |
