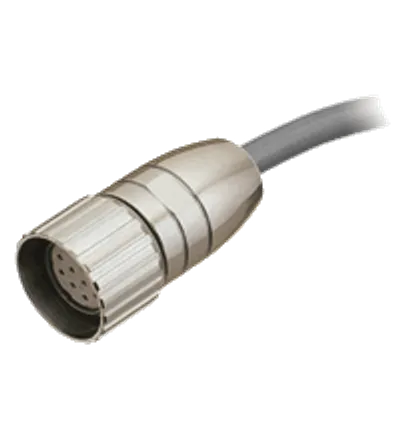

Pepperl Fuchs 9416-05M-12P-AVM – Female cordset
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 9416-05M-12P-AVM be shipped?
9416-05M-12P-AVM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 9416-05M-12P-AVM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 9416-05M-12P-AVM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9416-05M-12P-AVM, subject to availability and destination.
• Shielded twisted pair
• Immunity to vibration, with mechanical latching
• Shield attached to connector housing

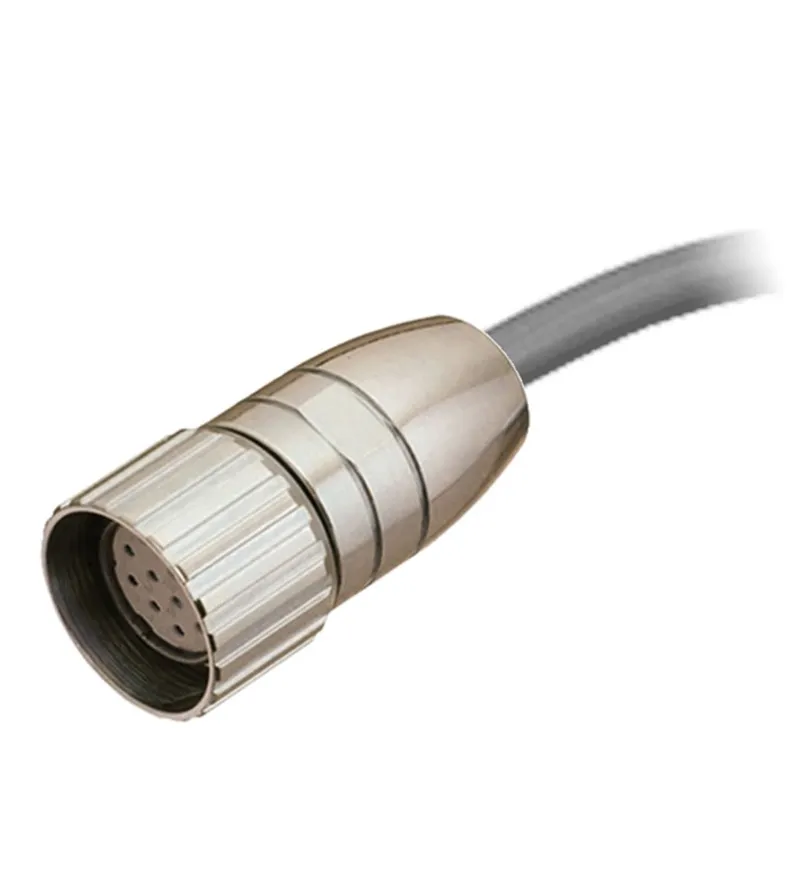

Connection cable with socket M23 straight N-coded, 12-pin, PVC cable 8-core grey, twisted pairs, overall shield
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 217888 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M23 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 12 |
| Connector 1: Coding | N-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V DC UB |
| Test voltage | 1200 V |
| Operating current | max. 3 A IB |
| Volume resistance | < 5 mΩ |
| Insulation resistance | min. 100 MΩ |
Ambient conditions
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -5 ... 70 °C (23 ... 158 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling |
| Plug connector: Mating cycles | min. 50 |
| Plug connector: Shielding | shield connected to connector |
| Plug connector: Degree of protection | IP67 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |

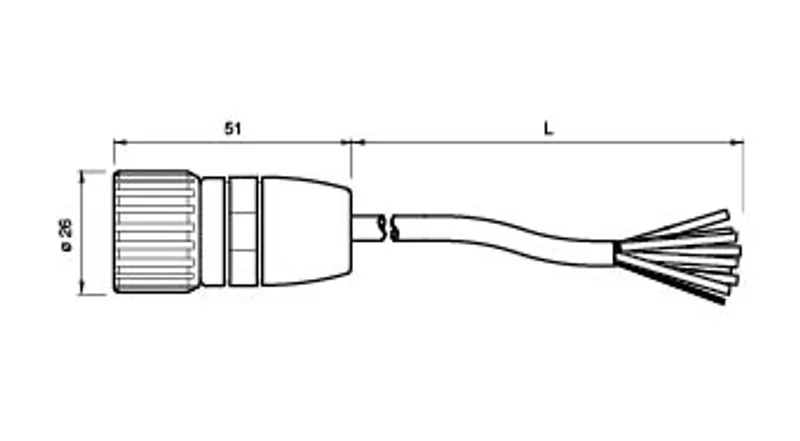

| Sheath diameter | 7.1 mm |
| Bending radius | Cable, movable installation: ≥ 107 mm,Cable, fixed installation: ≥ 43 mm |
| Sheath color | grey (similar to RAL 7032) |
| Number of cores | 12 |
| Core cross section | 0.14 mm2 |

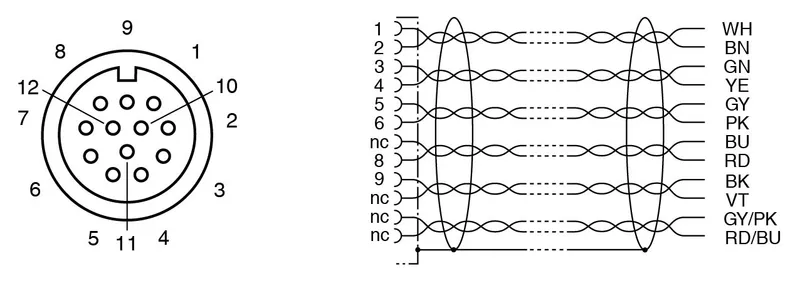

| Cores color | Core 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: not connected Core 8: red Core 9: black Core 10: not connected Core 11: not connected Core 12: not connected |
| Core construction | 6 x 2 x 0.14 mm2 twisted pairs , overall shield |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 5 m L |
| Cable code | Li Y CY 6 x 2 x 0,14 |
Material
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | Zinc diecast, nickel-plated |
| Plug connector: Seal | NBR |
| Plug connector: Contact surface | gold plated (Au) |
| Cable: Sheathing | PVC |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PVC |
| Cable: Flammability | flame retardant |
