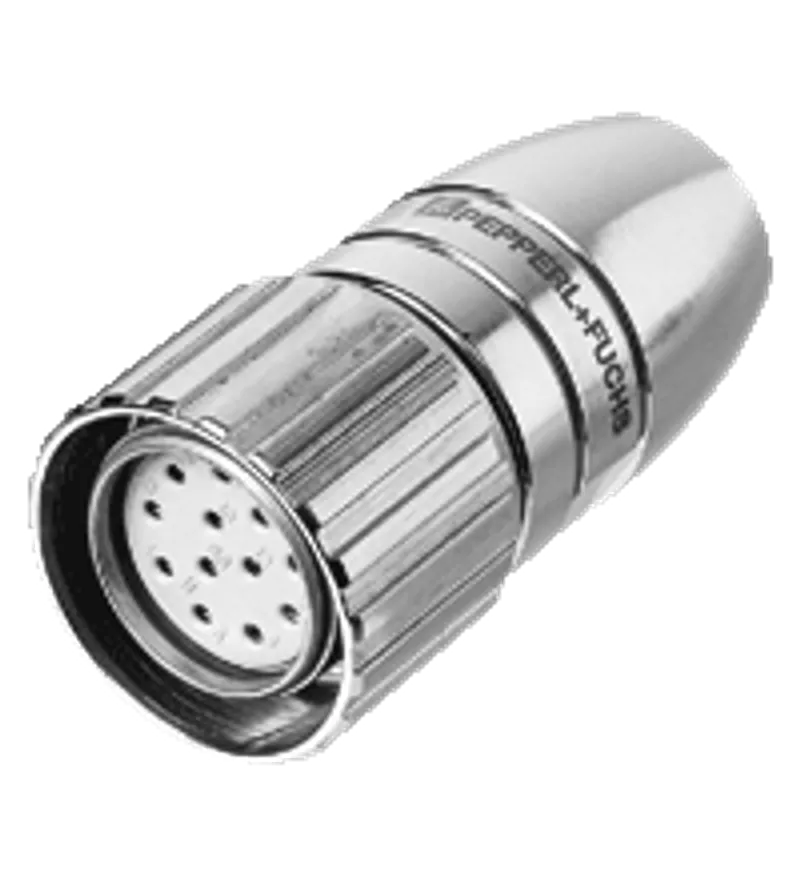

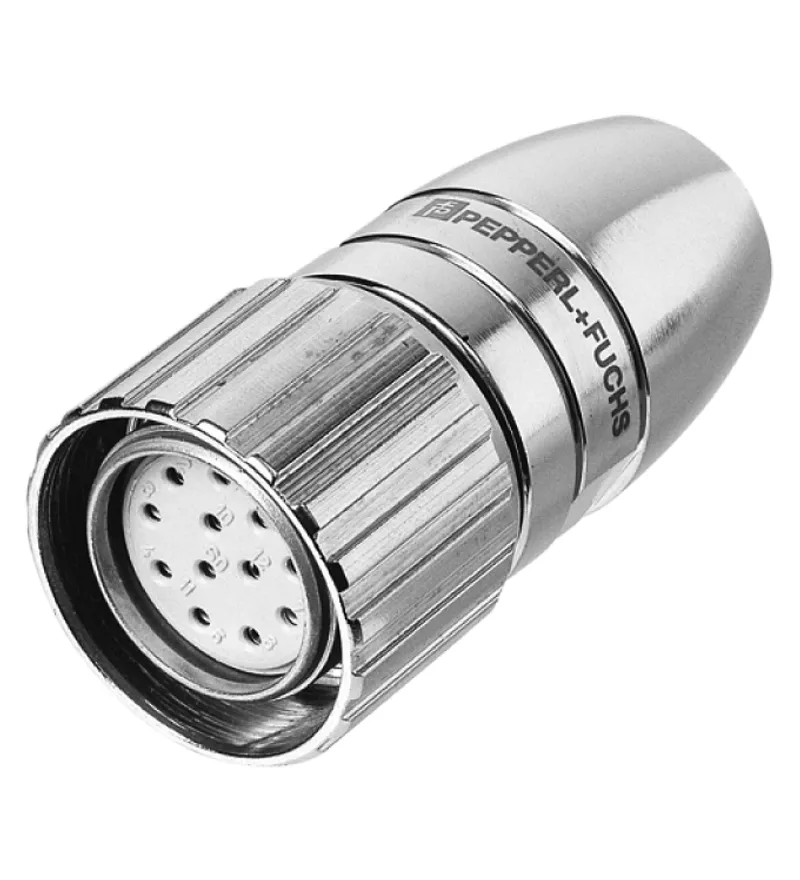

Pepperl Fuchs 9416
Female cordset
- MPN
- 9416
- Category
- Field-Attachable Connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs 9416?
Socket
Straight
12-pin
Right-rotating
Female cordset
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 103947 |
| Number of pins | 12-pin right-rotating |
| Construction type | straight |
| Connection 1 | socket |
| Construction type 1 | straight |
| Threading 1 | M23 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Pollution degree | 3 |
Mechanical specifications
| Connection type | Solder connection |
| Core cross section | 0.08 ... 1 mm2 |
| Cable diameter | 3 ... 10.5 mm |
| Degree of protection | IP67 |
| Mass | 76 g |
| Mating cycles | 50 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

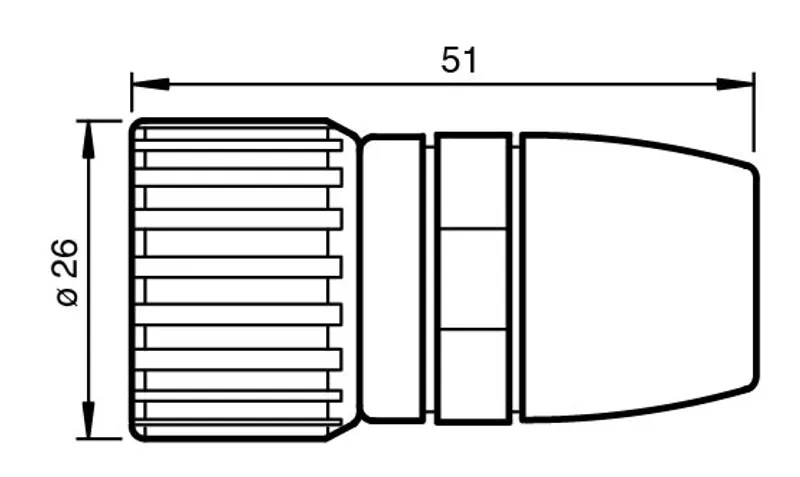

CAD & dimension drawings
9416: frequently asked questions
When can 9416 be shipped?
9416 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 9416 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 9416 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9416, subject to availability and destination.
