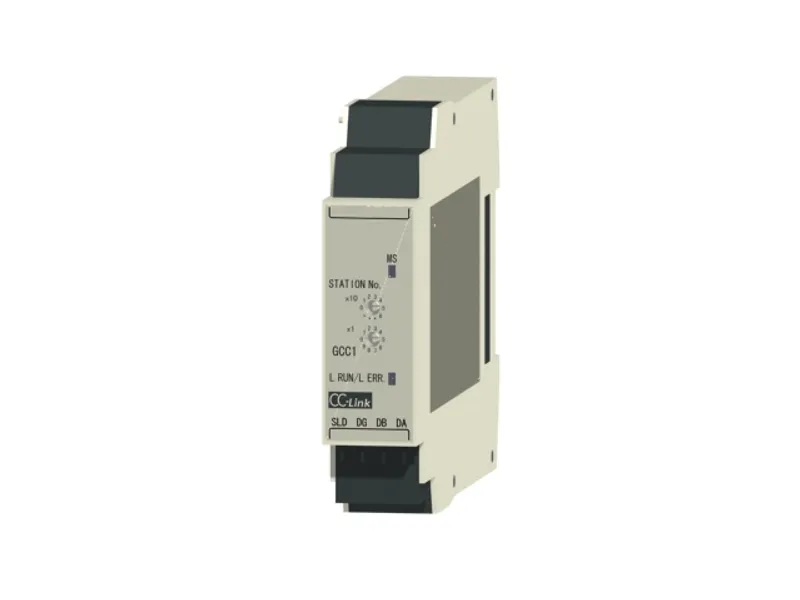

Mitsubishi Electric WS0-GCC100202

Mitsubishi MELSEC-QS/WS Safety Network

MPN
WS0-GCC100202
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric WS0-GCC100202?

The Mitsubishi Electric WS0-GCC100202 is a network in the MELSEC-QS/WS Safety. For CC-Link connection (general communication) Abbreviation: WS0-GCC1 Powered by SICK. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-QS/WS Safety
CategoryNetwork
TypeCC-Link
OutlineFor CC-Link connection (general communication) Abbreviation: WS0-GCC1 Powered by SICK

Specifications

FieldbusCC-Link
Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (autosensing)
Station typeRemote device station (Ver. 1 remote device station)
CC-Link VersionVer.1.10
Number of occupied stations1...4 stations
Protection degreeTerminals: IP 20 (IEC 60529) Housing: IP 40 (IEC 60529)
Electromagnetic compatibilityClass A (IEC 61000-6-2, EN 55011)
Data interfaceBackplane bus (FLEXBUS+)
External dimensions: Height96.5 mm
External dimensions: Width22.5 mm
External dimensions: Depth120.8 mm
Weight120 g
Supply circuit: Supply voltage24 V DC (16.8...30 V DC)
Supply circuit: Power consumption1.4 W

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...70 ˚C
Operating ambient humidity10...95 %RH, non-condensing
Storage ambient humidity10...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass III
