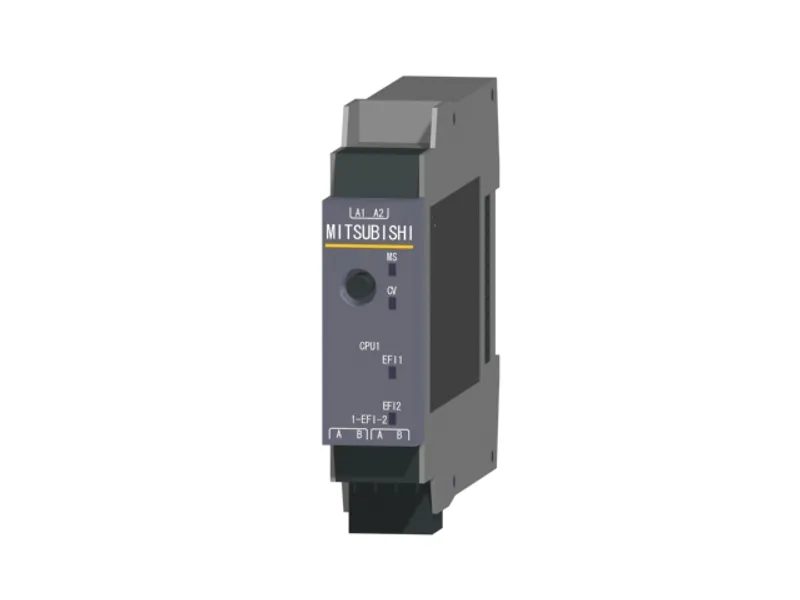

WS0-CPU130202 Mitsubishi MELSEC-QS/WS Safety CPU

MPN: WS0-CPU130202 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-QS/WS Safety – Safety controller
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can WS0-CPU130202 be shipped?

WS0-CPU130202 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WS0-CPU130202 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WS0-CPU130202 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WS0-CPU130202, subject to availability and destination.

The Mitsubishi Electric WS0-CPU130202 is a CPU in the MELSEC-QS/WS Safety. Program size: 255 standard and application-specific logic blocks RS-232 interface EFI (safe communication interface) included Abbreviation: WS0-CPU1 Powered by SICK. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-QS/WS Safety
Category	CPU
Outline	Program size: 255 standard and application-specific logic blocks RS-232 interface EFI (safe communication interface) included Abbreviation: WS0-CPU1 Powered by SICK

Specifications

Safety Integrity Level	SIL3 (IEC 61508, IEC 62061)
Category	Category 4 (EN/ISO 13849-1)
Performance Level	PLe (EN/ISO 13849-1)
PFHd (mean probability of a dangerous failure per hour)	1.69 × 10 -9
TM (mission time)	20 years (EN/ISO 13849-1)
Protection degree	Terminals: IP 20 (IEC 60529) Housing: IP 40 (IEC 60529)
Electromagnetic compatibility	Class A (EN 61000-6-2, EN 61000-6-4)
Number of EFI interfaces	2
Number of Flexi Line interfaces	0
Data interface	Backplane bus (FLEXBUS+)
Configuration interface	RS-232
EFI connection method, Flexi Line connection method	Dual level spring clamp terminals
External dimensions: Height	101.7 mm
External dimensions: Width	22.5 mm
External dimensions: Depth	120.8 mm
Weight	119 g (±5 %)
Power supply (A1, A2) via memory plug WS0-MPL: Supply voltage	24 V DC (16.8...30 VDC)
Power supply (A1, A2) via memory plug WS0-MPL: Type of supply voltage	PELV or SELV The current of the power supply unit for the main module has to be limited to a maximum of 4 A either by the power supply unit itself or by a fuse
Power supply (A1, A2) via memory plug WS0-MPL: Power consumption	Maximum 2.5 W
Power supply (A1, A2) via memory plug WS0-MPL: Switch-on time	Maximum 18 s

Specifications

Operating ambient temperature	-25...55 ˚C
Storage ambient temperature	-25...70 ˚C
Operating ambient humidity	10...95 %RH, non-condensing
Storage ambient humidity	10...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class III

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Safety Controller User's Manual (SH-080855ENG-P)	PDF · 7.01MB
Safety Controller CPU Module User's Manual (Hardware) (IB-0800527ENG-H)	PDF · 0.72MB
Safety Controller Setting and Monitoring Tool Operating Manual (SH-080856ENG-L)	PDF · 15.07MB
