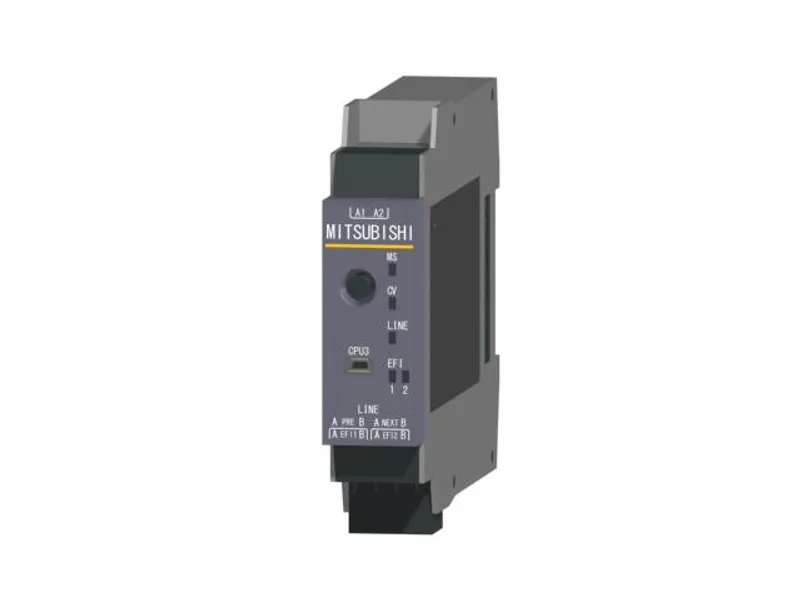

Mitsubishi Electric WS0-CPU320202

Mitsubishi MELSEC-QS/WS Safety CPU

MPN
WS0-CPU320202
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric WS0-CPU320202?

The Mitsubishi Electric WS0-CPU320202 is a CPU in the MELSEC-QS/WS Safety. Program size: 255 standard and application-specific logic blocks USB/RS-232 interface Flexi Line/EFI (safe communication interface) included Abbreviation: WS0-CPU1 Powered by SICK. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-QS/WS Safety
CategoryCPU
OutlineProgram size: 255 standard and application-specific logic blocks USB/RS-232 interface Flexi Line/EFI (safe communication interface) included Abbreviation: WS0-CPU1 Powered by SICK

Specifications

Safety Integrity LevelSIL3 (IEC 61508, IEC 62061)
CategoryCategory 4 (EN/ISO 13849-1)
Performance LevelPLe (EN/ISO 13849-1)
PFHd (mean probability of a dangerous failure per hour)1.69 × 10 -9
PFHd for Flexi Line station0.40×10 –9
TM (mission time)20 years (EN/ISO 13849-1)
Protection degreeTerminals: IP 20 (IEC 60529) Housing: IP 40 (IEC 60529)
Electromagnetic compatibilityClass A (EN 61000-6-2, EN 61000-6-4)
Number of EFI interfaces2
Number of Flexi Line interfaces2
Data interfaceBackplane bus (FLEXBUS+)
Configuration interfaceRS-232, USB2.0 (miniB)
EFI connection method, Flexi Line connection methodDual level spring clamp terminals
External dimensions: Height101.7 mm
External dimensions: Width22.5 mm
External dimensions: Depth120.8 mm
Weight133 g (±5 %)
Power supply (A1, A2) via memory plug WS0-MPL: Supply voltage24 V DC (16.8...30 VDC)
Power supply (A1, A2) via memory plug WS0-MPL: Type of supply voltagePELV or SELV The current of the power supply unit for the main module has to be limited to a maximum of 4 A either by the power supply unit itself or by a fuse
Power supply (A1, A2) via memory plug WS0-MPL: Power consumptionMaximum 2.5 W
Power supply (A1, A2) via memory plug WS0-MPL: Switch-on timeMaximum 18 s

Specifications

Operating ambient temperature-25...55 ˚C
Storage ambient temperature-25...70 ˚C
Operating ambient humidity10...95 %RH, non-condensing
Storage ambient humidity10...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass III
